Professional Manufacturer of T-308X Fusion Splicer Device

Nanjing Tianxingtong Electronic Technology Co., Ltd.
  • Application：Communication, Sensor, Probe
  • Type：Single-mode Fiber
  • Connection Structure：FC-FC
  • Material Shape：Round Wire
  • Certification：CE, ISO9001, SGS
  • Applicable Fibers：Sm, mm, Nz-Ds, Edf, Pigtail, Rubber-Insulated Wire

Base Info

  • Model NO.：T-308X
  • Average Splice Loss：0.02dB(Sm), 0.01dB(mm), 0.04dB(Nzds), 0.04dB(Edf)
  • Return Loss：>60dB
  • Protection Sleeve Length：20mm, 40mm, 60mm
  • Language：Chinese, English
  • Tension Test：2.0n 200GF Standard
  • Weight：2.5kg
  • Transport Package：Carton
  • Specification：CE, SGS, CSI, ISO9000
  • Trademark：skycom
  • Origin：Nanjing, China
  • Production Capacity：500PCS,Month

Description

Basic Info.

Model NO. T-308X Average Splice Loss 0.02dB(Sm), 0.01dB(mm), 0.04dB(Nzds), 0.04dB(Edf) Return Loss >60dB Protection Sleeve Length 20mm, 40mm, 60mm Language Chinese, English Tension Test 2.0n 200GF Standard Weight 2.5kg Transport Package Carton Specification CE, SGS, CSI, ISO9000 Trademark skycom Origin Nanjing, China Production Capacity 500PCS/Month

Product Description

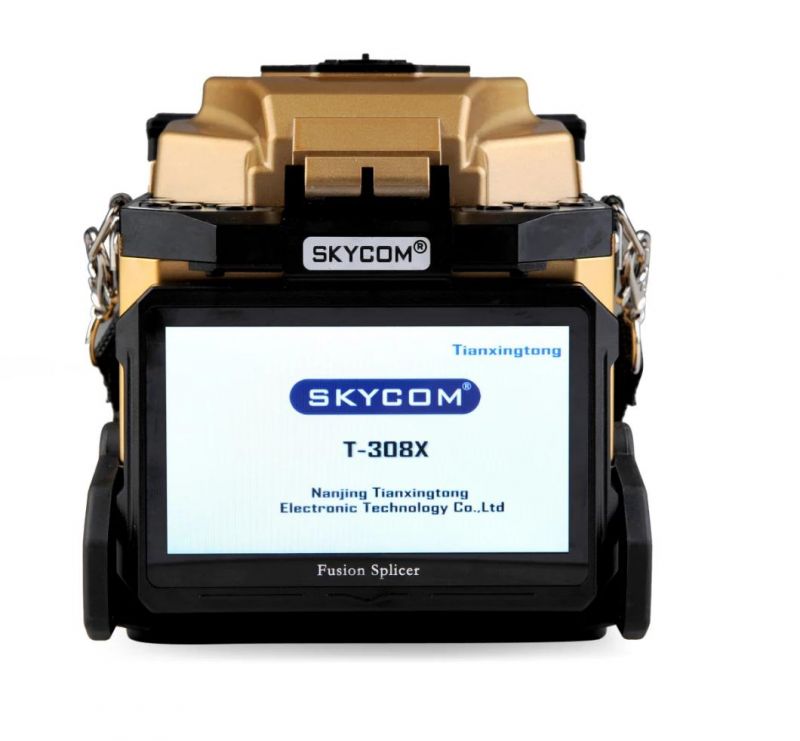

Professional Manufacturer of T-308X Fusion Splicer Device



Main Features:
l 5 inches high Resolution colorful LCD display, image can be turned according to position
l Average splice time: 7 second
l Average tube-heat time: 15 second
l Lithium battery: 8AH and up to 500 times of continuous splice and heat after fully charged
l Simultaneous X and Y views with 220 times magnification
l Cutting-edge technology for image processing
l New developed technology providing strong wind and dust resistance
l Working mode:Auto & Manual & Full-Automation
l USB Port
l Storing 6,000 groups of latest splice results.
l Multipurpose optical fiber fixture can be flexible replaced & Various kinds of joint be produced now
l Convenient clamps shift and joint fabrication on site

Applicable  Fibers
SM,   MM,   NZ-DS,   EDF  AND  OTHERS

Average  Splice  Loss
0.02dB(SM),   0.01dB(MM),   0.04dB(NZDS),   0.04dB(EDF)

Return  Loss
≥ 60dB

Tension  Test
2.0N(200gf) ( Standard )

Splicing  Program
50  groups

Heat-shrinkable  T  Bush
20mm,   40mm,   60mm

Language
Chinese,   English

Environmental  Conditions
-10 ~ +50 ° C (operation  temperature), 0 ~ 95%  RH(humidity),   0 ~ 5000m(altitude)

Power  Supply
AC  adaptor:   100 ~ 240V  input  voltage,     50/60Hz;   12V,   5A  output  voltage(DC)

Battery:   12V  voltage  8AH

Dimensions		120(W)*120(D)*130(H)mm

Weight
1.29kg

 Professional Manufacturer of T-308X Fusion Splicer Device


Standard  Package

No.
Item
Quantity

1
M achine   (T-308)
1

2
Fiber  Cleaver
1

3
Fiber  Stripper
1

4
AC  Adaptor
1

5
Battery
1

6
Charger
1

7
Spare  Electrodes
1

8
Cooling  Tray
1

9
Instruction  CD
1

10
Quick  Reference  Guide
1

11
Transit   Case   with  Carrying  Strap
1
