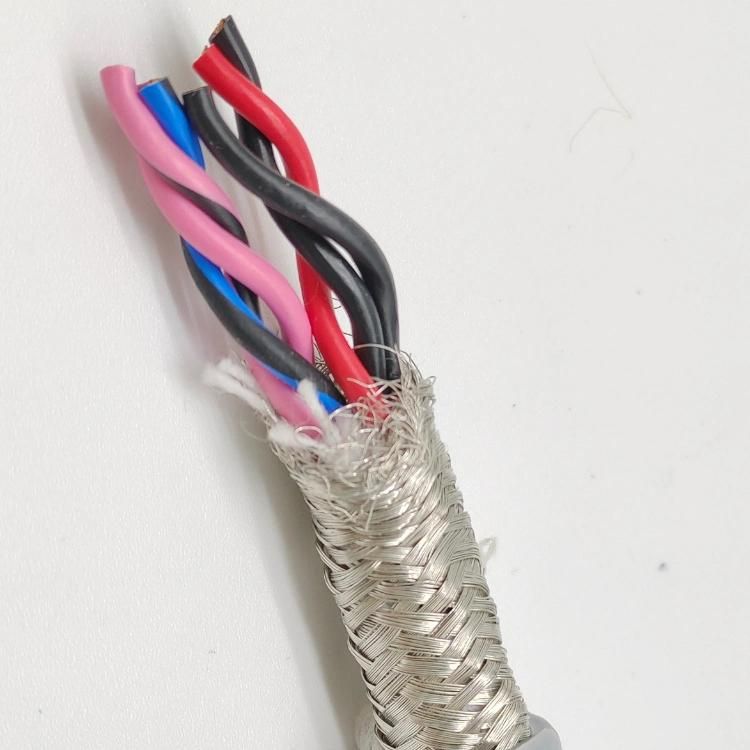

Anf9013 Cable Twisted Pair Double Sheath Shield PUR Towline Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Special Thermoplastic Polyurethane
  • Insulation Material：High Temperature Thermoplastic Compound
  • Material Shape：Round Wire

Base Info

  • Model NO.：ANF9013 Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemANF9013 Cable Twisted Pair Double Sheath Shield PUR Towline CableConductorSolid copper conductorInsulationSpecial modified high temperature thermoplastic compoundInner SheathSpecial modified PVC compound ShieldTinned copper wire braid, coverage rate 80%Outer SheathHigh quality imported special thermoplastic polyurethaneCore NumberMulti-coresOperating VoltageUo/U: 300/300 V & 300/500 VTest voltage1500/2000 V Operating temperature rangeFlexible installations:-40ºC ~ +90ºC
Fixed installations:-50ºC ~ +90ºCColorOptionalApplicationThe cable adopts the core-shield twisted overall shielding structure which can be used for transmission occasions that are easily affected by external high-frequency electric fields. It is suitable for outdoor and indoor occasions in extremely harsh environments. It has good resistance to tearing and abrasion, and good resistance to mineral oil, refrigerant, hydrolysis, and mold.

The mesh-shaped shielding layer composed of high-density and high-conductivity materials, and the use of an extruded inner sheath structure can more effectively fix the position of the core, which can ensure the orderly movement of the core during the reciprocating bending of the cable and increase the bending life. At the same time, it has strong anti-interference ability. It can be used in steel plants, mining machinery, cold outdoor,wet and humid indoor and outdoor environments in the north, energy chains, industrial robots, production lines, automated control systems, and other application requiring high-speed reciprocating movement.
