China Supplier Shielded Anti-Theft 6 X 0, 22 (CU/CCA) Security Alarm Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：Copper
- Cover Material：PVC
- Material Shape：Round Wire
- Conductor Type：Stranded
- Wire Core Material：Bare Copper Wire
Base Info
- Certification：CE, ISO, RoHS
- Color：White
- Inner Conductor：22AWG
- Nom. Od：1.3mm
- Export Length：100m,Roll, 305m,Drum
- Pairs&Core：6 Cores
- Jacket Thickness：0.45mm
- Outer Jacket Diameter：5.2mm
- Transport Package：Carton Box, Pallet
- Specification：6 Core 22 AWG Shielded Solid Conductor
- Trademark：Risun
- Origin：Zhejiang, China
- HS Code：8544491100
- Production Capacity：30000boxes,Month
Description

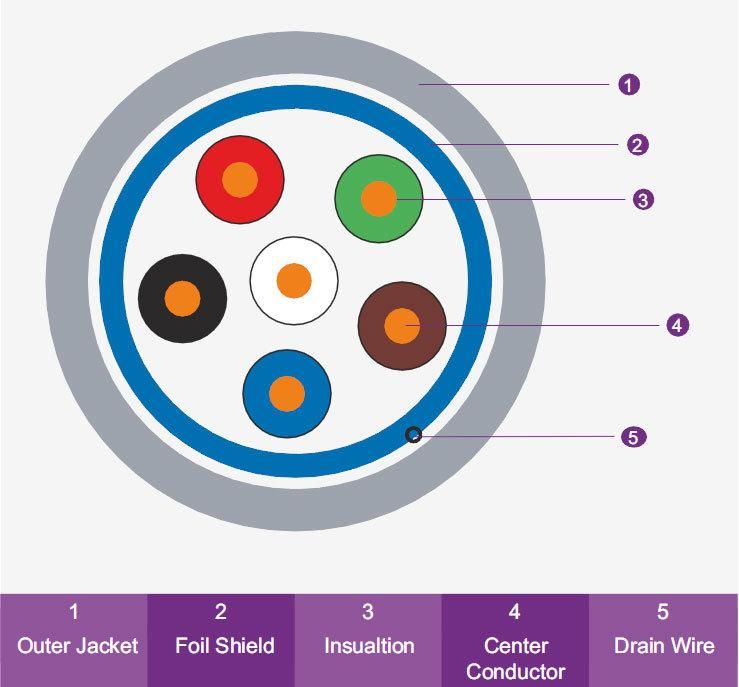

Construction& Physical Characteristics
| Characteristic | Value |
| No.of Conductor | 6 |
| Conductor Size | 22AWG (0.64mm) |
| Insulation Diameter | 1.3 mm |
| Drain Wire Size | 7*0.20 mm |
| Jacket Thickness | 0.45 mm |
| Outer Jacket Diameter | 5.2mm |
| Max. Recommended Pulling Tension | 242N |
Electrical Characteristics
| Characteristic | Unit | Value |
| Nom. Conductor DCR | Ω/Km | 52.8 |
| Nom. Resistance Shield | Ω/Km | 79 |
| Nom. Capacitance conductor to conductor | pF/m | 65 |
| Maximum Operating Voltage | Vrms | 300 |
| Characteristic | Value |
| Test Material | LSZH |
| Before Tensile Strength (Mpa) | ≥ 13.8 |
| Aging Elongation (%) | ≥ 100 |
| After Tensile Strength (Mpa) | ≥ 10.35 |
| Aging Elongation (%) | ≥ 75 |
| Cold Bend (-20±°C x 4 hrs) | No Crack |
Insulation Colour Code
| Individual Pair | Colour |
| Core 1 | Black |
| Core 2 | Red |
| Core 3 | White |
| Core 4 | Green |
| Core 5 | Brown |
| Core 6 | Blue |
Application:

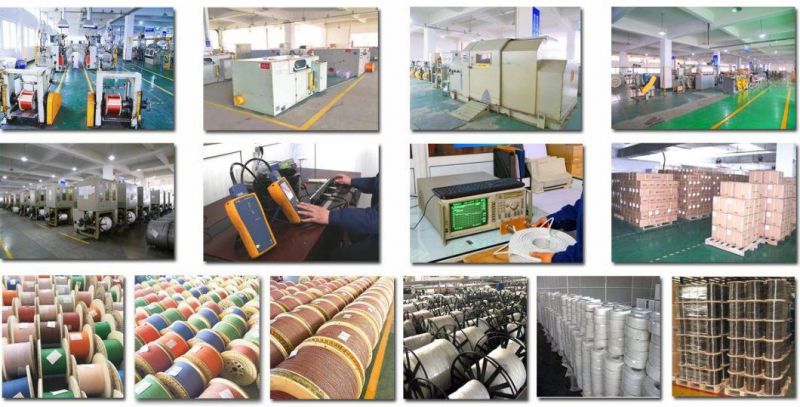

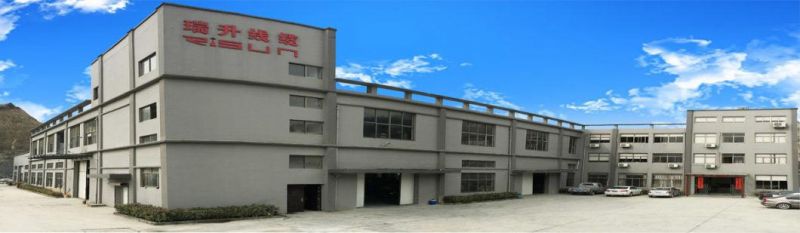

Company Introduction
RISUN is Professional in manufacturing of high quality network cable/lan cable , coaxial cable, telephone wire and alarm cable. We specialize in this field for 15 years, and have already get ETL, CE, RoHS, ISO9001,CPR certification etc.
We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.

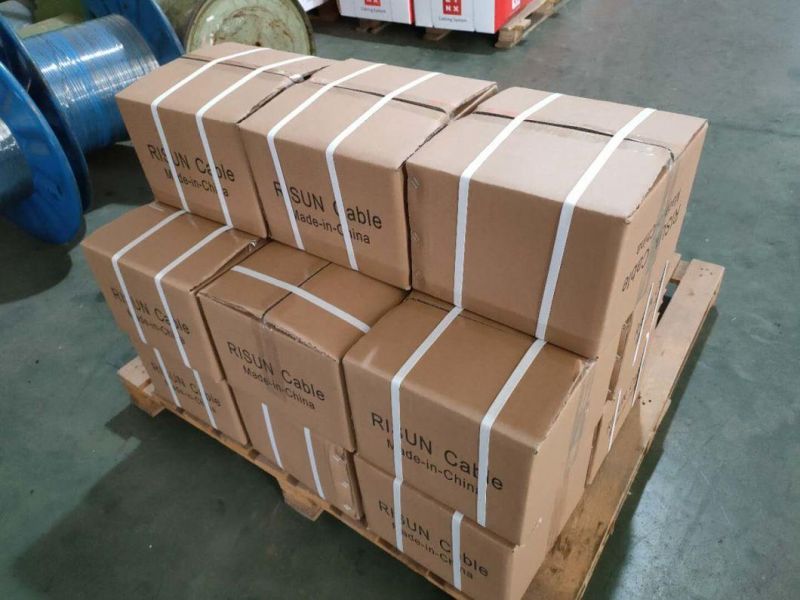

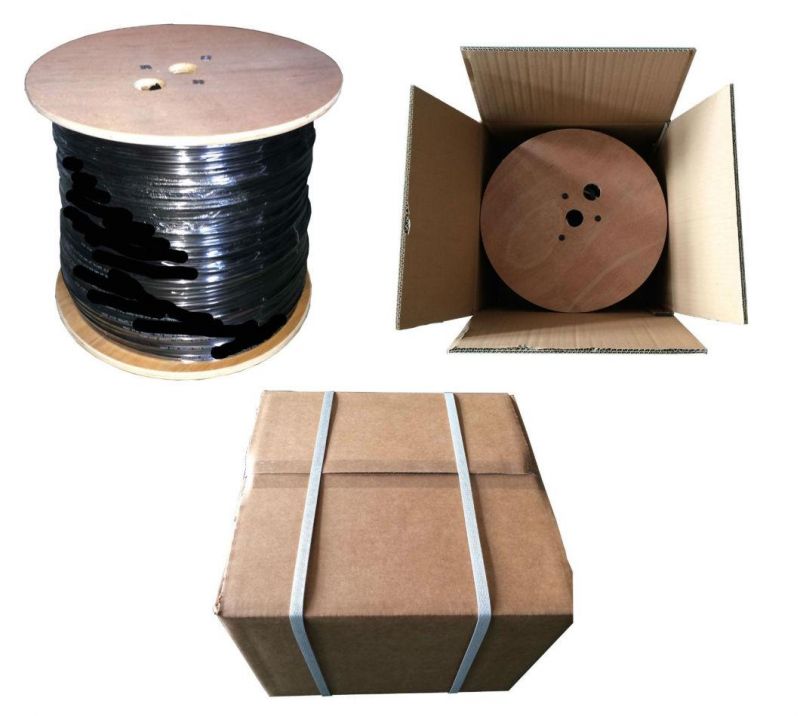

Packing:
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
