• Model NO.：ADSS
• Core：Multicore
• Certification：RoHS, UL, ISO9001, VDE, CCC
• Brand：OEM
• Sheath Material：PE Sheath
• Jacket：Double Jackets Protection
• Tube：Stranded Loose Tube
• Fiber Count：48cores
• Transport Package：Iron Wooden Drum
• Specification：IEEEP1222, SGS, ISO
• Trademark：Powtech
• Origin：Qingdao, China
• HS Code：85477000
• Production Capacity：500km,Month

Basic Info.

Model NO. ADSS Core Multicore Certification RoHS, UL, ISO9001, VDE, CCC Brand OEM Sheath Material PE Sheath Jacket Double Jackets Protection Tube Stranded Loose Tube Fiber Count 48cores Transport Package Iron Wooden Drum Specification IEEEP1222, SGS, ISO Trademark Powtech Origin Qingdao, China HS Code 85477000 Production Capacity 500km/Month

Product Description

ADSS Optical Fibers Cable/ All-Dielectric Self-Supporting Optical Fibers

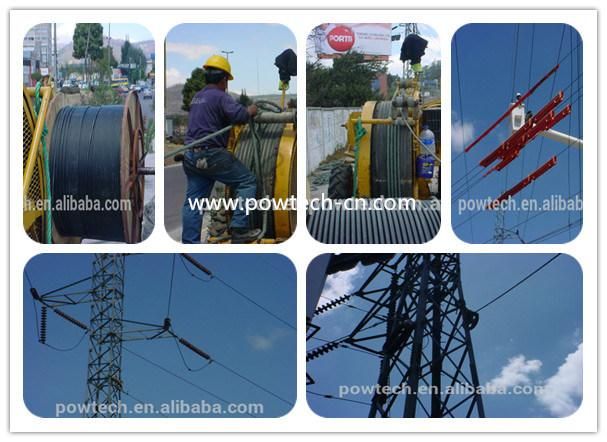

Installation Guide:


Description:
ADSS fiber optic cable is loose tube stranded; The tubes are filled with water resistant filling compound.
The tubes are stranded around fiber reinforced plastic are a non-metallic central strength member into a compact and circular cable core.
After the ADSS cable core is filled with filling compound, it is covered with a thin PE inner sheath, after two layers of Aramid yarns which are applied in two directions over the inner sheath as strength member,
ADSS optical fiber cable is completed with PE or AT outer sheath.

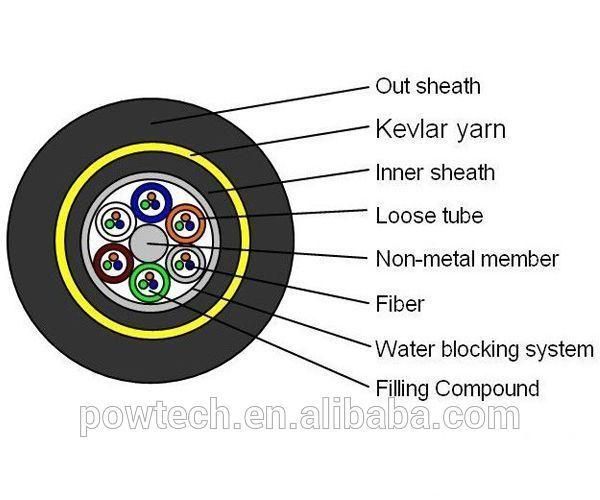

ADSS cable structure
1. Optical fiber cable
2. Fiber jelly
3. PBT loose tube
4. Filling compound
5. Central strength member FRP
6. Filling rope
7. PE inner sheath
8. Aramid yarn
9. Outer sheath

Notes: The use of power corrosion resistant sheaht is depended on power of ADSS optical fiber cable
PE shealth is used when power is less than or equal to 12KV;
Power corrosion resistant sheath (AT sheath) is used when power is more than 12KV.

ADSS Cable laying mode: Self supporting overhead
ADSS Cable operation temperature: -40C~ +65 degreeC

Features:
. Small cable Dia, light weight, 1, 500m span, low attached load on tower.
. Tension strength is over 90KN.
. Non-metal structure, good insulation, anti-thunder.
. Fine production technology, even force for aramid fiber, with superior stress flexibility
. Anti gun fire
. Anti electro-corrosion.
. Adapt for bad climate.
. May construct without power cut, a power line failure doesn't influence cable's normal transfer.
Tension units are elastic modulus aramid fiber.
. Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E) ≤ 25KV/m.
Application:
. Erect on the same pole with power line in new and old power line.
. A long span
. Areas of strong electric field, multi-thunder, etc
Technical data:

Item	ADSS-100M	ADSS-200M	ADSS-400M	ADSS-700M	ADSS-1000M	ADSS-1300M
Max. Span	50m ~ 100m	100m ~ 200m	200 to 400m	500 to 700m	800 to 1000m	1100 to 1300m
RTS	5.0KN	12.0KN	25.0KN	45.0KN	77.5KN	125.0KN
MAT	2.0KN	4.8KN	10.0KN	18.0KN	31.0KN	50.0KN
Fiber	24fiber/48fibe/72fiber	24fiber/48fibe /72fiber	24fiber/48fibe /72fiber	24fiber/48fibe /72fiber	24fiber/48fibe /72fiber	24fiber/48fiber /72fiber
Diameter (mm)	12.1/12.7/14	12.3/12.9/14.1	12.7/13.3/14.5	13.3/13.9/15	14.5/14.9/16	16.2/16.6/17.5
Weight (kg/km)	115/125/150	119/130/155	129/140/164	144/155/179	169/179/203	207/217/240

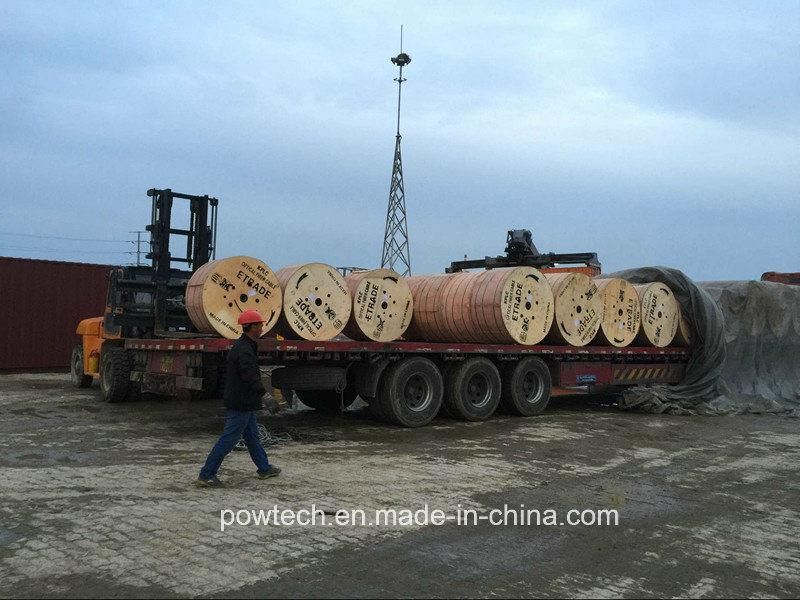

Package&Shipment:
