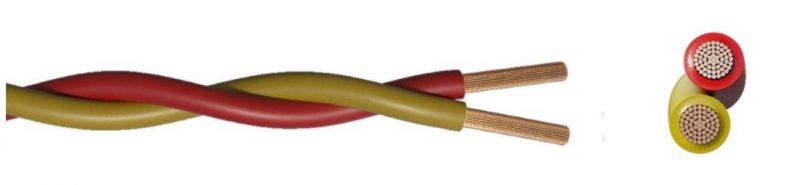

Rvs PVC Insulated Flexible Twin Twisted Electric Wire

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：for Anti-Theft Alarm, Automatic Meter Reading PRO
  • Conductor Material：Copper
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：RVS
  • Range of Application：for Anti-Theft Alarm, Automatic Meter Reading PRO
  • Certification：ISO9001, CE, UL, CCC, RoHS, VDE
  • Brand：Feiya
  • OEM：Yes
  • ODM：Yes
  • Specifications：2 Cores
  • Color：Black and Red,Transparent Golden and Blue
  • Transport Package：Wooden Box Packing or Pallet Shipping Containers
  • Specification：copper
  • Trademark：Feiya
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：80000 Meter,Meters Per Month

Description

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.
Rvs PVC Insulated Flexible Twin Twisted Electric WireRvs PVC Insulated Flexible Twin Twisted Electric WireRVS  PVC insulated twisted -pair flexible wire of 300/300V
Nominal section of
conductor  mm2		20ºC (≤)Ω/km
At 20ºC,conductor
resistance (≤)Ω/km		70ºC≥MΩ.km
At 70ºC ,the Min insulating resis-tance ≥(MΩ.km)		mm
Max OD(MM)		kg/km
Weight referred
kg/km
2×0.539.00.0166.023
2×0.7526.00.0146.230
2×1.019.50.0116.636
2×1.513.30.0107.249
2×2.57.980.0098.276
2×44.950.0079.5114
2×63.300.00611.6174
Rvs PVC Insulated Flexible Twin Twisted Electric WireRvs PVC Insulated Flexible Twin Twisted Electric Wire
Rvs PVC Insulated Flexible Twin Twisted Electric WireRvs PVC Insulated Flexible Twin Twisted Electric WireRvs PVC Insulated Flexible Twin Twisted Electric WireRvs PVC Insulated Flexible Twin Twisted Electric WireRvs PVC Insulated Flexible Twin Twisted Electric Wire
