Hard Polymer Cladding Optical Fiber (HPCF) HP 200/230-37/500e
Zhejiang Fuchunjiang Photoelectric Science Technology Co., Ltd.- Application：Communication, Medicine
- Type：Hard Polymer Cladding Optical Fiber
- Connection Structure：Customized
- Material Shape：Round Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：100N<1000N
Base Info
- Model NO.：HP 200,230-37,500E
- Core：Single Core
- Certification：RoHS, UL, CE, ISO9001, CCC
- Brand：Fcj Opto Tech
- Sheath Material：ETFE or Acrylate
- Core Material：Pure Silica Glass,Doped Silica Glass
- Cladding Material：Fluoroacrylate
- Coating Material：ETFE or Acrylate
- Oh Content：Low Oh
- Transport Package：Carton
- Specification：1km, 2km
- Trademark：FCJ OPTO TECH
- Origin：China
- HS Code：8544700000
- Production Capacity：20 Million Kilometers
Description
Material CompositionCore Material Pure Silica Glass Pure Silica Glass Pure Silica Glass Cladding Material Fluoroacrylate Fluoroacrylate Fluoroacrylate Coating Material ETFE ETFE ETFE Mechanical Properties Short Term Bend
Radius(mm) ≥58 ≥58 ≥73 Long erm Bend
Radius(mm) ≥94 ≥94 ≥118 Operating Temperature
(ºC) -65 to +85 -65 to +85 -65 to +85 Proof Test Level(kpsi) 75 75 85
Packaging and storage
Radius(mm)
Radius(mm)
(ºC)
Packaging and storage
- Ensure no foreign matter on the reel and fiber surface, wrap it with film and cover, and label fiber coding on the reel and cover respectively.

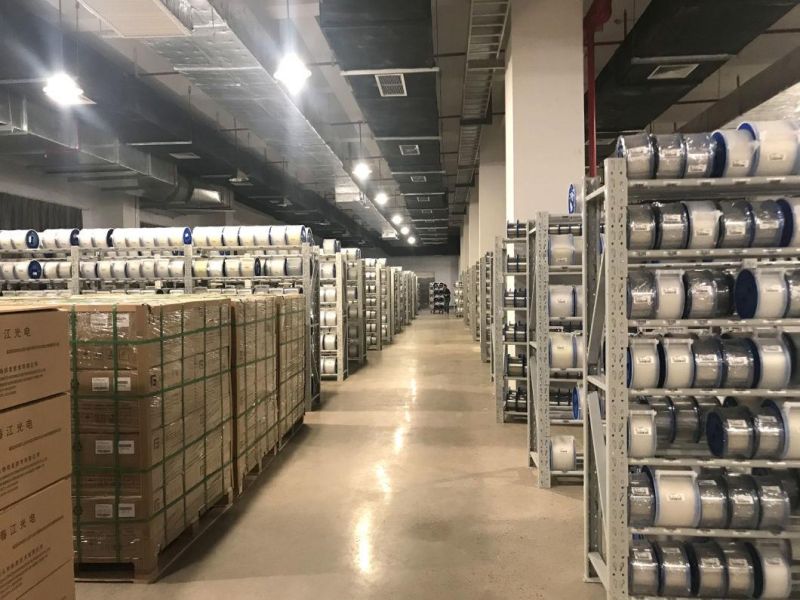

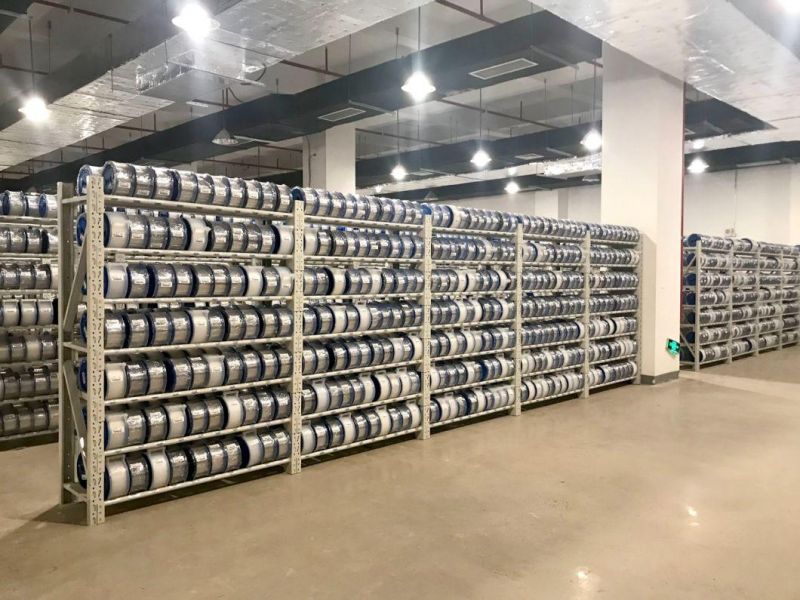

- The packaged optical fiber is stored at a constant temperature of 25ºC in a light-proof warehouse. The products are fixed in the carton when they are shipped out of the warehouse. The carton number and fiber coding information are attached to the carton, and the electronic test report is attached to each shipment.
