Underground Power Cable Conductor Aluminio Subterraneo 70mm2 120mm2 240mm2 25kv

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：cable aluminio subterraneo
  • Wire Core Material：Aluminum
  • Certification：ISO, CCC, SGS
  • Model：Aluminum Cable
  • Brand：Hongda
  • Insulation Level：100% Insulation Level
  • Transport Package：1000m Per Drum
  • Specification：120mm2 to 630mm2
  • Trademark：Hongda
  • Origin：China
  • HS Code：8544601200
  • Production Capacity：300km,Month

Description

1. Conductor:1350 hard aluminum compact class B, blocked at the longitudinal passage of water by means of blocking wires.2. Semiconductor display on the conductor:Thermoset extruded semiconductor compound.3. Insulation:XLPE-TR (Tree retardant).4. Semiconductor screen over insulation:Thermoset extruded semiconductor compound, with adequate adhesion to the insulation, which makes it easier to remove the screen.5. Semiconductor W / B Tape:Applied helically under the electrostatic shield, avoiding transverse penetration of moisture (They only correspond to the wet wires in case as required).6. Metal shield:Bare copper wires smoothly applied helically. .7. Nonconductive W / B Strap:Applied helically on the electrostatic screen, avoiding transverse penetration of moisture (They only correspond to the wet wires in case as required).8. Exterior cover:PVC cover red color or high density polyethylene (HDPE) extruded with three red stripes, with excellent properties mechanical and chemical.
Applications
These cables are for use in environments mainly moist and are used preferably in distribution networks of urban energy. They are suitable for installed directly buried, in trenches, in ducts, ladders or electric pipes.

cable conductor aluminio subterraneo 70mm2 120mm2 240mm2 25kv
 SectionStrandsTensionUnits per rollPackaging120mm219H25kV1000mReel240mm237H25kV1000mReel400mm261H25kV500mReel630mm261H25kV500mReel


Packaging

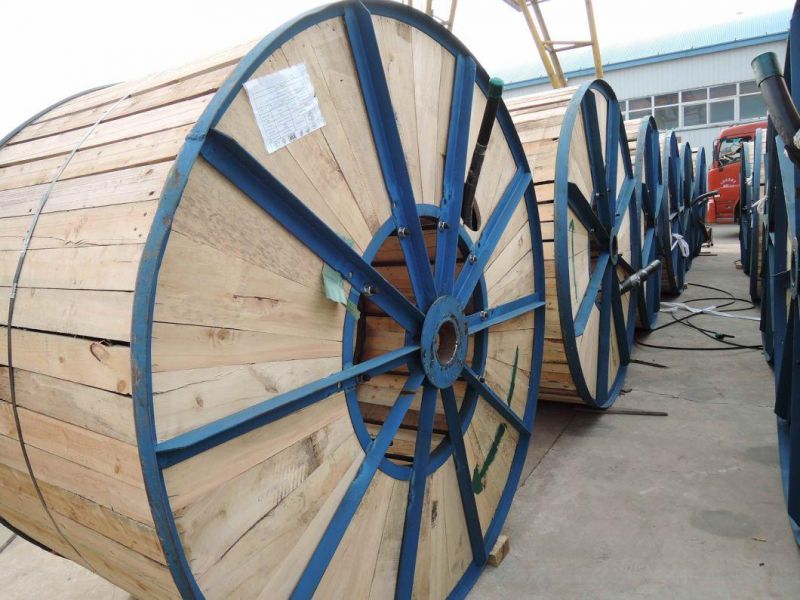

On non-returnable wooden spools of 1000m.
Tolerance in the length of ± 5%. (It can deliver in different tranches)

Underground Power Cable Conductor Aluminio Subterraneo 70mm2 120mm2 240mm2 25kv

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact Vivian Yuan  we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
