PVC Insulated Single Core Wire H05g-U/H07g-U/R Electrical Wire with Copper Conductor for The Intenal Wiring of Devices
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Application：Overhead, Underground
- Conductor Material：Copper
- Insulation Material：PVC
- Material Shape：Round Wire
- Range of Application：Flame Retardant
Base Info
- Model NO.：H05g-U,H07g-U,R
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- Color：Black Red Yellow, According to Voltage Level
- Whether It Is Environmentally Friendly：Yes
- Whether Quality Inspection：Provide Inspection Certificate
- Standard：Customized According to Specified National Standar
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Transport Package：Standard Export Packaging
- Specification：International General Specifications
- Trademark：Fengda
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：100000,Day
Description
Application:
These cables are designed for the intenal wiring of devices, distributor and switchboards and also for protective laying to the lightings, suitable for laying in tubes, under and surface mounting of plasters and also in closed installation conduits.
Technical Characteristics:
-Working voltage: 300/500v (H05G-U), 450/750v (H07G-U/R)
- Test voltage: 2000volts (H05G-U), 2500 volts (H07G-U/R)
- Flexing bending radius: 7 x Ø
- Static bending radius: 7 x Ø
- Flexing temperature: -25º C to +110º C
- Static temperature: -40º C to +110º C
- Short circuit Temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 10 MΩ x km

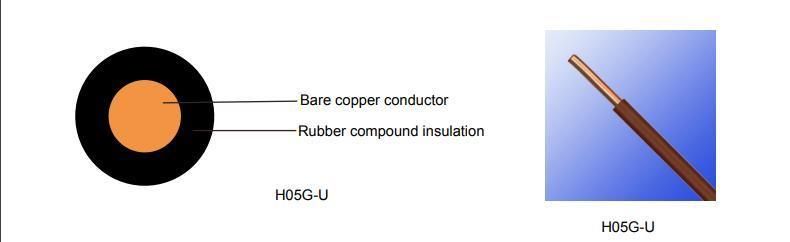

Cable Construction
- Solid bare copper / strands
- Strands to VDE-0295 Class
-1/2, IEC 60228 Class-1/2
- Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7 insulation
- Cores to VDE-0293 colors
