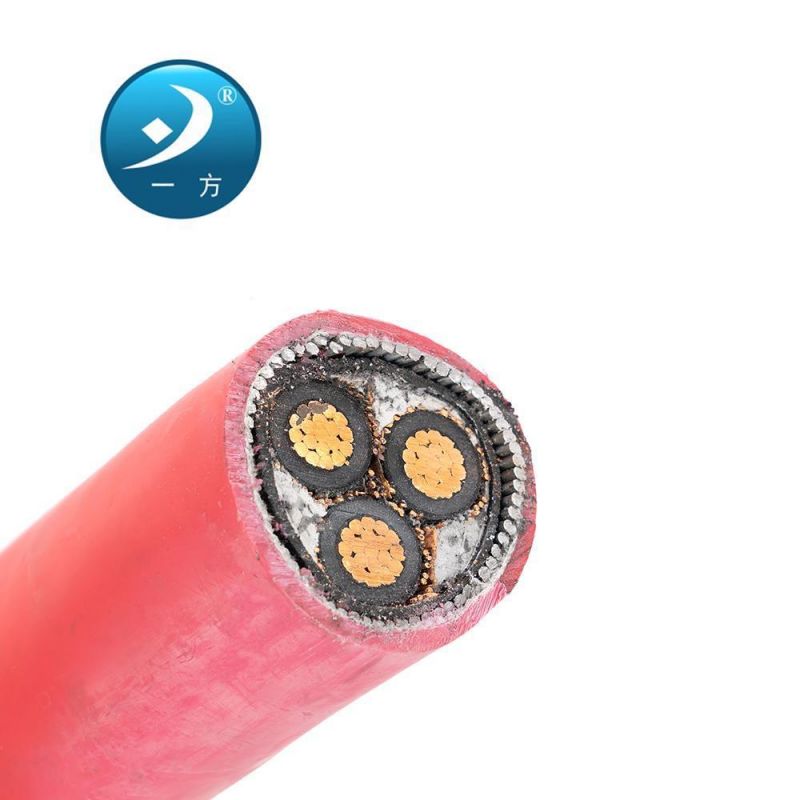

Mv Copper Conductor, XLPE Insulated, Armoured, PVC Sheathed Power Cable Underground 5kv/8kv /11kv/22kv/33kv/35kv Medium Cables
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC or PE or Other Types
- Material Shape：Round or Sector
Base Info
- Model NO.：YJV
- Wire Core Material：Copper or Aluminum
- Certification：ISO, CE
- Model：YJV
- Brand：Yifang
- Product Name：XLPE Insulated,Armoured,PVC Sheathed Cable
- Transport Package：Drum, Reel or According to Your Request
- Specification：IEC, BS, DIN, ASTM, NFC, JIS etc
- Trademark：Yifang
- Origin：Zhengzhou, Henan, China
- HS Code：8544492100
- Production Capacity：50, 000km Per Month
Description
Nominal Cross Section mm 2Main cores 2.5 4 6 10 16 25 35 50 Neutral cores 1.5 2.5 4 6 10 16 16 25 Nominal Cross Section mm 2 Main cores 70 95 120 150 185 240 300 400 Neutral cores 35 50 70 70 95 120 150 185 Class 2 stranded conductors for single-core and multi-core cables 1 2 3 4 5 6 7 8 9 10 Nominal crosssectional area Minimum number of wires in the conductor Maximum resistance of conductor at 20ºC Circular Circular compacted Shaped Annealed copper conductor Aluminium or aluminium alloy conductor Cu Al Cu Al Cu Al Plain wires Metal-coated wires mm2 Ω/KM Ω/KM Ω/KM 0.5 7 36 36.7 0.75 7 24.5 24.8 1 7 18.1 18.2 1.5 7 6 12.1 12.2 2.5 7 6 7.41 7.58 4 7 6 4.61 4.7 6 7 6 3.08 3.11 10 7 7 6 6 1.83 1.84 3.08 16 7 7 6 6 1.15 1.16 1.91 25 7 7 6 6 6 6 0.727 0.734 1.2 35 7 7 6 6 6 6 0.524 0.529 0.868 50 19 19 6 6 6 6 0.387 0.391 0.641 70 19 19 12 12 12 12 0.268 0.27 0.443 95 19 19 15 15 15 15 0.193 0.195 0.32 120 37 37 18 15 18 15 0.153 0.154 0.253 150 37 37 18 15 18 15 0.124 0.126 0.206 185 37 37 30 30 30 30 0.0991 0.1 0.164 240 37 37 34 30 34 30 0.0754 0.0762 0.125 300 61 61 34 30 34 30 0.0601 0.0607 0.1 400 61 61 53 53 53 53 0.047 0.0475 0.0778 500 61 61 53 53 53 53 0.0368 0.0369 0.0605 630 91 91 53 53 53 53 0.0283 0.0286 0.0469 800 91 91 53 53 0.0221 0.0224 0.0367 1000 91 91 53 53 0.0176 0.0177 0.0291

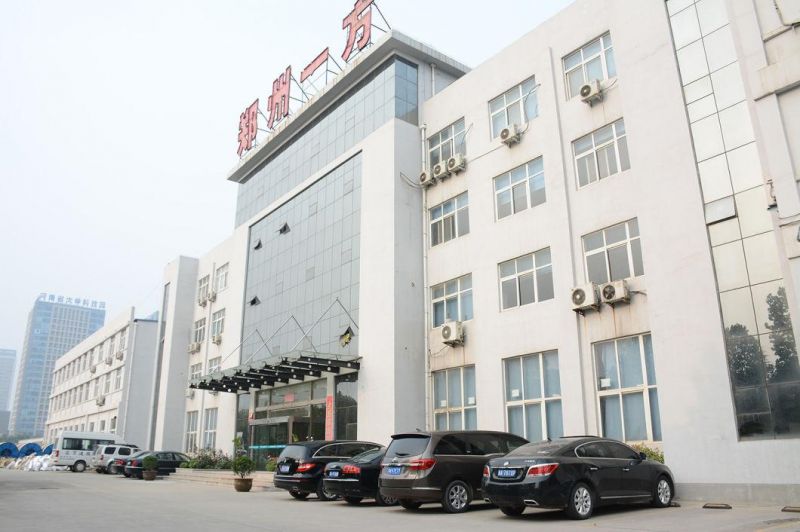

Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.

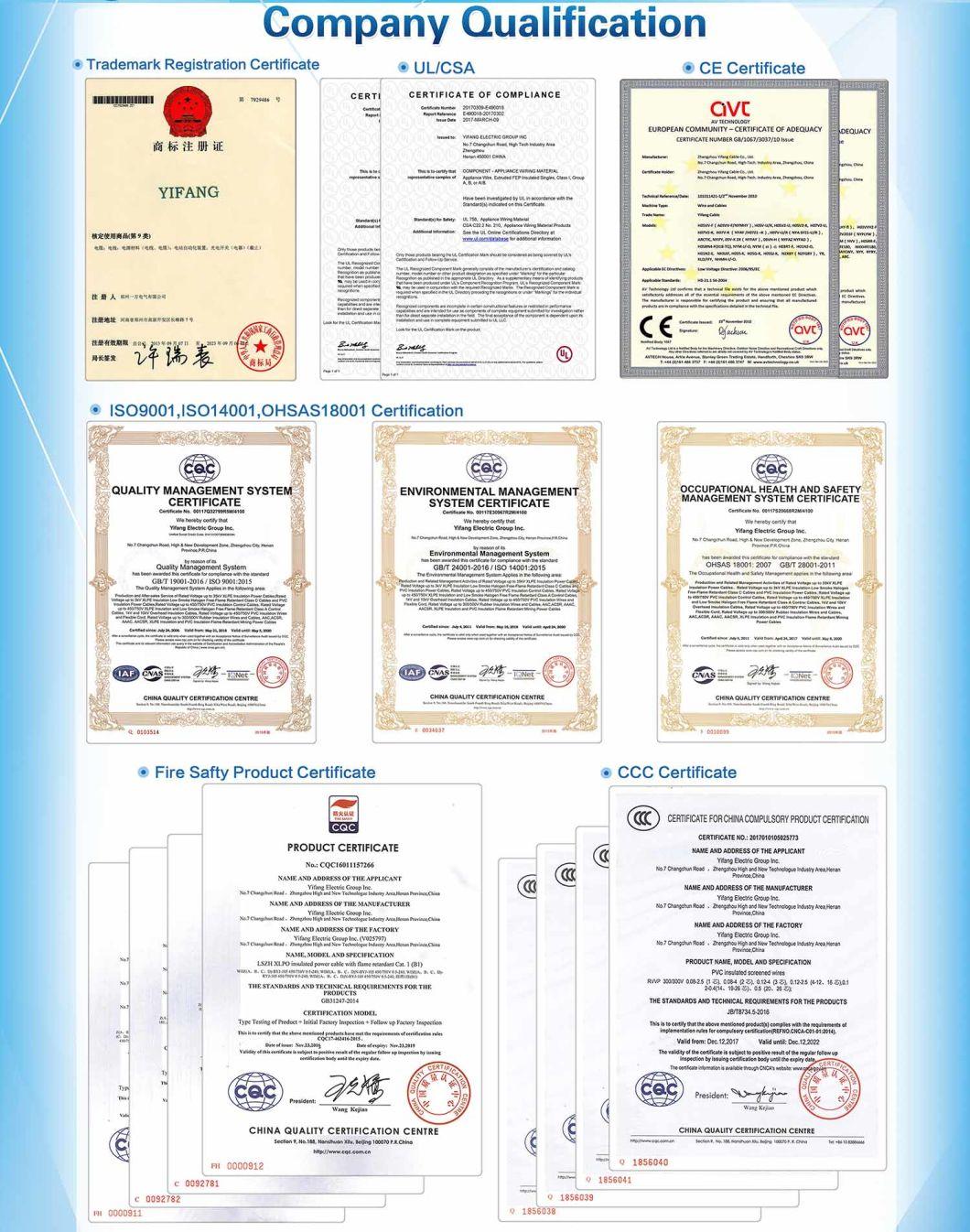

Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
| Nominal Cross Section mm 2 | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 25 |
| Cu core Ohm/km | 12.1 | 7.41 | 4.61 | 3.08 | 1.83 | 1.15 | 0.727 |
| Al core Ohm/km | 18.1 | 12.1 | 7.41 | 4.61 | 3.08 | 1.91 | 1.2 |
| Nominal Cross Section mm 2 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Cu core Ohm/km | 0.524 | 0.387 | 0.268 | 0.193 | 0.153 | 0.124 | 0.0991 |
| Al core Ohm/km | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 | 0.164 |
| Nominal Cross Section mm 2 | 240 | 300 | 400 | 500 | 630 | 800 | 1000 |
| Cu core Ohm/km | 0.0754 | 0.06 | 0.047 | 0.0366 | 0.0283 | 0.0221 | 0.0176 |
| Al core Ohm/km | 0.125 | 0.1 | 0.0778 | 0.0605 | 0.0469 | 0.0367 | 0.0291 |
Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
