• Model NO.：RG6
• Wire Core Material：Bare Copper,Aluninum Wire,Tinned Copper Wire
• Certification：CE, ISO, RoHS, ETL
• Model：RG6
• Brand：Libo or OEM
• Coverage：65% or According to The Clients′ Request
• Jacket：PE or PVC
• Messenger：Avalable
• Transport Package：100,200m,305,1000FT, According to Client′s Reque
• Specification：RG6
• Trademark：LIBO or OEM
• Origin：China
• HS Code：854420000
• Production Capacity：12000km Per Month

Quad-Shield Rg6 Coaxial Cable Flame Retardant PVC Jacket for CCTV / CATV

• Flame Retardant RG6 Coaxial Cable
• 18AWG CCS
• Virgin grade polyethylene insulation
• Bonded aluminum foil
• Tri-shield
• Flame retardant PVC jacket

Applications:

RG6 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

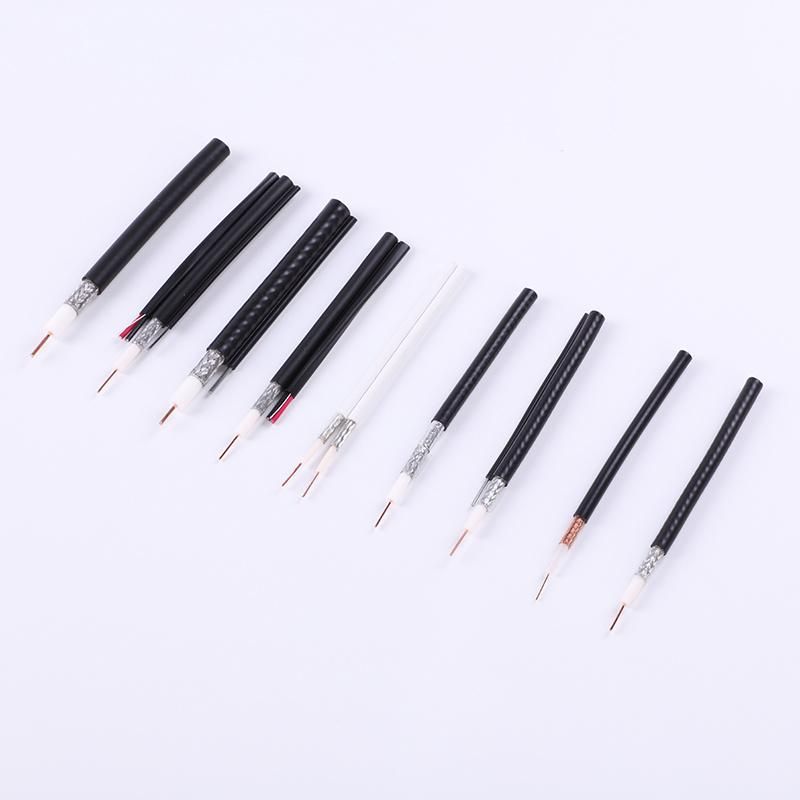

Product description:

21% conductivity copper clad steel (21%CCS).

Dielectric core is insulating grade virgin polyethylene.

The 1^stshield is bonded laminated aluminum tape,

the 2^nd shield is 0.12x64 braid,

the third shield is normal aluminum foil,

the 4^th shield is 0.12x 48 braid.

The jacket is flame retardant PVC.

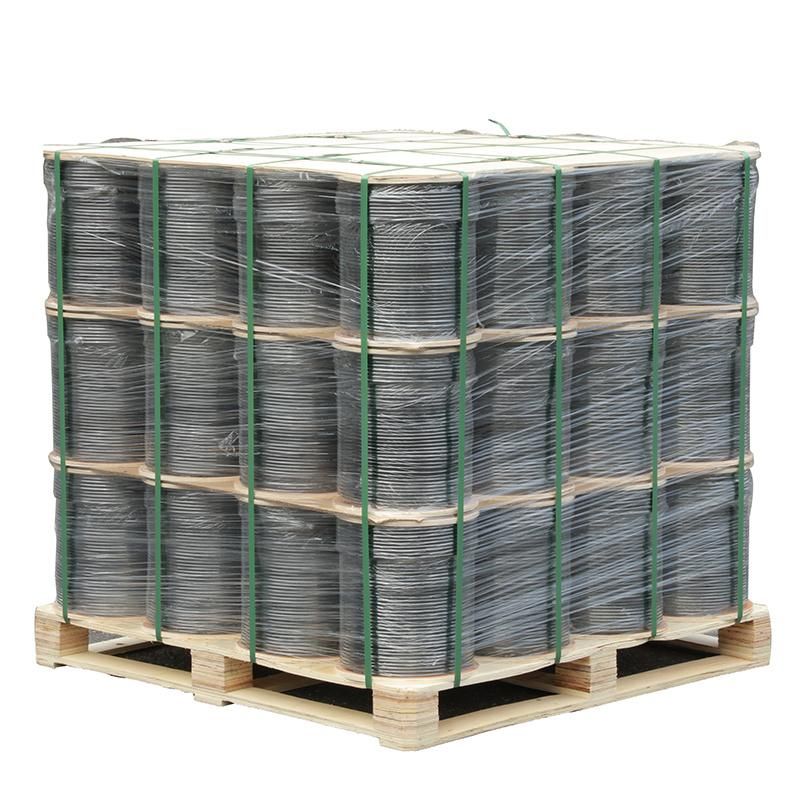

Packing:

We provide buyer's label OEM/ODM design service.

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 82% nominal

Attenuation@ 68^OF(20^oC):

@Frequency MHZ

dB/100 meters(MAX.)

5

2.66

55

5.25

211

10.10

250

11.25

270

11.48

300

12.14

330

12.76

350

13.15

400

14.11

450

15.03

500

15.93

550

16.70

600

17.77

750

19.69

870

21.33

1000

22.97

Competitive Advantage:

• RG6 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
• RG6 is of low cost, and it is easy to install as well.

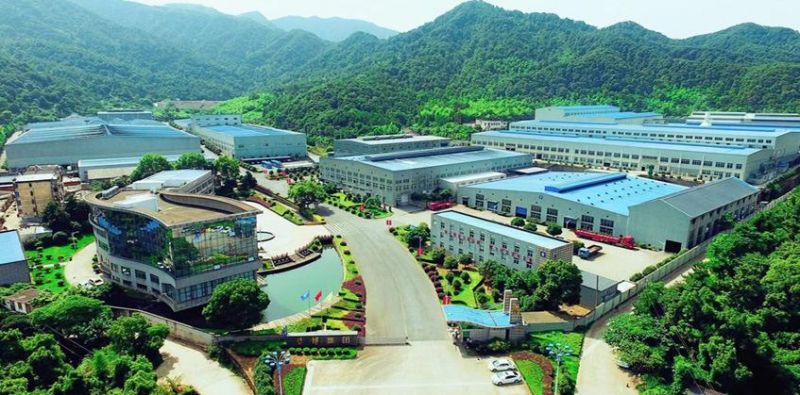

• Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.

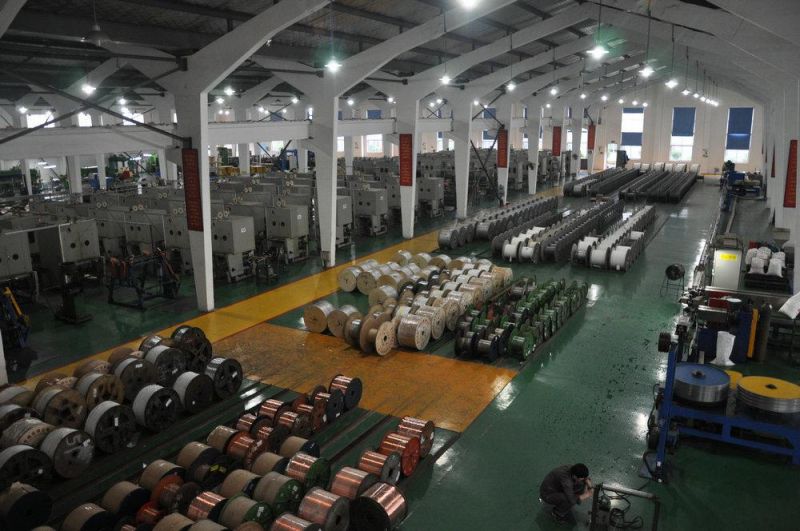

• Libo cable has a stable workforce and engineering team, normal lead-time of 40'FCL quad-shield RG 6 cable is about 7 days.
• Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
