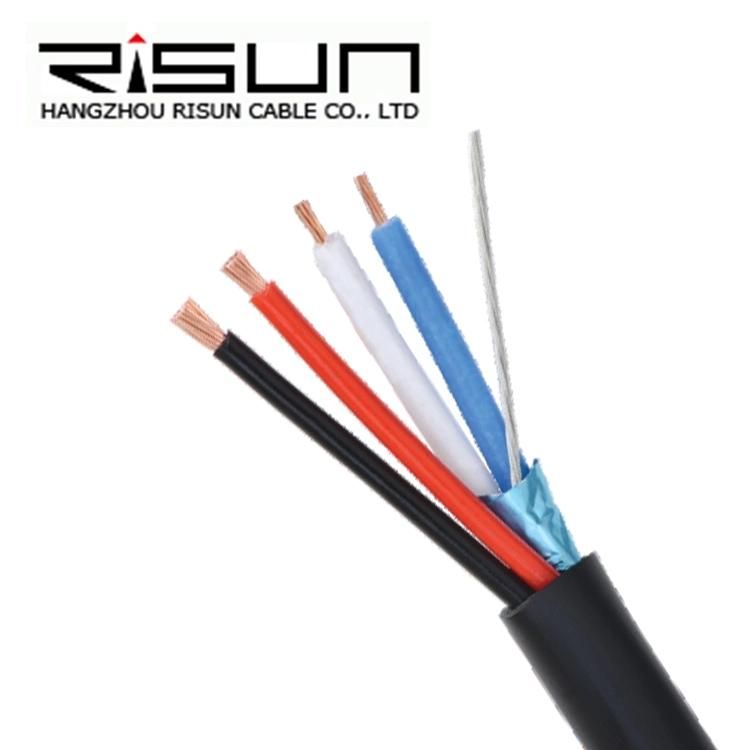

1 Pair 24 AWG & 2 Core 20 AWG Multimedia Control Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Bus Cable
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Wire Core Material：Tinned Wire
- Certification：CE, ISO, RoHS
- Color：Blue ,White,Red , Black
- Inner Conductor：22AWG &18AWG
- Nom. Thick：1.1mm&1.52mm
- Export Length：100m,Roll, 305m,Drum
- Pairs：2 Pairs
- Ripcord：Yes
- Outer Jacket Material：Fr-PVC,LSZH
- Outer Jacket Diameter：4.8
- Transport Package：Carton Box, Pallet
- Specification：2*7*0.20mm+2*16*0.20mm TC PVC
- Trademark：Risun
- Origin：Zhejiang, China
- HS Code：8544491100
- Production Capacity：30000boxes,Month
Description
FR PVC (Flame Retardant Polyvinyl chloride)

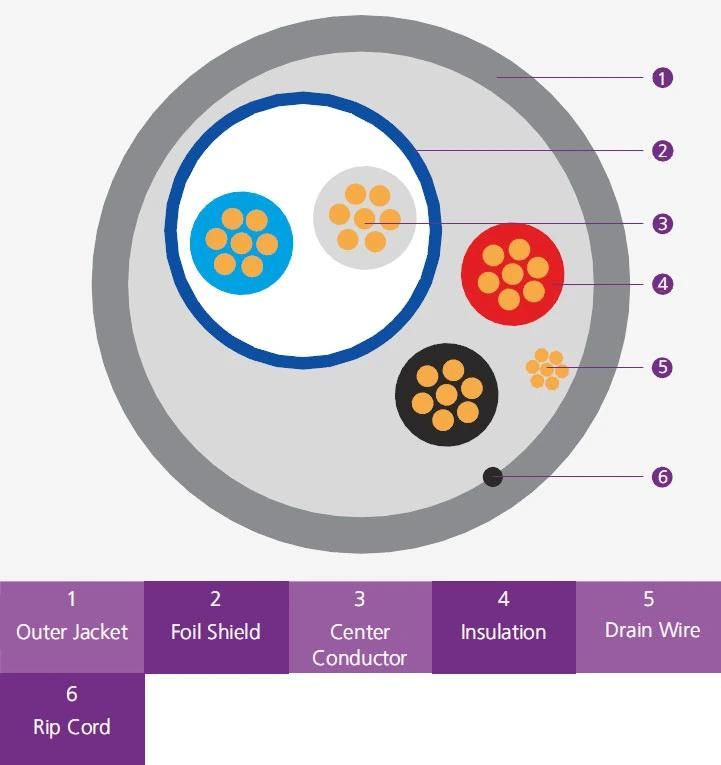

Construction & Physical Characteristics
| Characteristic | Value |
| Conductor Material | Tinned Copper |
| Conductor Size (Paired) | 24AWG,7*32AWG(0.2mm) |
| Conductor Size(core) | 20AWG,16*32AWG(0.2mm) |
| Insulation Material(24AWG*(0.60mm) | HDPE(High Density Foam Polyethylene) |
| Insulation Material Thickness(24AWG*(0.60mm) | 0.25mm |
| Insulation Material(20AWG*(0.92mm) | FR-PVC(Flame Retardant Polyvinyl Chloride) |
| Insulation Material Thickness(20AWG*(0.92mm) | 0.30mm |
| Insulation Material(24AWG*(0.60mm) | 100% Aluminum Foil-Polyester Tape |
| Drain Wire Material | Tinned Copper |
| Drain Wire Size | 24AWG,7*32AWG(0.22mm) |
| Outer Jacket Material | FR-PVC/LSZH |
| Ripcord | Yes |
| Outer Jacket Diameter | 4.8mm |

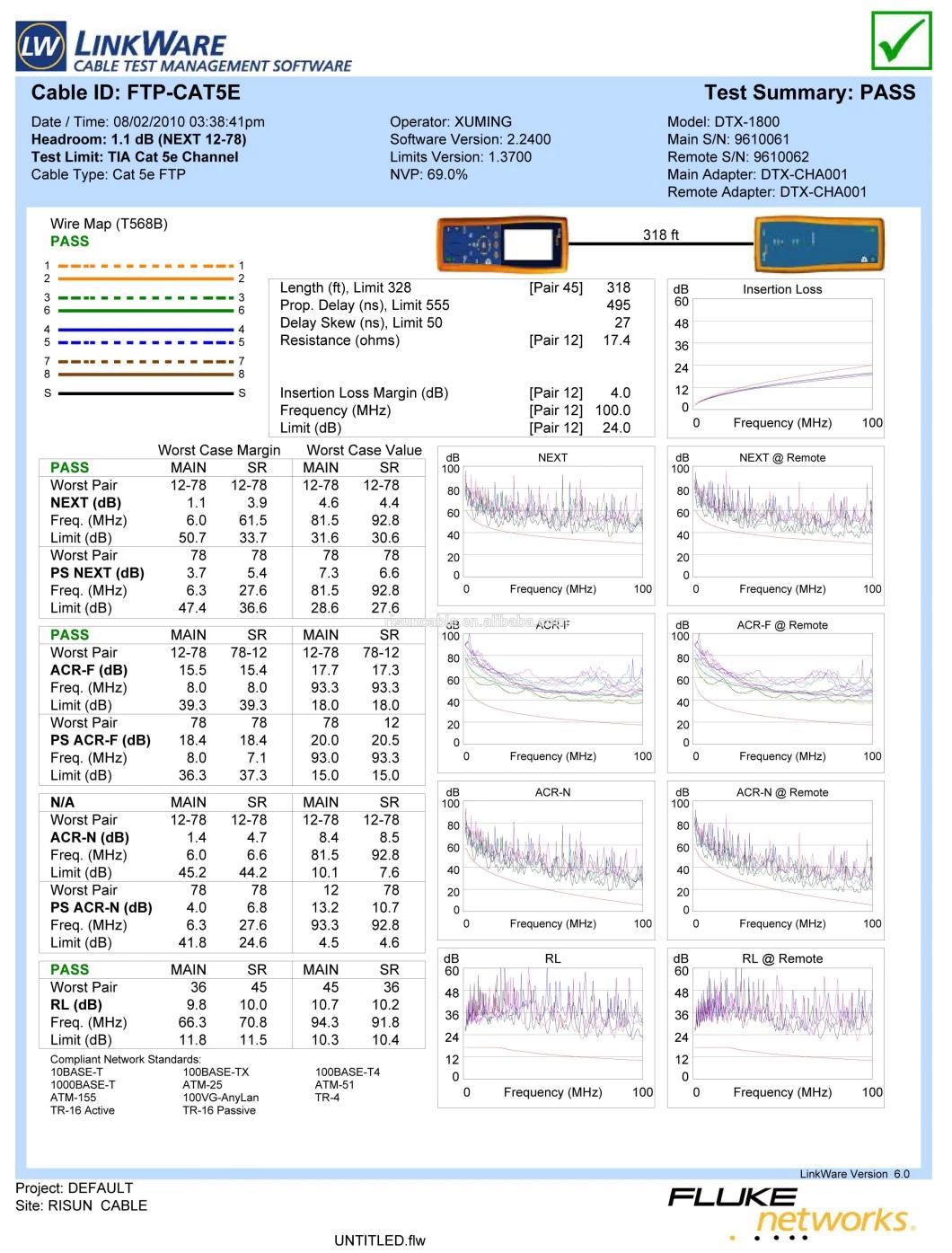

Electrical & Mechanical Characteristics
| Characteristic | Unit | Value |
| Nom.Characteristic Impedance(22AWG) | Ω | 100 |
| Nom.Inductance(22AWG) | mH/m | 0.75 |
| Nom.Inductance(18AWG) | mH/m | 0.55 |
| Nom.Capacitance Cond.to Cond.(22AWG) | pF/m | 46.6 |
| Nom.Capacitance Cond.to Cond.(18AWG) | pF/m | 96.6 |
| No.Capacitance Cond.to other Cond&Shield(22AWG) | pF/m | 126.6 |
| Nom. Conductor DC Resistance @ 20ºC (22 AWG) | Ω/Km | 53.62 |
| Nom. Conductor DC Resistance @ 20ºC (18AWG) | Ω/Km | 22.69 |
| Maximum Operating Voltage | Vrms | 300 |
| Max. Recommended Current @ 25ºC (22 AWG) | Amps | 3.8 |
| Max. Recommended Current @ 25ºC (18 AWG) | Amps | 7.2 |
| Minimum Bend Radius | mm | 63.5 |
| Max. Recommended Pulling Tension | N | 27.12 |
| Operating Temperature | ºC | -20 to +75 |
Electrical & Mechanical Characteristics
| Individual Pair | Colour |
| Core1 | Blue and White |
| Core2 | Red and Black |

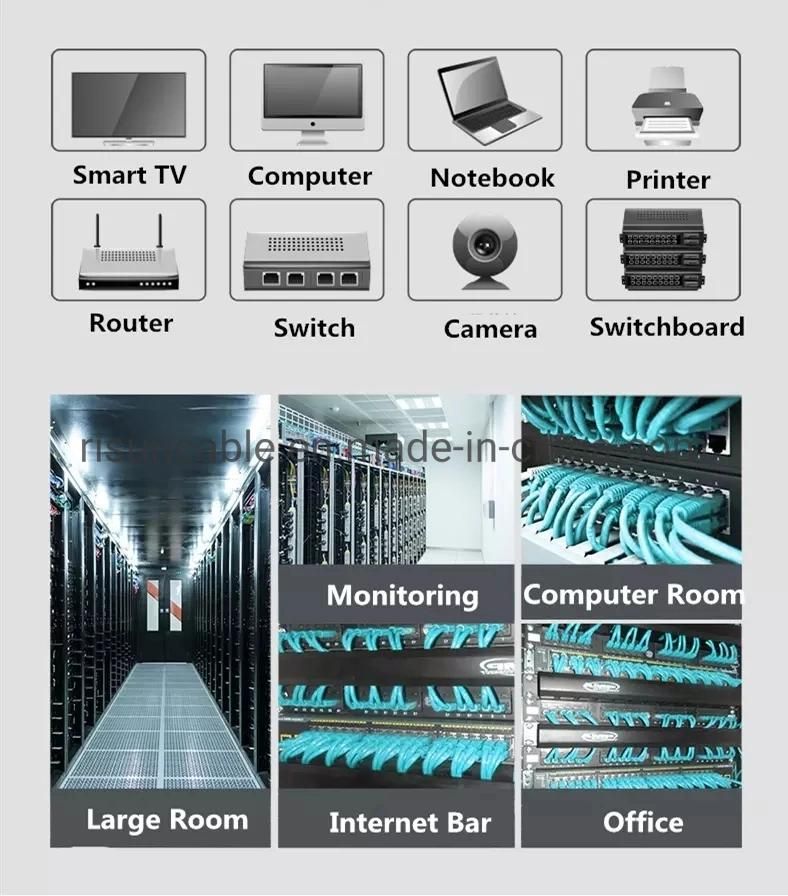

Application:

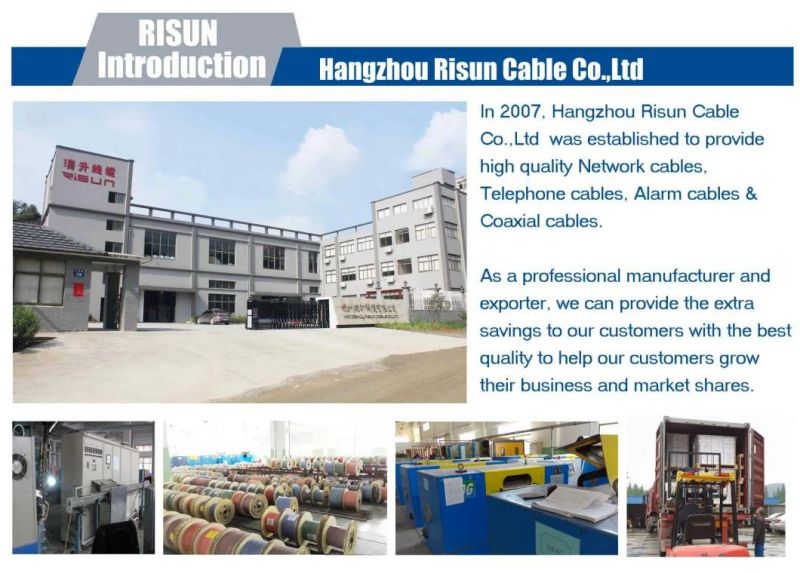

Company Introduction
Packing:

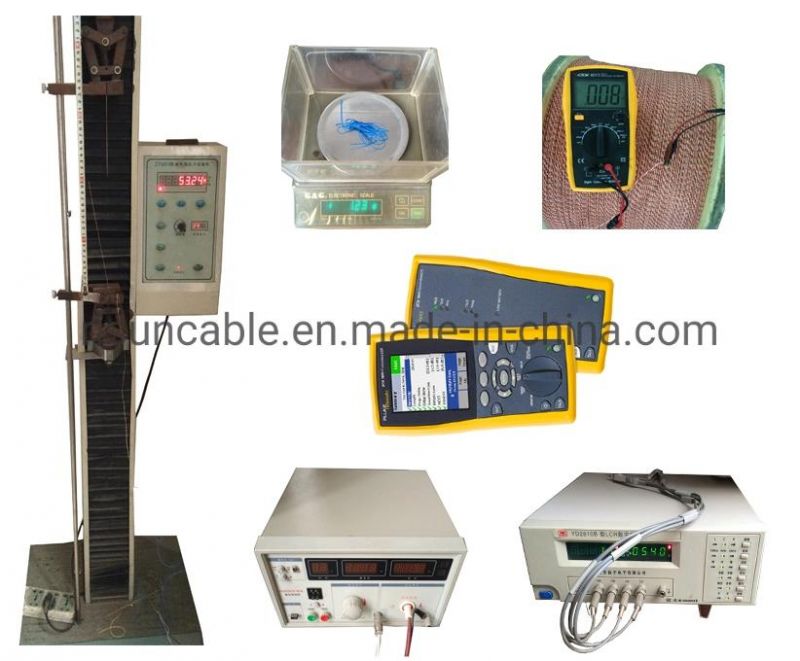

Production line:
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
