High Speed 10g CAT6A F/UTP 4-Pair LAN Cables 23AWG Box

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,LSZH
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：F,UTP CAT6A
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, SGS,CPR,ETL,ISO9001
  • Model：F,UTP CAT6A
  • Brand：Risun or OEM
  • Conductor：Solid Bare Copper
  • Insulation：HD PE
  • Filler：PE
  • Shield：Polyester Tape+Aluminium,Polyester
  • Drain Wire：Stranded Tinned Copper (7,0.15 mm)
  • Jacket：PVC or LSZH
  • Transport Package：305m,Pull Box, 2 Pull Box,CTN.
  • Specification：CE, ISO, RoHS, ETL SGS CPR ISO9001
  • Trademark：Risun or OEM
  • Origin：Hangzhou, Zhejiang, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes Per Month

Description

Rated temperature (˚C) 75ApplicationHorizontal wiring in LANF/UTP CAT6A solidConductorSolid Bare Copper AWG23Conductor dia. nom. (mm)0.565InsulationHD PEAverage thickness (mm)0.27Insulation dia. (± 0.05 mm)1.15Twisting lay length (mm) 30 underneathCabling lay length (mm)200 underneathFillerPEShieldAluminium foil +Polyester TapeJacket PVC or LSZHAverage thickness0.5Outer Dia. (± 0.2 mm)7.3Drain WireStranded tinned copper (7/0.15 mm)Package305M/1000ft, Wooden Reel, Carton, PalletDelivery timeNormally 25 days after received the deposit.ApplicationSupport 10G Base-T, 1000 Base-T and 1000 Base-TX LANs and broadband video
applications. Test objectJacketBefore tensile strength
(kg/mm2)≥ 1.05Aging elongation (%)≥ 100Aging condition kg/mm2
(˚C x hrs)100 x 240After tensile strength
(kg/mm2 pt)≥ 85 % of unagedAging elongation (%) ≥ 50 % of unagedCold bend (-20 ± 2˚C x 4 hrs)No crack1.0-100 MHz input impedance
(ohms)100 ± 15100-250 MHz input impedance
(ohms)100 ± 221.0-250 MHz delay skew
(ns/100 m)≥ 45Pair-to-ground capacitance
unbalance (pf/100 m)≤ 330Max. conductor DC resistance
20˚C (ohms/km)72Resistance unbalance (%)≥ 45

Dimensions:Shipping reel400 mm (W) x 215 mm (H)Shipping weight17 kg

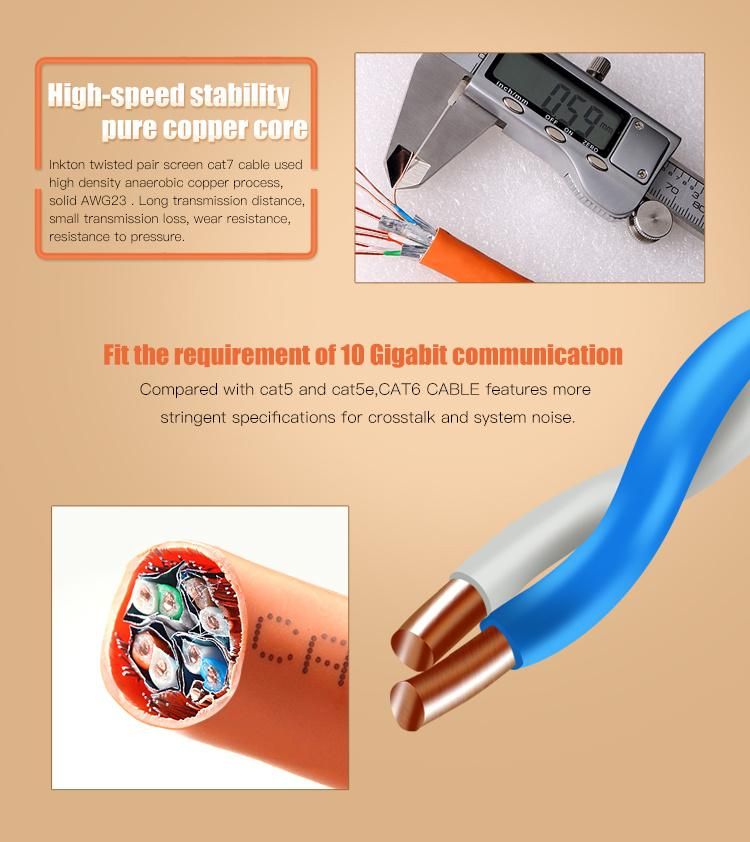

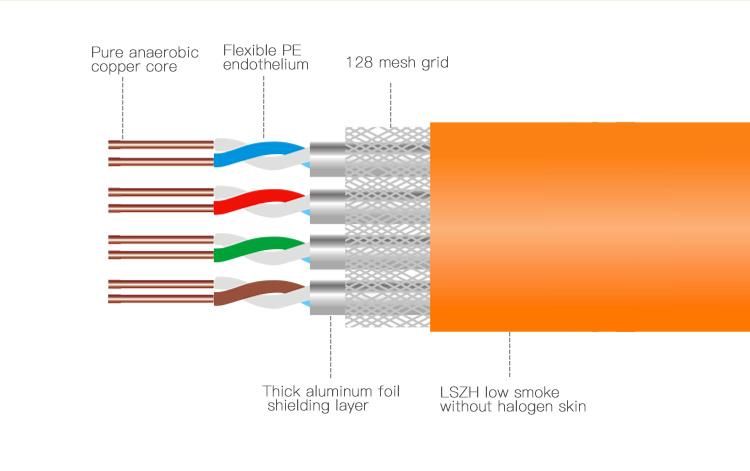

Details Images:
High Speed 10g CAT6A F/UTP 4-Pair LAN Cables 23AWG Box

High Speed 10g CAT6A F/UTP 4-Pair LAN Cables 23AWG Box

 High Speed 10g CAT6A F/UTP 4-Pair LAN Cables 23AWG Box





Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.
High Speed 10g CAT6A F/UTP 4-Pair LAN Cables 23AWG Box


Packing&Shipping:
High Speed 10g CAT6A F/UTP 4-Pair LAN Cables 23AWG Box








High Speed 10g CAT6A F/UTP 4-Pair LAN Cables 23AWG Box














High Speed 10g CAT6A F/UTP 4-Pair LAN Cables 23AWG Box









High Speed 10g CAT6A F/UTP 4-Pair LAN Cables 23AWG Box






Why Choose Us:




High Speed 10g CAT6A F/UTP 4-Pair LAN Cables 23AWG Box






FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
