• Certification：CE, ISO, RoHS, CCC, ETL,CPR
• Brand：Risun or OEM
• Insulation：HDPE
• Conductor：23 AWG
• Transport Package：305m,Pull Box
• Origin：Hangzhou, Zhejiang, China
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Certification CE, ISO, RoHS, CCC, ETL,CPR Brand Risun or OEM Insulation HDPE Conductor 23 AWG Transport Package 305m/Pull Box Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

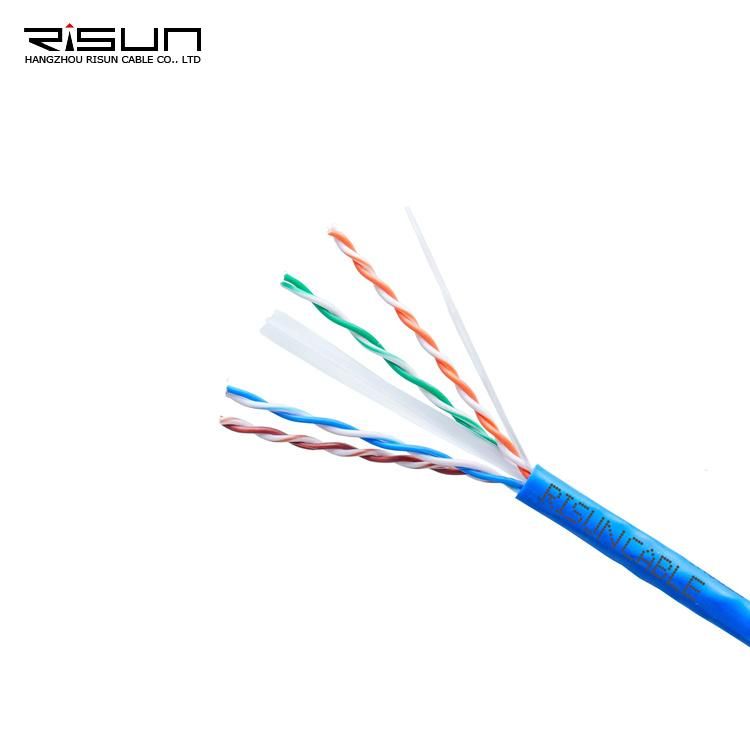

construction:

conductor	23awg (solid or strand) cu
insulation	hdpe 1.04±0.02mm
sheath	6.2±0.1mm pvc (fr,rohs,uv)/ lsoh / pe
cores/pairs	8/4

mechanical properties:

elongation	min. 300%
temperature range	-20 up to +75° c
tensile strength	min 1.68kg/mm²

electrical properties:

resistance	max. 9.38 ohm/100m
resistance unbalance	max. 2%
insulation resistance	150 ohm/km
mutual capacitance	max. 5600pf/100m
capacitance unbalance	max. 330pf/100m
impedance	100+/-15 ohm
spark test	2000v
velocity of propagation	67%

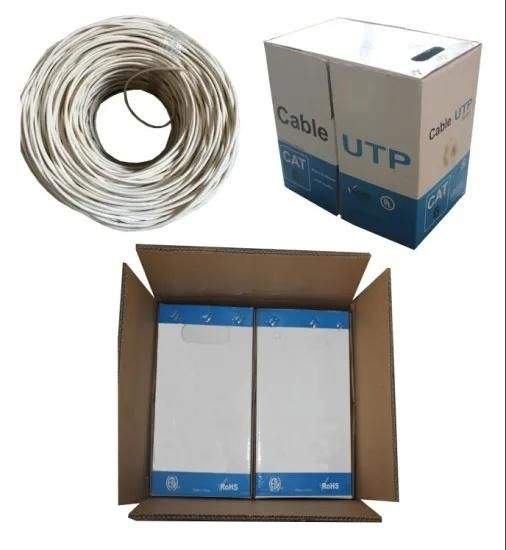

Packing

1) packing lengths: 305m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.



Company Profile

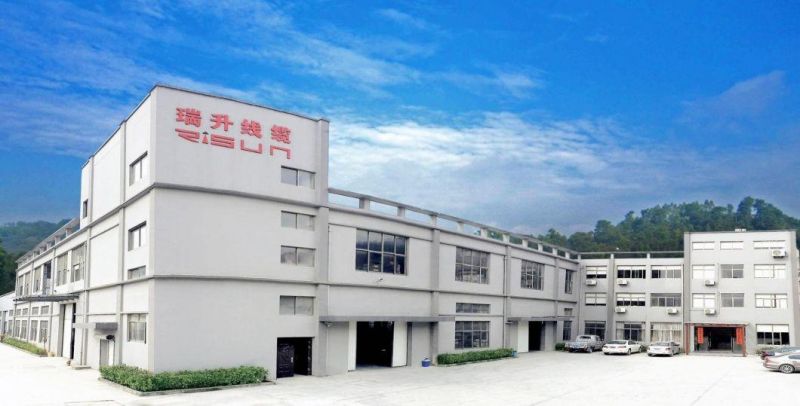

Risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.

95% of our goods for the export market. 14 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.

in the past 14 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.




process of production:
FAQ

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Mass production time needs 20-25 days.

Q3. Do you have any MOQ limit for order?
A: Normally, 10kms per one specification and one color.

Q4. How do you ship the goods and how long does it take to arrive?
A: Normally by sea shipping. (sample order also available by air or courier)

Q5. How to proceed an order for cables?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q6. Is it OK to print my logo on cables?
A: Yes. Please inform us formally before our production.
