High Temperature Silicone Rubber Insulation Silicone Rubber Jacket J Type Thermocouple Compensation Cable
Yangzhou Fongming Cable Factory- Type：Insulated
- Conductor Type：Stranded
- Application：Heating, High Temperature Heating Electrical Appliance
- Conductor Material：Fe, Cu-Ni
- Sheath Material：Silicone Rubber
- Insulation Material：Silicone Rubber
Base Info
- Model NO.：JX-RR
- Material Shape：Round Wire
- Range of Application：Temperature Measuring
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Fongming
- Name：Jx-Rr Thermocouple Wire
- MOQ：500meters
- Rated Temperature：+200 Degree C
- Customize：Available
- Insulation：Silicone Rubber
- Model：Jx-Rr Type
- Size：2*26-2*14AWG
- Conductor：Fe, Cu-Ni
- Sample：1meter Free Sample, 3 Days
- Jacket：Silicone Rubber
- Transport Package：100m, 200m or 305m Per Roll. Carton Packing.
- Specification：2*26mm2, 2*24mm2, 2*22mm2, 2*20mm2, 2*18mm2
- Trademark：FONGMING
- Origin：Yangzhou, Jiangsu Province, China.
- HS Code：8544492100
- Production Capacity：100000000m Per Year
Description
Basic Info.
Model NO. JX-RR Material Shape Round Wire Range of Application Temperature Measuring Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Fongming Name Jx-Rr Thermocouple Wire MOQ 500meters Rated Temperature +200 Degree C Customize Available Insulation Silicone Rubber Model Jx-Rr Type Size 2*26-2*14AWG Conductor Fe, Cu-Ni Sample 1meter Free Sample, 3 Days Jacket Silicone Rubber Transport Package 100m, 200m or 305m Per Roll. Carton Packing. Specification 2*26mm2, 2*24mm2, 2*22mm2, 2*20mm2, 2*18mm2 Trademark FONGMING Origin Yangzhou, Jiangsu Province, China. HS Code 8544492100 Production Capacity 100000000m Per YearProduct Description
High Temperature silicone rubber insulation silicone rubber jacket J Type thermocouple compensation cableDescription
Name:Thermocouple wire
Model:JX-RR Type
Size:2*26-2*14AWG

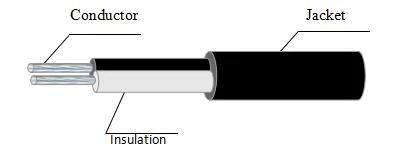

Structure
Conductor:Fe,Cu-Ni
Insulation: Silicone Rubber
Color: P: Black,N:White
Jacket: Silicone Rubber
Color:Black
Application
For temperature measuring
Model
Specification
| Size (mm) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | O.D. (mm) |
| 2*26 | 7/0.16 | 0.48 | 0.3 | 1.1 | 0.5 | 2.1*3.2 |
| 2*24 | 7/0.2 | 0.6 | 0.3 | 1.2 | 0.5 | 2.2*3.4 |
| 2*22 | 7/0.254 | 0.76 | 0.3 | 1.4 | 0.5 | 2.4*3.8 |
| 2*20 | 7/0.32 | 0.96 | 0.3 | 1.6 | 0.5 | 2.6*4.2 |
| 2*18 | 7/0.39 | 1.17 | 0.4 | 2.0 | 0.6 | 3.2*5.2 |
| 2*16 | 19/0.3 | 1.5 | 0.4 | 2.3 | 0.6 | 3.5*5.8 |
| 2*14 | 19/0.37 | 1.85 | 0.4 | 2.7 | 0.6 | 3.9*6.6 |
Certificates:
UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.
Packaging & Shipping
| 1. Package length | 200meres 305meter 500meter As customers requirement |
| 2. Package method | Rolls, spool or coil, Pallets if need. |
| 3: Shipping port | Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port |
Company Information
| Factory Size (Sq.meters): | 25,000-30,000 square meters |
| Factory Location: | Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China |
| Number of Production Lines: | 7 |
| Number of R&D Staff: | 21 - 30 People |
| Number of QC Staff: | 21 - 30 People |
| Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
