• Model NO.：UL2464
• Wire Core Material：Copper
• Certification：ISO, RoHS, UL, Reach
• Model：UL2464
• Brand：Bort
• Color：White Blue Red Black Yellow
• Rated Voltage：300V
• UL Flame Test：UL Vm-1&CSA FT1
• Current：DC,AC
• Production Process：Welding
• Species：Terminal
• Character：Environmental Protection
• User：Socket Terminals
• Factory Management：ISO9001:2015
• Transport Package：Coil
• Trademark：BORT
• Origin：China
• HS Code：8544492900
• Production Capacity：500000km,Per Year

Basic Info.

Model NO. UL2464 Wire Core Material Copper Certification ISO, RoHS, UL, Reach Model UL2464 Brand Bort Color White Blue Red Black Yellow Rated Voltage 300V UL Flame Test UL Vm-1&CSA FT1 Current DC/AC Production Process Welding Species Terminal Character Environmental Protection User Socket Terminals Factory Management ISO9001:2015 Transport Package Coil Trademark BORT Origin China HS Code 8544492900 Production Capacity 500000km/Per Year

Product Description

awm 2464 vw 1 80c 300v electric wires cables pvc cable



★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2

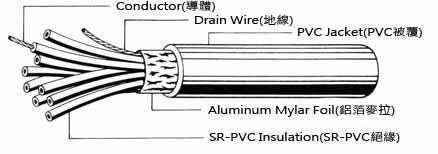

★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Tinned or bare stranded copper drain wire
★Tinned or bare stranded copper wire overall more than 80% coverage braided shield
★PVC jacket
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure  easy stripping and cutting
★Sound broadcast,audio,instrumentation&computer


AWG/NO.OFCOND	No./mm	mm	m/n/d	mm	mm
24×2C	11/0.16	0.25	16/4/0.10	0.80	4.35
24×3C	11/0.16	0.25	16/4/0.10	0.80	4.50
24×4C	11/0.16	0.25	16/5/0.10	0.80	4.80
24×5C	11/0.16	0.25	16/6/0.10	0.80	5.10
24×6C	11/0.16	0.25	16/6/0.10	0.80	5.45
24×7C	11/0.16	0.25	16/6/0.10	0.80	5.50
22×2C	17/0.16	0.25	16/5/0.10	0.80	4.75
22×3C	17/0.16	0.25	16/6/0.10	0.80	4.95
22×4C	17/0.16	0.25	16/6/0.10	0.80	5.30
22×5C	17/0.16	0.25	16/7/0.10	0.80	5.65
22×6C	17/0.16	0.25	16/8/0.10	0.80	6.05
22×7C	17/0.16	0.25	16/8/0.10	0.80	6.10
