• Model NO.：CABLE MULTIPLEXED ALUMINUM XLPE
• Wire Core Material：AAC
• Certification：ISO, CCC
• Model：ABC
• Brand：Hongda
• Cable Type：ABC
• Standard：IEC UL
• Transport Package：Drum or Roll
• Specification：4 core 95mm abc cable
• Trademark：HONGDA
• Origin：China
• HS Code：8544492100
• Production Capacity：20km,Day

TypeApplicationDuplex
Service DropTo supply 120 volt aerial service for temporary service at construction sites,outdoor or street
lighting .
 For service at 600 volts or lower at a conductor temperature of 75°C maximum.Triplex
Service Drop To supply power from the utility's lines to the consumer's weatherhead.For service at 600 volt or less (phase to phase)
at a conductor temperature of 75°C maximumfor polyethylene  insulation 90°C maximum for crosslinked insulation.Quadruplex

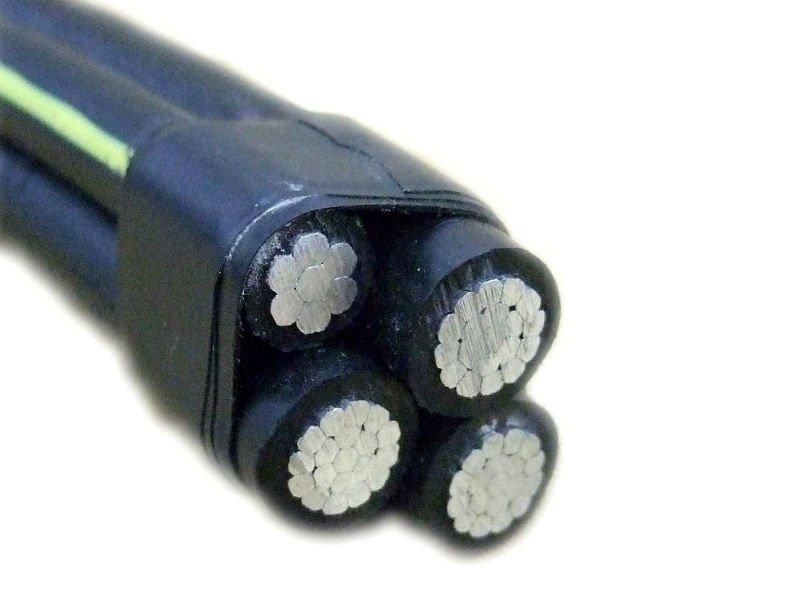

Service Drop Used to supply 3 phase power, usually from a polemounted transformer, to the user'sservice head where connection to
the service entrance cable is made. To be used at voltages of 600volts or less phase to phase and at  conductor temperatures not to exceed 75°C for polyethyleneinsulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors.
     Construction of bundleLay of strandingBundle diameterAl weightBundle weightN * mm²mmmmkg/kmkg/km2x1630015,093137,0004x1635018,0186270,0002x2535018,4145214,0004x2543022,2290431,0003x25 + 7070026,6421569,0003x25 + 70 + 1x1670026,6467672,0003x25 + 70 + 2x1670029,6513739,0003x35 + 7076029,8509688,0003x35 + 70 + 1x1676029,8555759,0003x35 + 70 + 2x1676029,8602825,0003x50 + 7085033,1639809,0003x50 + 70 + 1x1685033,1685879,0003x50 + 70 + 2x1685033,1732945,0003x70 + 7098038,68131,0443x70 + 70 + 1x1698038,68601,1143x70 + 70 + 2x1698038,69071,1813x70 + 70 + 2x2598038,69581,253

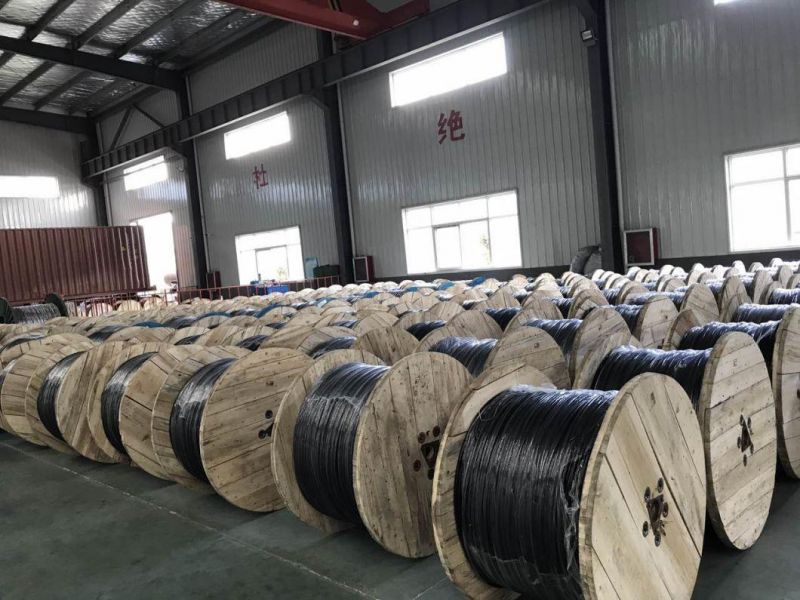

Packing:



Any problem and inquiry pls contact with Tina
