• Model NO.：RG 59
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, CCC, RoHS
• Brand：Hanli
• Nominal Pitch Step：38
• Braiding：CCA
• Foil：Aluminum Mylar
• Other Option：Tri-Shielding; Quad-Shielding
• Transport Package：100,200,305m,Coil
• Specification：305m drum +carton: 28.5*28.5*25
• Trademark：HANLI
• Origin：Zhejiang
• HS Code：8544491100
• Production Capacity：2000000m,Month

Basic Info.

Model NO. RG 59 Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CE, CCC, RoHS Brand Hanli Nominal Pitch Step 38 Braiding CCA Foil Aluminum Mylar Other Option Tri-Shielding; Quad-Shielding Transport Package 100/200/305m/Coil Specification 305m drum +carton: 28.5*28.5*25 Trademark HANLI Origin Zhejiang HS Code 8544491100 Production Capacity 2000000m/Month

Product Description

RG-59 Standard Specification :

0.81mm CCS + 3.66mm FPE + AL/ pet Foil + 64*0.12mm Al Braiding +6.0mm PVC

Coaxial cable can be divided into baseband coaxial cable and broadband coaxial cable (namely network coaxial cable and video coaxial cable).Coaxial cable 50Ω baseband cable and 75 Ω broadband cable.

Baseband cable include thin coaxial cable and thick coaxial cable.Baseband cable is only used for digital transmission, data rate up to 10Mbps.

The broadband cable is the standard used in the CATV system, which can transmit analog or digital signals using frequency division multiplexing.

Coaxial cable is more expensive than twisted pair, but its anti-interference performance is stronger than twisted pair.Coaxial cable can be used when more equipment is connected and communication capacity is quite large.




COAXIAL CABLE consisting of mutually insulated conductors on the inside and outside: copper wire on the inside and copper pipe or mesh on the outside.The electromagnetic field is closed between the inner and outer conductors, so the radiation loss is small and the influence of external interference is small.
It is often used to transmit multiplex telephones and televisions.

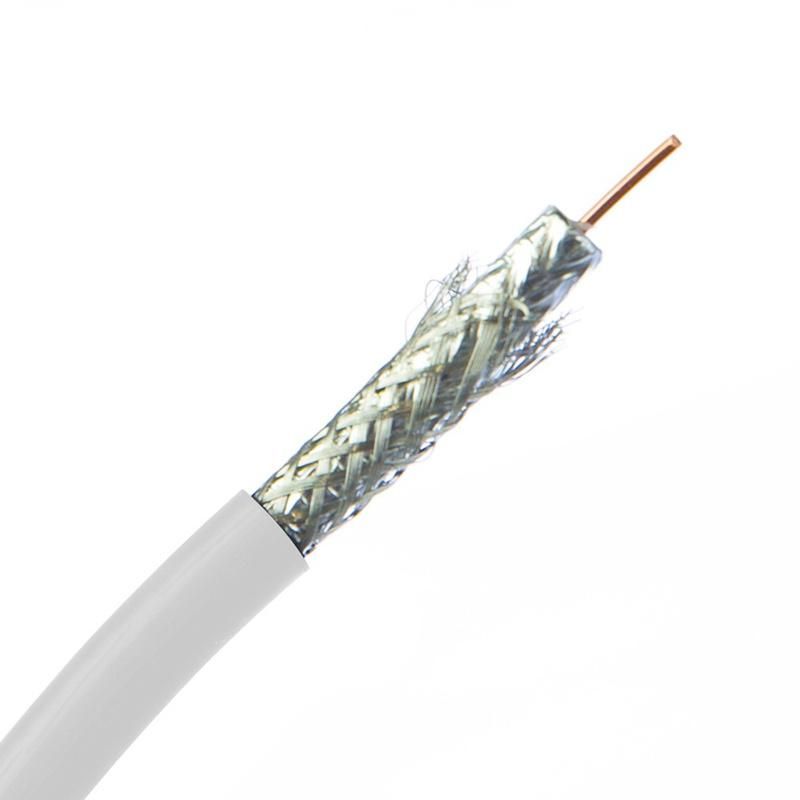

RG 59 is a common type of coaxial cable used in a wide variety of residential and commercial applications.It has a characteristic impedance of 75 ohms. The term, RG-59, is generic and is applied to a wide variety of cable designs, which differ from one another in shielding characteristics, center conductor composition, dielectric type and jacket type. In practice, the term RG-59 is generally used to refer to coaxial cables with an 20 AWG (0.81mm) center conductor and 75 ohm

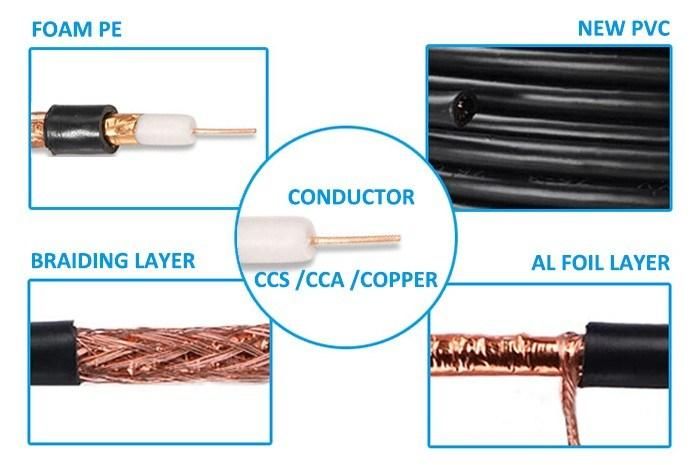

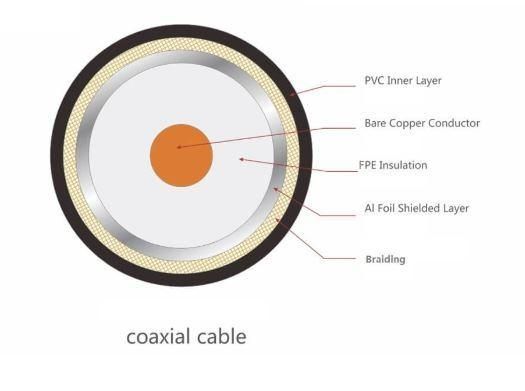

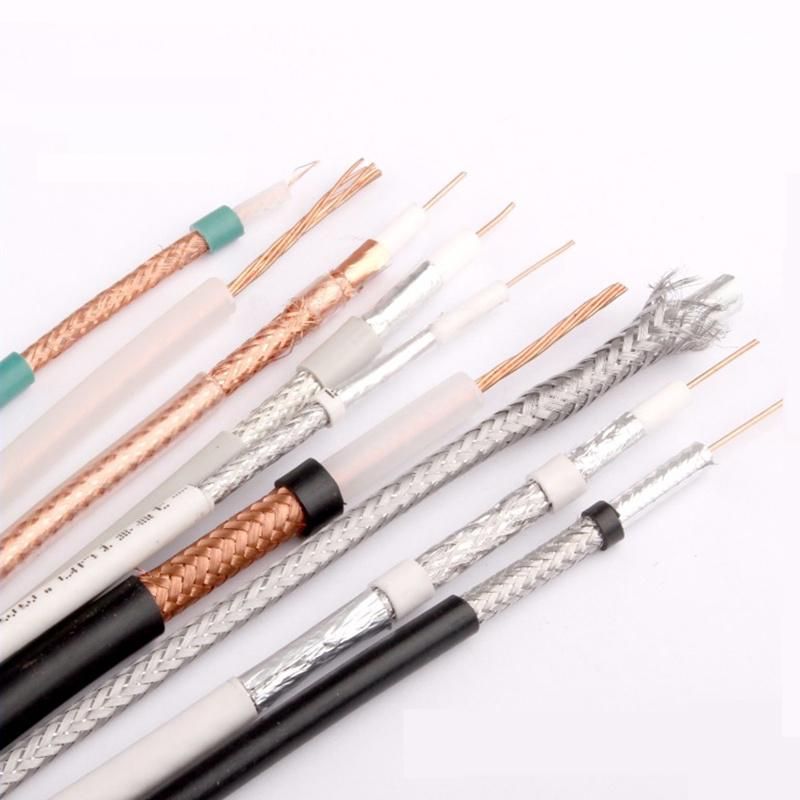

RG-59 Constructure

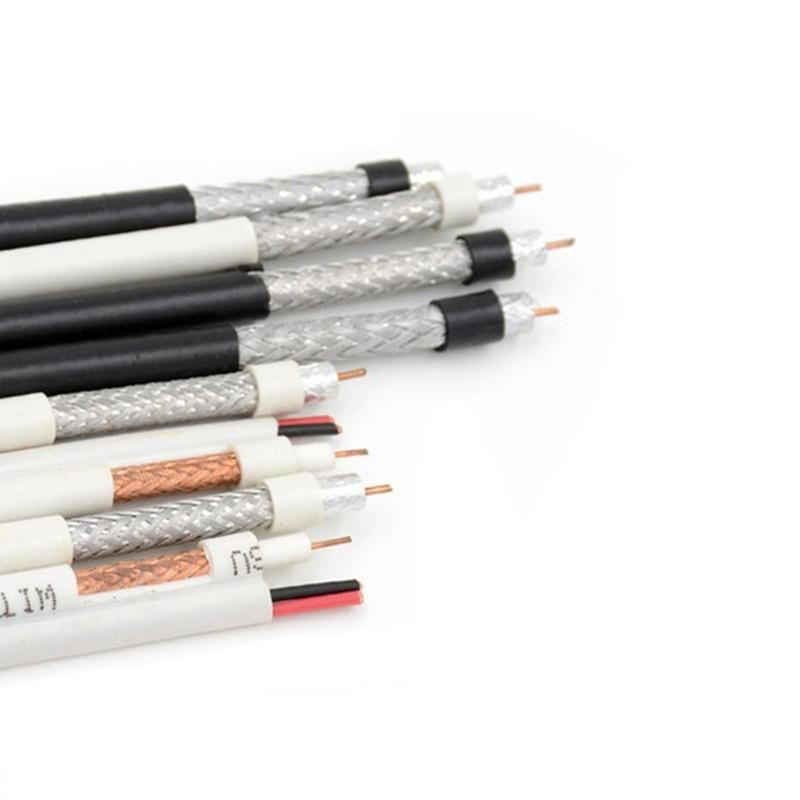

In order to cater to numerous necessities of our customers, we have been able to provide a wide range of RG-59 CCS Coaxial Cable.

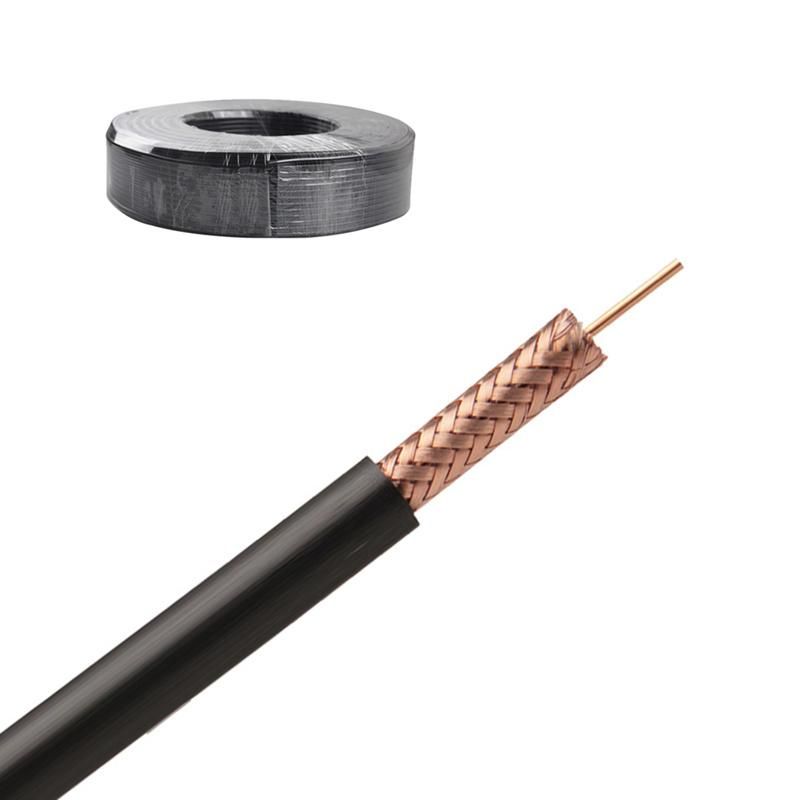

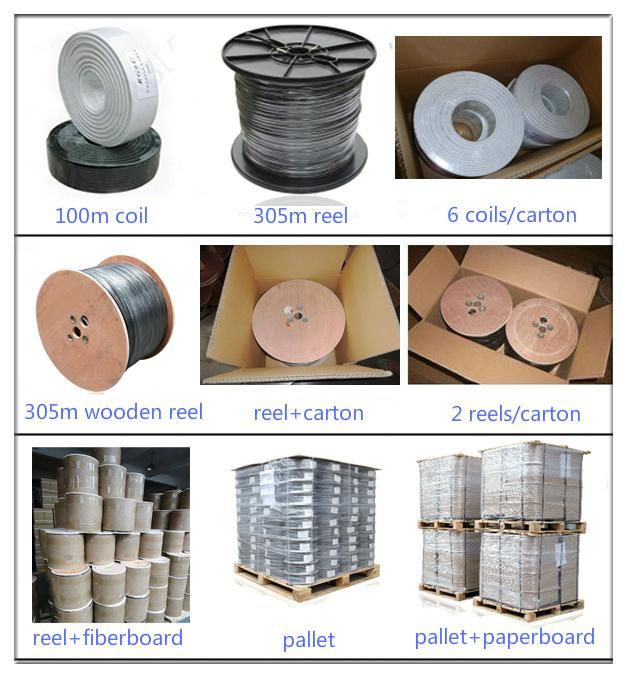

Packing Option

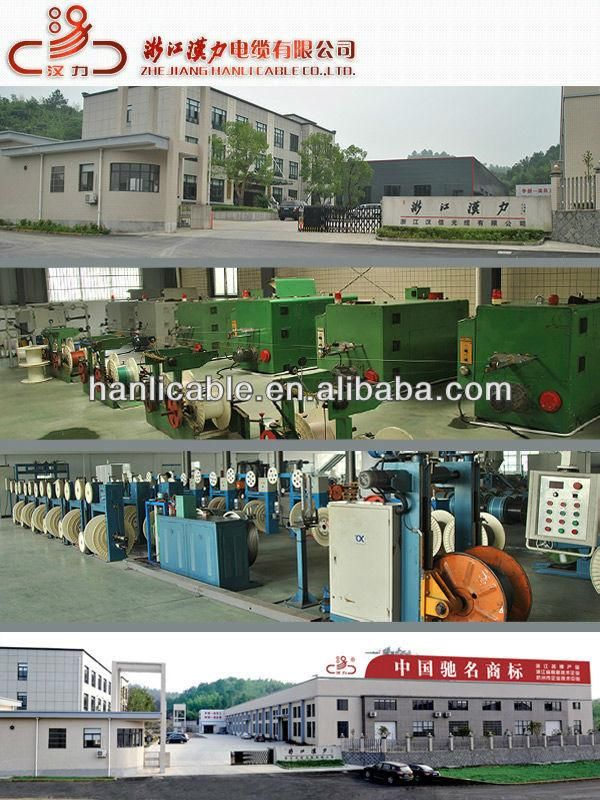

A glance at our factory





Certificates






FAQ
Q:Are you a trading company or manufacturer?
A: We are a communication cable manufacturer, owning 3 factories, each factory specializes in one cable type-coaxial cable; category/ telephone cable;fiber optical cable

Q: Where do you locate?
A: We are in Hangzhou,which is near both to Ningbo and Shanghai Port. Here we have an  integrated supply chain that can help  cut the cost lower.

Q: Why should I trust you?
A:

1. Our company has been established for over 20 years,and never stop innovation, is a companie with a history and dynamism.
2. Been awarded China Famous Brand, Provincial Star Product, and owns over 32 patents, multiple programs have been listed as National Torch Projects, is a promising enterprise.
3. We have been doing export business for over 12 years, and experienced in handling all kinds of   cable international transactions.

Q: Can I visit your company?


Your inquiries are highly welcomed.
