• Model NO.：NL
• Material Shape：Round Wire
• Range of Application：Telecommunication
• Certification：ISO9001, CE, UL, CCC, RoHS
• Brand：Optelec
• Name：Preformed Dead-Ends
• Transport Package：Wooden Case
• Specification：CE, RoHS, SGS, ISO
• Trademark：OPTELEC
• Origin：China
• HS Code：7326
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. NL Material Shape Round Wire Range of Application Telecommunication Certification ISO9001, CE, UL, CCC, RoHS Brand Optelec Name Preformed Dead-Ends Transport Package Wooden Case Specification CE, RoHS, SGS, ISO Trademark OPTELEC Origin China HS Code 7326 Production Capacity 50000PCS/Month

Product Description

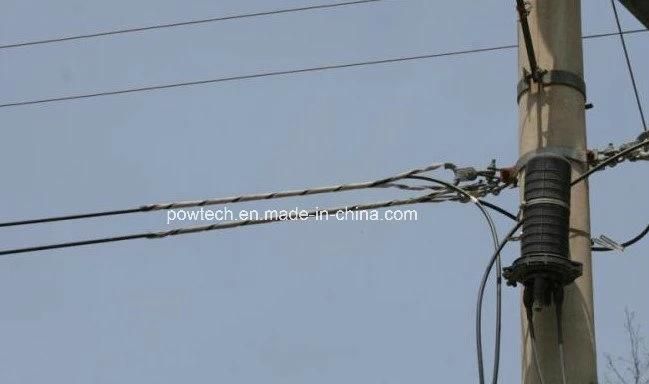

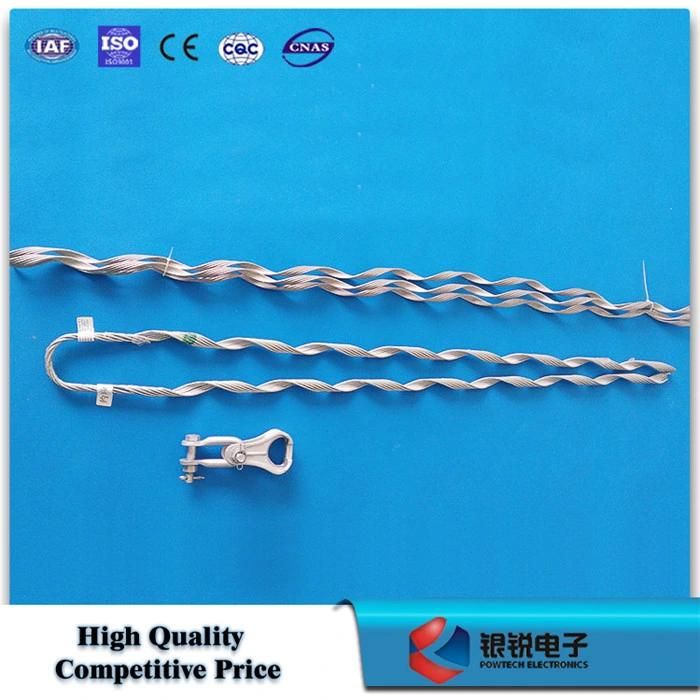

Dead end guy grips/ ADSS/OPGW cable tension clamp



Description:

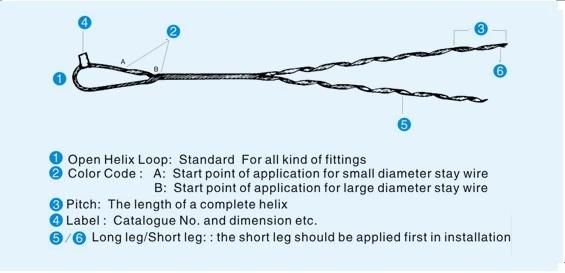

Guy-grip dead-ends provide today's most effective method for securing conductor strand. This unique, one-piece dead-end is neat in apperance and free from bolts or high-stress holding devices. The Guy-grip dead ends are the first to offer the cabled loop, a feature that provides more durability, easier tensioning and adaptability to multiple guying.

Guy-grip dead-ends are made of the same material as the strand to which they are applied. Guy-grip dead-ends should be used on hardware that is held in a fixed position. The fitting should not be allowed to rotate or spin about the axis of the strand. They should not be used as tools inlcuding come-alongs, pulling-in grips, ect.

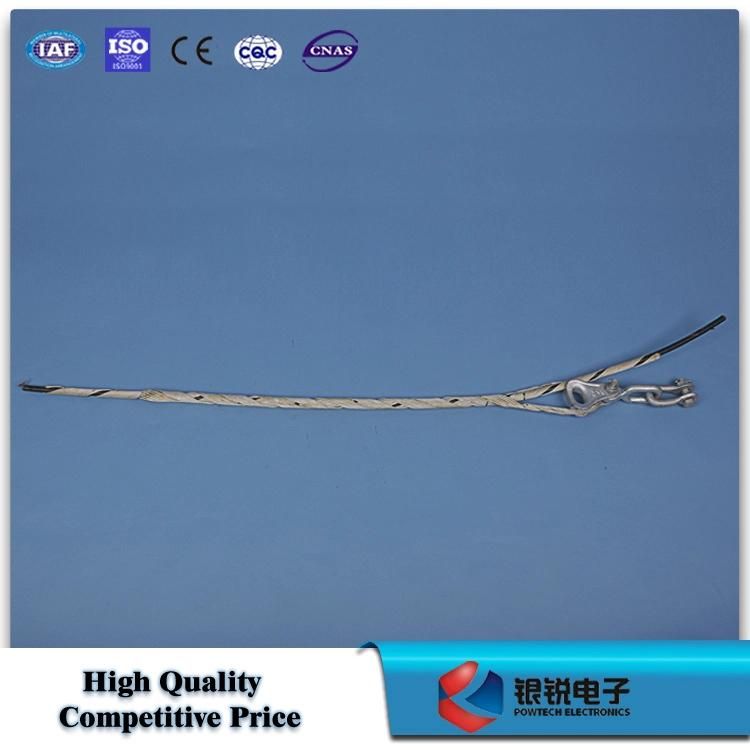

Dead end guy grip for stay wire


Technical Specifications:

Cat. No.	Guy Wire (mm)	Length(mm )	Guy Wire (mm 2 )	Weight (kg)	Color Code
GDE-0660	6.60	635	25	0.2	Yellow
GDE-0795	7.65~7.95	711	35	0.3	Black
GDE-9300	8.95~9.30	901	50	0.5	Orange
GDE-1110	10.82~11.10	1016	70	0.8	Green
GDE-1250	12.50	1333	95	1.7	Orange
GDEL-1300	13.00	1333	100	1.7	Yellow
GDEL-1400	14.00	1460	120	2.2	Yellow

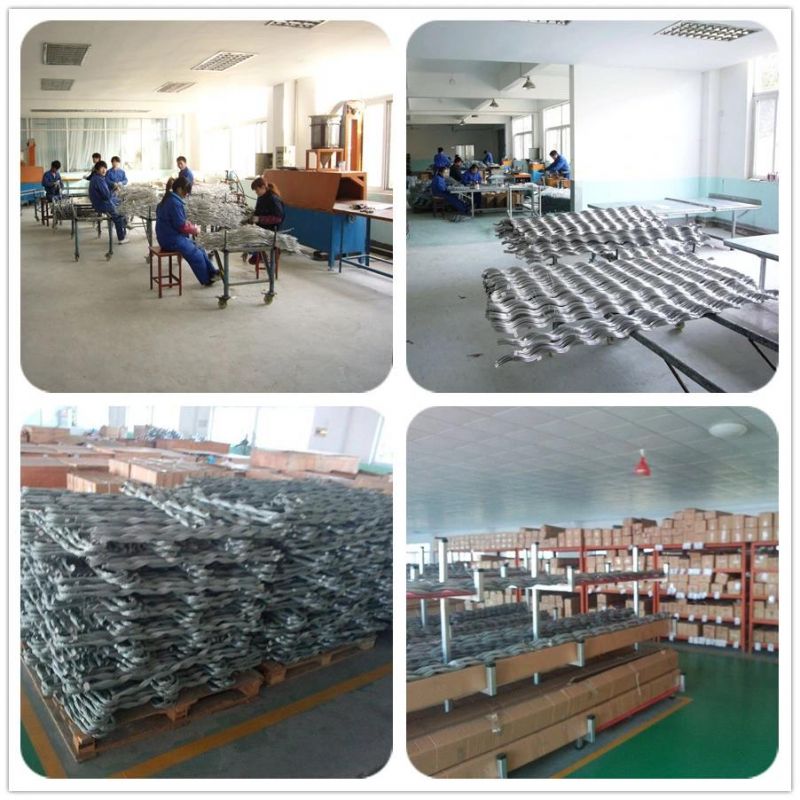

Production line:
