Low Voltage Cable 0.6/1kv 3X70+35 mm2 Copper Conductor Sta Armour Power Cable

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE , PVC
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：Power Cable
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC, CE
  • Model：Yjv22 Yjlv22
  • Brand：Yifang
  • Cores：Multi Cores
  • Standards：IEC,Bs,Ieca
  • Transport Package：Drum, Steel Drum
  • Specification：3X70+35 mm2
  • Trademark：Yifang cable
  • Origin：Zhengzhou Henan
  • HS Code：8544492100
  • Production Capacity：5000km,Year

Description

Basic Info.

Model NO. Power Cable Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model Yjv22 Yjlv22 Brand Yifang Cores Multi Cores Standards IEC/Bs/Ieca Transport Package Drum, Steel Drum Specification 3X70+35 mm2 Trademark Yifang cable Origin Zhengzhou Henan HS Code 8544492100 Production Capacity 5000km/Year

Product Description

0.6/1kV 3X70+35 mm2 Copper Conductor STA Armour Power Cable

Application and Description:

0.6/1KV, copper conductor, XLPE/PVC insulated power cable is for Iindustrial wiring and mains distribution. Can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air. May be embedded in concrete.

Standards: IEC 60502 / BS 5467 / DIN / ICEA


Design

Conductor: Stranded circular copper - class 2 according to IEC 60228 / BS EN 60228: 2005

Cores: 1C, 2C, 3C, 4C, 5C, 3C+1E, 4C+1E, 3C+2E

Insulation: XLPE / PVC

Filler: Laying up with fillers

Inner sheath: PVC / LSZH

Armour: Steel or steel tapes ( aluminium wires or aluminum tape can be customized)

Outer sheath: PVC / LSZH

Rated Voltage Uo/U (Um): 0.6/1 KV

Range of Nominal cross section: 1.5 mm2 ~ 630 mm2

8AWG~4/0AWG, 300MCM, 500MCM, 750MCM, 1000MCM

Mechanical characteristics:

Mechanical resistance to impacts: Excellent

Cable flexibility: Rigid

Usage characteristics:

Max. Conductor temperature in service: 70° C(PVC insulation), 90° C(XLPE insulation)

Short-circuit max. Conductor temperature: 250° C

Operating temperature, range: -25...60° C

Weather resistance: Very good

Flame retardant: C2, NF C 32-070

Chemical resistance: Accidental

Water proof: Intermittent

Packaging: Cut to length



Dear friends, we can design and produce power cable with International and national standards according to your request.
TypeDescriptionNumber of coresNominal cross section of conductor
YJV32CU/XLPE/SWA/PVC Power Cable1, 2, 3, 4, 3+1,
5, 4+1, 3+2		1.5~1000mm2
YJLV32AL/XLPE/SWA/PVC Power Cable
YJV72CU/XLPE/Non-magnetic SWA or AWA/PVC Power Cable11.5~1000mm2
YJLV72AL/XLPE/Non-magnetic SWA or AWA/PVC Power Cable
YJV33CU/XLPE/SWA/PE Power Cable1, 2, 3, 4, 3+1,
5, 4+1, 3+2		1.5~1000mm2
YJLV33AL/XLPE/SWA/PE Power Cable
Z-YJV32CU/XLPE/SWA Flame-retardant Power Cable1, 2, 3, 4, 3+1,
5, 4+1, 3+2		1.5~1000mm2
Z-YJLV32AL/XLPE/SWA Flame-retardant Power Cable
WDZ-YJY33CU/XLPE/SWA Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) Flame-retardant Power Cable1, 2, 3, 4, 3+1,
5, 4+1, 3+2		1.5~1000mm2
WDZ-YJLY33AL/XLPE/SWA Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) Flame-retardant Power Cable
N-YJV32CU/XLPE/SWA Fire-resistant Power Cable1, 2, 3, 4, 3+1,
5, 4+1, 3+2		1.5~1000mm2

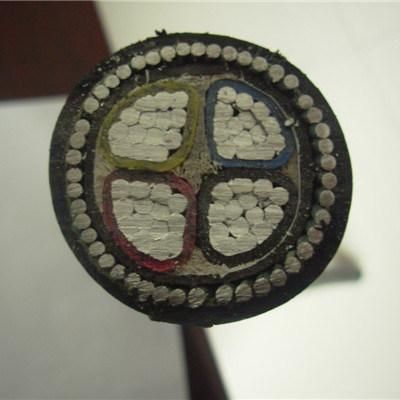

Low Voltage Cable 0.6/1kv 3X70+35 mm2 Copper Conductor Sta Armour Power CableLow Voltage Cable 0.6/1kv 3X70+35 mm2 Copper Conductor Sta Armour Power Cable
Low Voltage Cable 0.6/1kv 3X70+35 mm2 Copper Conductor Sta Armour Power Cable
Our company

Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.

Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.

Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.

Low Voltage Cable 0.6/1kv 3X70+35 mm2 Copper Conductor Sta Armour Power Cable
Our certificate

Low Voltage Cable 0.6/1kv 3X70+35 mm2 Copper Conductor Sta Armour Power Cable
FAQ

1.Q:Are you a factory or trading company?
 A: Manufacturing base in Henan ,China, with more than 500 workers.

2.Q:How can I visit there?
 A: Sure,If you need,we will arrange the driver to pick you up.

3.Q:How can I get some samples?
 A: Contact me on below,Determin sample and address for shipping.


4.Q:Have you ever supplied cables to our country?
 A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.

5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.

6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.

7.Q:How long is your delivery time?
 A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
