Cable & Wire

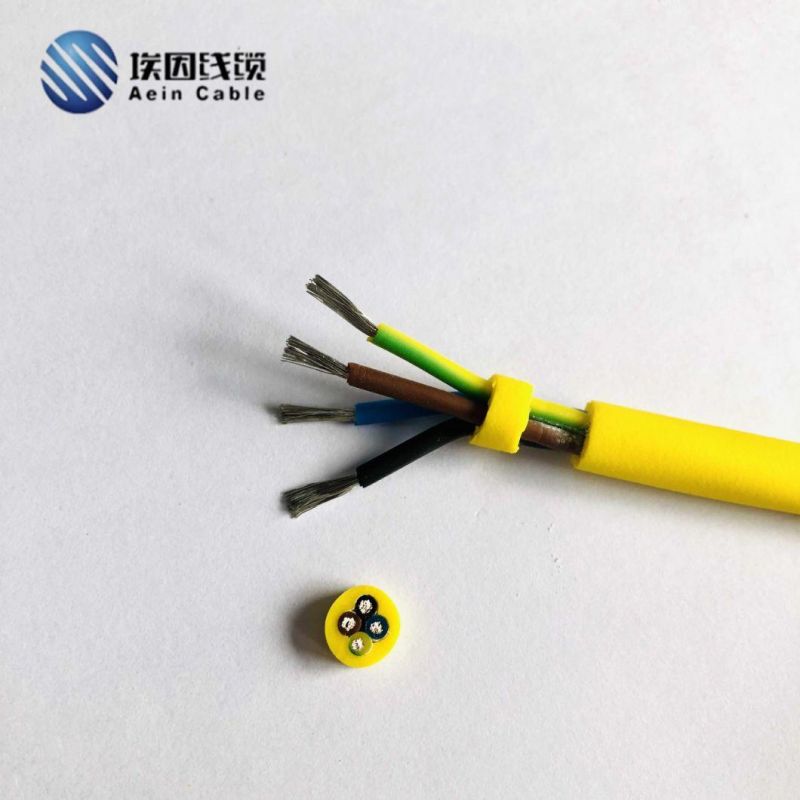

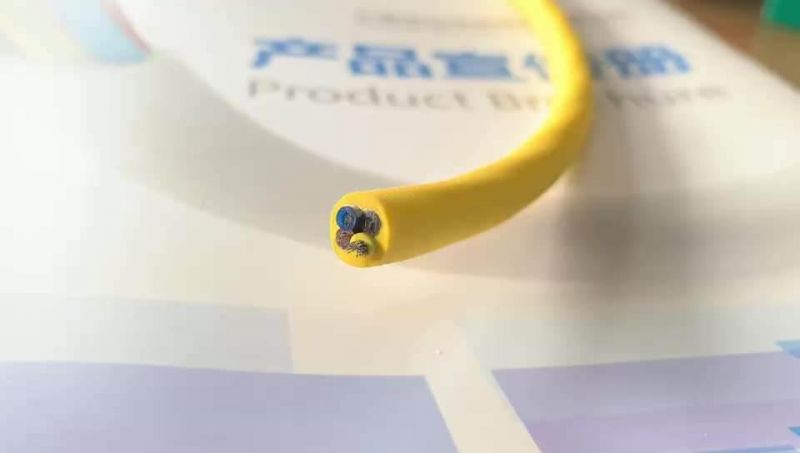

CE Certified 450/750V A07rn-F Cable Weather Resistant Rubber Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type:Insulated
  • Conductor Type:Stranded
  • Application:Industrial Cable
  • Conductor Material:Copper
  • Sheath Material:Polychloroprene Rubber
  • Insulation Material:Rubber

Base Info

  • Model NO.:A07RN-F Cable
  • Material Shape:Round Wire
  • Range of Application:Weather Resistant
  • Certification:ISO9001, CE, UL, RoHS
  • Brand:Aein
  • Transport Package:Optional
  • Specification:Multicore
  • Trademark:AEIN
  • Origin:Shanghai
  • HS Code:8544492100

Description

ItemCE Certified 450/750V A07RN-F Cable ConductorFine bare copper strandsInsulationRubberOuter SheathPolychloroprene rubberCore NumberMulticores (As client's requirement)Rated Voltage 450/750 voltsTest Voltage2.5 KVMinimum Bending RadiusFlexing: 7.5 x Ø
Static: 4 x Ø
Temperature RangeFlexing Temperature: -25ºC to +60 ºC
Static
Temperature: -40ºC to +60 ºC
ColorOptionalApplicationThese cables are designed to provide high flexibility and have the capacity to withstand ozone,weather and oils/greases, mainly used for connecting of power tools, mobile units and machines for medium mechanical requirements in dry and humid rooms, for outdoor use, in explosive areas, in commercial and agricultural plants and on Cable Construction lots. Also suitable for fixed laying e.g. on-wall in provisional buildings, for directly laying on modules of hoisting devices, machinery etc. Max operating voltage in single or three phase system is Uo/U 476/825 volts. In a direct current system max operating voltage is Uo/U 619/1238 volts. If in a fixed or protected installation Uo/U is 600/1000 volts.
