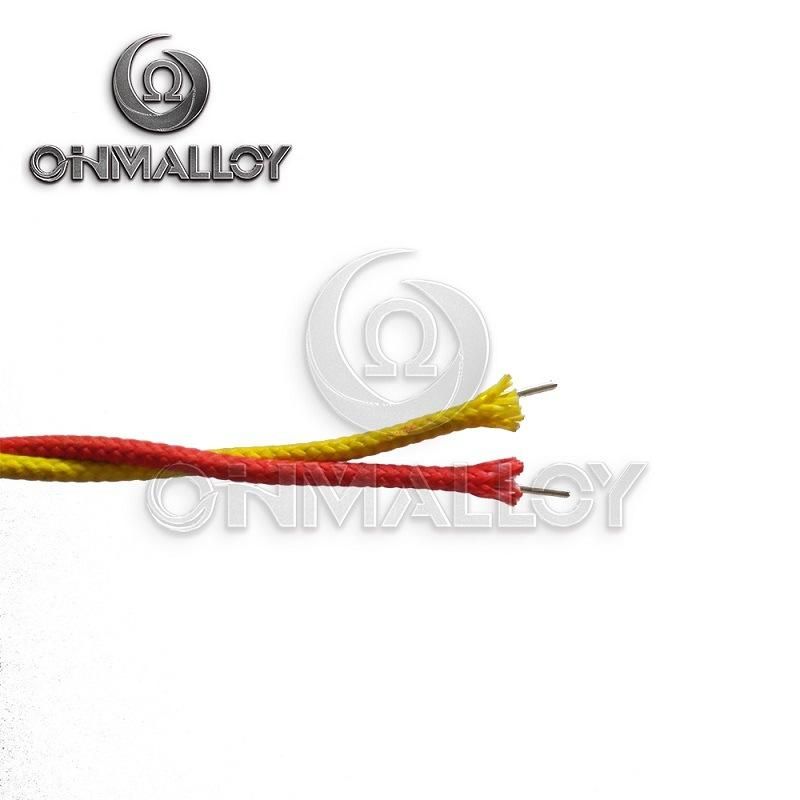

ANSI Standard Type K 2X0.5mm Cross Section Nicr/Nial Alloy Wire Thermocouple Extension Cable

Ohmalloy Material Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Thermocouple Wires
  • Conductor Material：Chromel,Alumel
  • Sheath Material：FEP.PVC. Fiberglass, Teflon, Silicon Rubber
  • Insulation Material：FEP.PVC. Fiberglass, Teflon, Silicon Rubber

Base Info

  • Model NO.：K-HB-1122
  • Material Shape：Round Wire
  • Range of Application：Machinery,Thermocouple,Electricity
  • Certification：ISO9001, ANSI
  • Brand：Ohmalloy
  • Colour：Conforms to ANSI, IEC, JIS
  • Transport Package：100m,Spool, 500m,Spool, 1000FT,Spool, 1000m,Spool
  • Specification：2x0.5mm2
  • Trademark：OHMALLOY
  • Origin：China
  • Production Capacity：500000meters Per Month

Description

MaterialChemical composition (%)NiCrSiMnAlKP(Chromel)9010   KN(Alumel)95 1-20.5-1.51-1.5


2.MaterialEMF value Vs Pt(μV)100ºC200ºC300ºC400ºC500ºC600ºCKP(Chromel)2816~28965938~60189298~937812729~1282116156~1626619532~19676KN(Alumel)1218~12622140~21802849~28933600~36444403~44635271~5331



EMF value Vs Pt(μV)700ºC800ºC900ºC1000ºC1100ºC22845~2299926064~2624629223~2941132313~3252535336~355486167~62477080~71607959~80598807~89079617~9737


Specifications
1.Style:Extension Wire
2.Thermocouple copper wire
Thermocouple copper wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

Thermocouple variety and index


Thermocouple Variety and Index
Variety
Type
Measurement Range(°C)
NiCr-NiSi
K
-200-1300
NiCr-CuNi
E
-200-900
Fe-CuNi
J
-40-750
Cu-CuNi
T
-200-350
NiCrSi-NiSi
N
-200-1300
NiCr-AuFe0.07
NiCr-AuFe0.07
-270-0

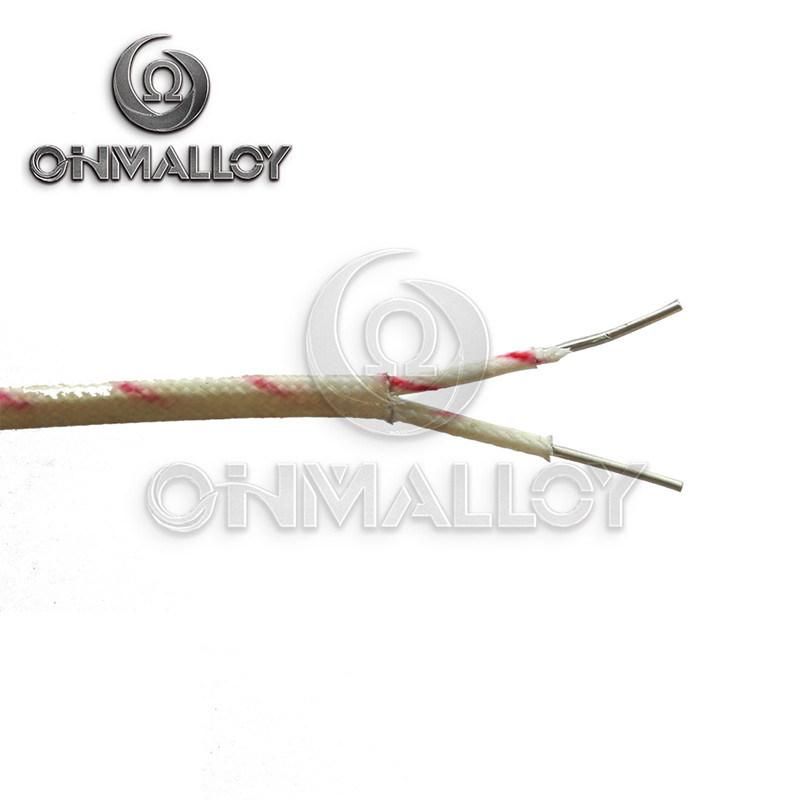

3 . Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire

Dimensions / Tolerance mm ) : 4.0+-0.25


Color code & initial calibration tolerances for thermocouple wire:

Thermocouple TypeANSI Color CodeInitial Calibration TolerancesWire AlloysCalibration+/-
ConductorJacketTemperature RangeStandard
LimitsSpecial
LimitsCHROMEL(+) vs.
ALUMEL(-)KYellow/RedBrown-200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C± 2%
±2.2°C
±2.2°C
± .75%±1.1°C
± .4%


Color Code & Initial Calibration Tolerance for Extension Wire:

Extension typeANSI Color CodeInitial Calibration TolerancesWire AlloysCalibration+/-
ConductorJacketTemperature RangeStandard
LimitsSpecial
LimitsIron (+) vs. Constantan(-)JXWhite/RedBlack0°C to +200°C±2.2°C±1.1°CCHROMEL (+) vs. ALUMEL (-)KXYellow/RedYellow0°C to +200°C±2.2°C±1.1°CCopper(+) vs. Constantan(-)TXBlue/RedBlue-60°C to +100°C±1.1°C± .5°CCHROMEL(+) vs. Constantan(-)EXPurple/RedPurple0°C to +200°C±1.7°C±1.1°C


PVC-PVC Physical Properties:

CharacteristicsInsulationJacketAbrasion ResistanceGoodGoodCut Through ResistanceGoodGoodMoisture ResistanceExcellentExcellentSolder Iron ResistancePoorPoorService Temperature

105ºC continuous

150ºC single

105ºC continuous

150ºC single

Flame TestSelf-extinguishingSelf-extinguishing

Package&Payment:
ANSI Standard Type K 2X0.5mm Cross Section Nicr/Nial Alloy Wire Thermocouple Extension CableANSI Standard Type K 2X0.5mm Cross Section Nicr/Nial Alloy Wire Thermocouple Extension Cable

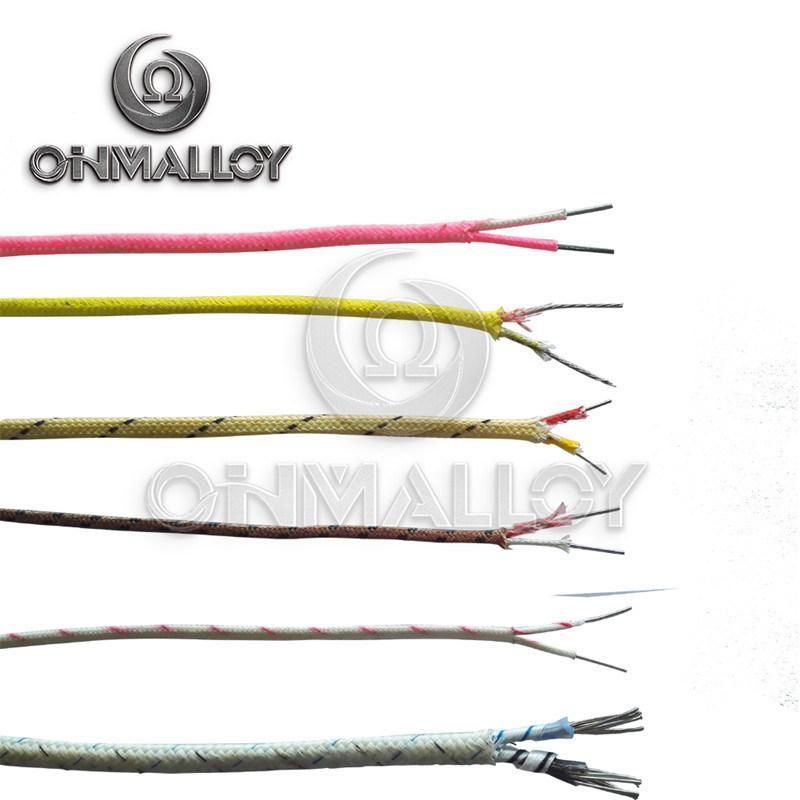

Products&Package:
ANSI Standard Type K 2X0.5mm Cross Section Nicr/Nial Alloy Wire Thermocouple Extension Cable
ANSI Standard Type K 2X0.5mm Cross Section Nicr/Nial Alloy Wire Thermocouple Extension Cable
ANSI Standard Type K 2X0.5mm Cross Section Nicr/Nial Alloy Wire Thermocouple Extension Cable
