• Model NO.：RVMV-K Power Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, SGS
• Model：Rvmv-K
• Brand：Hongda
• Standard：IEC 60502, IEC 60332
• Rated Voltage：0.6,1 Kv
• Armour：Swa (Awa for Single Core)
• Conductor：Class 5 Copper Conductors to En60228
• Transport Package：Drum or as Customer Require
• Specification：1.5mm2 to 400mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：800km,Month

Basic Info.

Model NO. RVMV-K Power Cable Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, SGS Model Rvmv-K Brand Hongda Standard IEC 60502, IEC 60332 Rated Voltage 0.6/1 Kv Armour Swa (Awa for Single Core) Conductor Class 5 Copper Conductors to En60228 Transport Package Drum or as Customer Require Specification 1.5mm2 to 400mm2 Trademark Hongda Origin China HS Code 8544492100 Production Capacity 800km/Month

Product Description

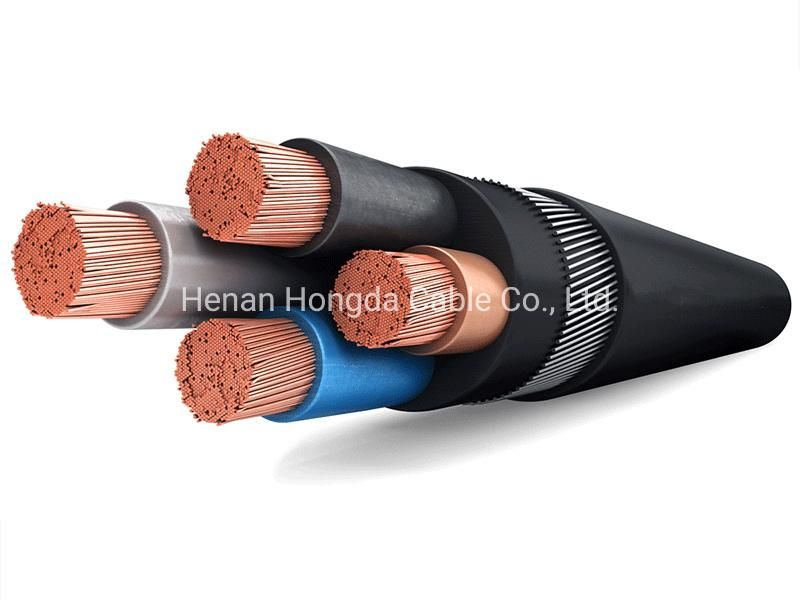

0.6/1kV flexible copper conductors Multicore Armoured Cable RVMV-K Power Cable

RVMV-K Power Cable

RVMV-K flexible, armoured power cable suitable for use in hazardous areas such as petrochemical plants due to its excellent mechanical protection and crush resistance.

Applications

RVMV-K cable suitable for installation in potentially explosion hazard locations, eg petrol stations, petrochemical plants. In addition it offers excellent mechanical protection and crush resistance offering highly protected power transmission eg street lighting.



Cable Construction

Conductors: Class 5 copper conductors to EN60228
Insulation: XLPE
Bedding: PVC
Armour: SWA (AWA for single core)
Sheath/Jacket: PVC
Colour: Black
Voltage: 0.6/1kV
Operating temperature: Maximum +90°C, minimum -15°C
Standard: IEC 60332 Tests on electric and optical fibre cables under fire conditions
IEC 60502: Power cables with extruded insulation and their accessories for rated voltages from 1kV to 30kV

Colour Code

1 Core	natural
2 Cores	blue & brown
3 Cores	brown, black and gray
3 Cores ground	blue, brown & green/yellow
4 Cores	brown, black, gray, blue
4 Cores ground	brown, black, gray & green/yellow
5 Cores	brown, black, gray, blue, yellow & green
Above 5 Cores	Black Cores with White numerals

Other colours can be manufactured upon request.

Designation:
R - XLPE insulation
V - PVC bedding
M - Steel wire armour
V - PVC sheath
-K - Flexible conductor

No. of cores	Conductor size mm2	Diameter overall mm	Weight kg/km
1	6	12.0	217
1	10	12.8	265
1	16	13.6	336
1	25	15.6	469
1	35	16.8	583
1	50	18.2	719
1	70	19.9	949
1	95	23.6	1353
1	120	25.6	1623
1	150	27.5	1933
1	185	29.7	2358
1	240	32.7	2967
2	1.5	13.1	314
2	2.5	14.0	362
2	4	14.9	423
2	6	16.5	533
2	10	17.9	658
2	16	19.4	750
3	1.5	13.6	343
3	2.5	14.5	398
3	4	15.9	489
3	6	17.2	603
3	10	18.6	764
3	16	20.4	996
3	25	26.2	1740
3	35	29.2	2180
3	50	32.9	2800
4	1.5	14.5	383
4	2.5	15.4	452
4	4	16.9	558
4	6	18.0	692
4	10	19.8	892
4	16	23.4	1491
4	25	28.9	2100
4	35	31.7	2650
5	1.5	15.1	418
5	2.5	16.4	509
5	4	17.8	628
5	6	19.4	769
5	10	23.1	1349
5	16	25.5	1766
5	25	31.0	2460
6	1.5	16.1	485
7	1.5	17.0	536
10	1.5	18.1	620
12	1.5	18.8	680
16	1.5	22.5	1112
19	1.5	23.2	1190
24	1.5	25.2	1373
27	1.5	26.4	1489
30	1.5	27.3	1574

Packing & Shipping:

Packing
Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping Port:
Shanghai, Qingdao, Tianjin or other ports as per your requirements.

Sea freight:
FOB/C&F/CIF/DAP quotation are all available.


Whilst HONGDA CABLE plc endeavours to ensure the information on the website, specification sheets and all other technical information is accurate, the information is for guidance only and it is subject to change without notice or liability. HONGDA Cable Plc is not responsible for the consequences of any inadequacies, inaccuracies or other deficiencies contained therein. When selecting cable accessories, please note that the actual cable dimensions may vary due to manufacturing tolerances.
