• Model NO.：Aerial Bundled Cables
• Material Shape：Round Wire
• Range of Application：LSOH
• Certification：ISO9001, CE, RoHS
• Brand：Hanli
• Transport Package：100m, 200m, 1000m
• Trademark：KUAYUE
• Origin：Zhejiang
• Production Capacity：2000000m,Month

Conductor (for either phase, neutral or street lighting)The conductors shall be of aluminium 1350 wires and are compacted circular stranded(RM).InsulationXLPE. 1, 2 and 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm² and a minimum of 16 ribs for cores above 50 mm². In the case of five core bundles the surface of the protective core should be smooth.Assembly2 up to 4 cores of equal cross section are stranded together in left-hand lay, additionally 1 or 2 cores of reduced cross section can be co-stranded.Technical DataRated voltagekV0.6/1Test voltageVeff kV4Laying temperature°Cmin. -20Operating temperature°C-30 ~ +80Conductor temperature°Cmax. +80Short-circuit temperature°C/smax. +130 /5Bending radius (min.)



18 × ø of cableDimensionsnumber of cores x nominal cross sectionmax. conductor- resistancemin. breaking load of conductor strandCurrent rating in the airOuter diameterTotal weightmm²Ohm/kmkNAmmkg/km1x 16 RM1,9102,57280741x 25 RM1,2004,0107901061x 35 RM0,8685,51321051381x 50 RM0,6418,01651181821x 70 RM0,44310,72051302521x 95 RM0,32013,72401543331x 120 RM0,25318,62901704081x 150 RM0,20623,23341905021x 185 RM0,16428,73892106111x 240 RM0,12537,24672408012x 16 RM1,9102,5721561472x 25 RM1,2004,01071802082x 35 RM0,8685,51322002772x 50 RM0,6418,01652353612x 70 RM0,44310,72052545052x 95 RM0,32013,72403036662x 150 RM0,20623,233438010044x 16 RM1,9102,5721882864x 25 RM1,2004,01072124304x 35 RM0,8685,51322415534x 50 RM0,6418,01652787464x 70 RM0,44310,720531810094x 95 RM0,32013,724037813324x 120 RM0,25318,629054416324x 50 + 1x 25 RM0,641/1,2008,0/4,0165/1073198144x 50 + 1x 35 RM0,641/0,8688,5/5,5165/1323198454x 70 + 1x 25 RM0,443/1,20010,7/4,0205/10736011054x 70 + 2x 25 RM0,443/1,20010,7/4,0205/10740012174x 95 + 1x 25 RM0,320/1,20013,7/4,0240/10741814384x 95 + 2x 25 RM0,320/1,20013,7/4,0240/10742015444x120 + 1x 25 RM0,253/1,20018,6/4,0290/1075902050

other cross-sections on request

Our Services
Welcome to visit our factory and  get our samples.
 Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel  free to contact me ,we will do our best for you.


Q1. What kind of products can your company supply?
 A: We specialize in supplying network cable, coaxial cable, fiber optical cable, telephone cable, speaker cable and etc.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF term.

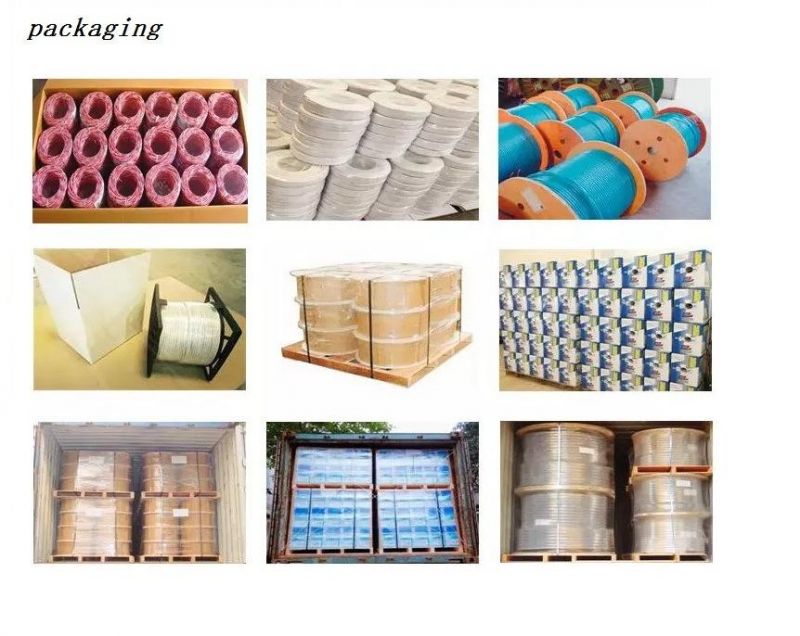

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
 A: Yes, we can.
