Armored Cable Mc Bx Teck90 Cable
Hebei Huatong Wires & Cables Group Co., Ltd.- Type:Insulated
- Conductor Type:Solid
- Application:Underground
- Conductor Material:Copper or Aluminum
- Sheath Material:PVC
- Insulation Material:PVC
Base Info
- Model NO.:TECK90
- Material Shape:Round Wire
- Range of Application:Commercial, Industrial
- Certification:ISO9001, CE, UL, CCC, RoHS, VDE
- Brand:Huatong
- Voltage:Low Voltage 600V, 2000V
- Armored Material:Aluminum,Steel Interlock
- Transport Package:Coils and Drums
- Specification:12AWG to 2000KCMIL
- Trademark:Renda
- Origin:China
- HS Code:8544492100
- Production Capacity:200000m,Month
Description
Basic Info.
Model NO. TECK90 Material Shape Round Wire Range of Application Commercial, Industrial Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Huatong Voltage Low Voltage 600V, 2000V Armored Material Aluminum/Steel Interlock Transport Package Coils and Drums Specification 12AWG to 2000KCMIL Trademark Renda Origin China HS Code 8544492100 Production Capacity 200000m/MonthProduct Description
•Use and installation
For concealed wiring in dry or wet locations For exposed wiring in dry or wet locationsFor exposed and wiring in dry, locations where subjected to corrosive action if suitable for corrosiveconditions encounteredFor exposed wiring where subjected to the weatherFor use in ventilated, Non-ventilated and ladder-type cable trays in dry or wet locationsFor direct earth burial (with protection as required by inspection authority)For service entrance above or below ground

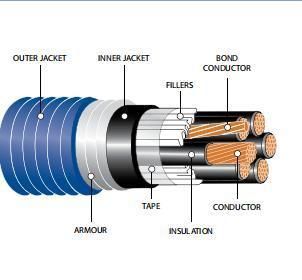

•Construction
Conductor:Class B Stranded copperInsulation:Cross-linked Polyethylene (XLPE) TypeRW90Bonding wire:Bare or stranded copperInner jacket:Polyvinyl Chloride (PVC), blackArmour:Aluminum interlocked armorOur jacket:Polyvinyl Chloride (PVC), blackVoltage:1000VTemperature:Rated-40°C~90°CStandard:CUL1569CSA Standard C22.2 No. 131, No.38 andNo.2256, RoHSArmor | Interlocked Aluminum Strip |
Inner Conductor | Solid/ Stranded Copper |
Conductor Insulation | THHN/ THWN OR XHHW-2 |
Assembly Covering | Polypropylene Tape |
Temperature Rating | ≤ 90 (dry); ≤ 75 (wet) |
Grounding | Insulated Green Grounding Conductor |
Voltage Rating | 600V |
