Double Steel Tape Armoured Cable Optic Fiber
TOPNET (SHENZHEN) COMMUNICATION CO.,LTD- Application：Communication
- Type：Single-mode Fiber
- Connection Structure：SC
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：GYTA53
- Core：Multicore
- Certification：RoHS, ISO9001, CPR
- Brand：OEM
- Sheath Material：HDPE

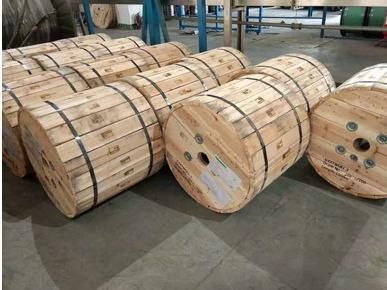

- Transport Package：Fumigated Wooden Drum
- Specification：8.0mm,9.0mm,10.0mm,11.0mm
- Trademark：OEM
- Origin：China
- HS Code：8544700000
- Production Capacity：8000km Per Month
Description
Cable modelNumber of fibers Number of casings Number of filled ropes Cable diameter Cable weight Allowable tensile force long/short Term Allow crushing force long/short Term Bending radius static / dynamic mm Kg/Km N N mm GYTA53-2~6 cores 2~6 1 4 9.7 90 600/1500 300/1000 10D/20D GYTA53-8~12 cores 8~12 2 3 9.7 90 600/1500 300/1000 10D/20D GYTA53-14~18 cores 14~18 3 2 9.7 90 600/1500 300/1000 10D/20D GYTA53-20~24 cores 20~24 4 1 9.7 90 600/1500 300/1000 10D/20D GYTA53-26~30 cores 26~30 5 0 9.7 90 600/1500 300/1000 10D/20D GYTA53-32~36 cores 32~36 6 0 10.2 104 1000/3000 300/1000 10D/20D GYTA53-38~48 cores 38~48 4 1 11 117 1000/3000 300/1000 10D/20D Bandwidth Effective modal bandwidth 10 Gb/s Link Length Conditions 1310/1550nm 850/1300nm 850/ 850nm 850nm Typical Maximum Typical Maximum 1300nm Unit dB/km dB/km dB/km dB/km MHz.km MHz.km m G652D 0.5/0.4 0.6/0.5 / / / / / G657A1 0.5/0.4 0.6/0.5 / / / / / G657A2 0.4/0.3 0.5/0.4 / / / / / G657B3 0.5/0.4 0.6/0.5 / / / / / 62.5/125 / / 3.5/1.0 3.5/1.5 ≥160/500 / / 50/125/ / / 3.0/1.0 3.5/1.5 ≥200/500 / / OM1 50/125/ / / 3.0/1.0 3.5/1.5 ≥500/500 / / OM2 OM3-150 / / 3.0/1.0 3.5/1.5 ≥700/500 ≥950 150 OM3-300 / / 2.5/0.8 3.0/1.0 ≥1500/500 ≥2000 300 OM4-550 / / 2.5/0.8 3.0/1.0 ≥3500/500 ≥4700 550
FAQ
1. Can I visit you?
-Sure,our factory is in Shenzhen ,China. Kindly contact us to make an appointment.
2. How long is your delivery time?
-Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. What is your payment terms?
-Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
4. How about the warranty?
-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
5. Can you produce according to the samples?
-Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
