• Model NO.：Double Insulated Cable
• Wire Core Material：Aluminum
• Certification：ISO, CCC
• Model：Al,XLPE,PVC
• Brand：OEM

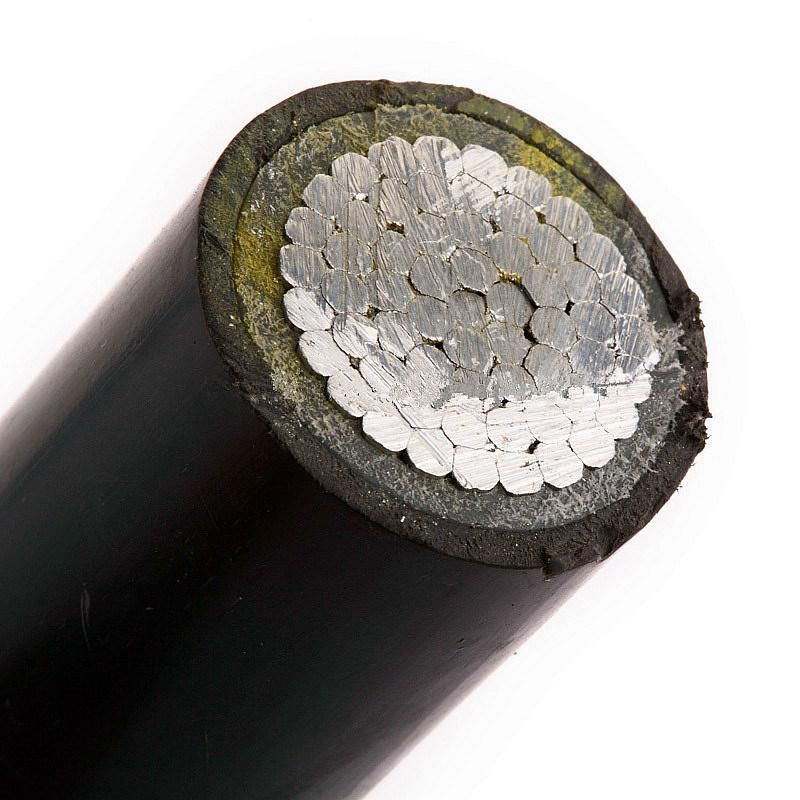

• Product Name：Double Insulated Aluminum Cable PVC Wire
• Conductor：Aluminum
• Number of Core：Single Core
• Packaging：Wooden Drum
• Transport Package：Wooden Drum
• Specification：1.5mm2 to 400mm2
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：500 Kilometer,Month

Basic Info.

Model NO. Double Insulated Cable Wire Core Material Aluminum Certification ISO, CCC Model Al/XLPE/PVC Brand OEM Product Name Double Insulated Aluminum Cable PVC Wire Conductor Aluminum Number of Core Single Core Packaging Wooden Drum Transport Package Wooden Drum Specification 1.5mm2 to 400mm2 Trademark OEM Origin China(Mainland) HS Code 8544492100 Production Capacity 500 Kilometer/Month

Product Description

Applications

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

Construction

Conductors

The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium
alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.

Insulation

XLPE Insulation material and thickness shall be as per IEC 60502-1, XLPE material shall be Type A as per IEC 60502-1.

Outer Sheath

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free
compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available
on request.
