UL Standard High Temperature Wire Cable
Wuhan Elite Industry Co., Ltd.- Type：High Temperature Cable
- Conductor Type：Strands
- Conductor Material：Copper
- Sheath Material：Teflon
- Insulation Material：Teflon
- Material Shape：Round Wire
Base Info
- Model NO.：AWG 8-30
- Range of Application：Cold-Resistant
- Certification：ISO9001, CE, UL
- Colour：Black,White,Red,etc
- Package：100,200,305,610m Per Roll
- Conductor：Copper or Pure Nickel
- ISO：Yes
- Lead Time：10-15 Working Days
- Transport Package：in Roll, Spool+Carton
- Specification：AWG 24, 22, 20, 18, 16, 14, 12
- Trademark：no
- Origin：China
- HS Code：8544491900
- Production Capacity：10, 0000 Meters
Description
Electrical CharacteristicPacking AWG Conductor construction NO.×mm Diameter mm Insulation Thickness mm Over Diameter mm Conductor Resistance 20°C ohm/km Permissible ampacity 20°C -AMR m/roll 30 1×0.254 0.25 0.33 0.91 361 0.66 610 28 1×0.32 0.32 0.33 0.98 227 1.06 610 26 7×0.160 0.49 0.33 1.15 143 1.68 305 26 19×0.100 0.50 0.33 1.16 143 1.68 305 24 7×0.200 0.61 0.33 1.27 89.3 26.9 305 24 19×0.120 0.60 0.33 1.26 89.3 26.9 305 22 7×0.250 0.76 0.33 1.42 56.4 4.26 305 22 19×0.150 0.76 0.33 1.42 56.4 4.26 305 20 7×0.310 0.95 0.33 1.61 35.2 6.82 305 20 19×0.190 0.96 0.33 1.62 35.2 6.82 305 18 7×0.390 1.19 0.33 1.85 22.2 10.81 305 18 19×0.235 1.18 0.33 1.84 22.2 10.81 305 16 7×0.500 1.53 0.33 2.19 14 17.14 305 16 19×0.300 1.51 0.33 2.17 14 17.14 305 14 19×0.370 1.86 0.33 2.52 8.78 27.33 200 12 19×0.460 2.32 0.33 2.98 5.53 43.4 200 10 37×0.430 3.02 0.33 3.68 3.48 68.97 100

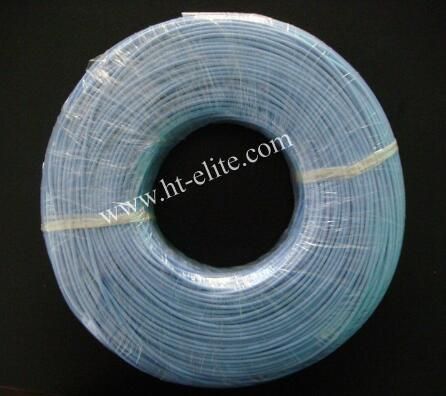

5. Packing Methods

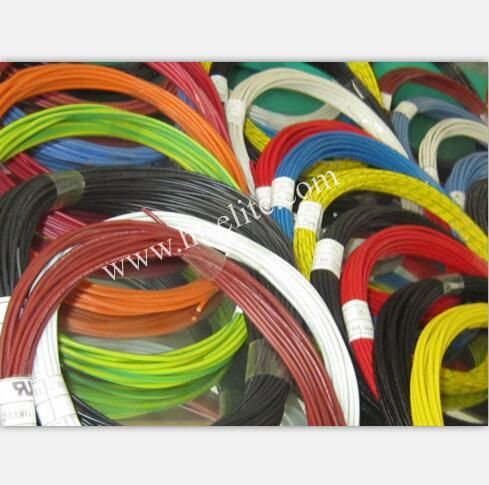

6. Photos for Reference
5. Packing Methods
6. Photos for Reference
