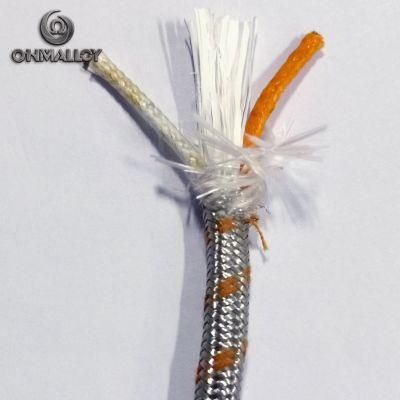

Jx High Quality Silicone Rubber Thermocouple Type J Extension Cable Class I Accuracy ANSI
Ohmalloy Material Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Temperture Measurement
- Conductor Material：+Iron -Constantan
- Sheath Material：Silicone Rubber
- Insulation Material：Rubber
Base Info
- Model NO.：SP-J-SR-SR-1.0R
- Material Shape：Round Wire
- Range of Application：Temperture Measurement
- Certification：ISO9001, RoHS
- Brand：Ohmalloy,OEM
- Name：Jx High Quality Silicone Rubber Thermocouple Type
- Thermocouple Type：Jx
- Conductor Size：14,0.3mm(1.0mm2)
- Accuracy：Class I(0~200 Degree Celsius)
- Color Code：DIN(+Red -Blue, Overall: Blue)
- MOQ：500 Meters
- Transport Package：Coil,Spool+Paper Carton+ Wooden Pallet
- Specification：14,0.3mm
- Origin：China
- HS Code：85444929
- Production Capacity：100000 Meters , Month
Description
Water Package Reference
SubmersionOverall Conductors PP PVC PVC -40 to 105oC
-40 to 221oFGood Excellent Good FF FEP® or Neoflon FEP® -200 to 200oC
-338 to 392oFExcellent Good Excellent TT PFA® or Neoflon PFA® -267 to 260oC
-450 to 500oFExcellent Good Excellent TG Glass Braid PFA ® -73 to260oC
-100 to 500oFGood Good Excellent GG Glass Braid Glass
Braid-73 to 482oC
-100 to 900oFPoor Good Poor HH High Temp Glass Braid High Temp Glass Braid 73 to 704oC
-100 to 1300oFPoor Good Poor XS Silicon Silicon -73 to 1038oC
-100 to 1990oFPoor Good Poor TFE TFE® TFE ® -267 to 260oC
-450 to 500oFExcellent Good Excellent
