RG6+2c Coaxial Cable with Power Cable for CCTV CATV Siamese Cable

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Coaxial Cable
  • Conductor Material：Copper
  • Cover Material：PE
  • Type：Coaxial Cable
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：RG6+2C
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CCC
  • Model：RG6+2c
  • Brand：Hanli
  • Color：Black
  • Shield：Al Foil+Braiding
  • Length：305m
  • Power Wire：0.1-0.16 CCA,Bc
  • Transport Package：100m,200m,305m Per Roll
  • Specification：32.5*32.5*33.5cm
  • Trademark：Hanli
  • Origin：Zhejiang
  • Production Capacity：1500km,Week

Description

Impedance75±5OhmNominal capacitance53pF/mVelocity of propagation66%Insulation resistance>2000Mohm.KmInner conductor resistance13.5Ohm/KmOuter conductor resistance24.1Ohm/KmOperating temperature range-30°C-+70°CCable weight(approx.)116.4-140.4Kg/KmFrequency(MHz)Attenuation(dB/100m)Attenuation(dB/100ft)503.10.951004.21.282506.82.073007.52.293507.92.414008.52.594509.12.775009.52.955010.13.0860010.53.275012.13.6986013.24.02100014.34.36145018.65.672050237.01Packing
RG6+2c Coaxial Cable with Power Cable for CCTV CATV Siamese Cable

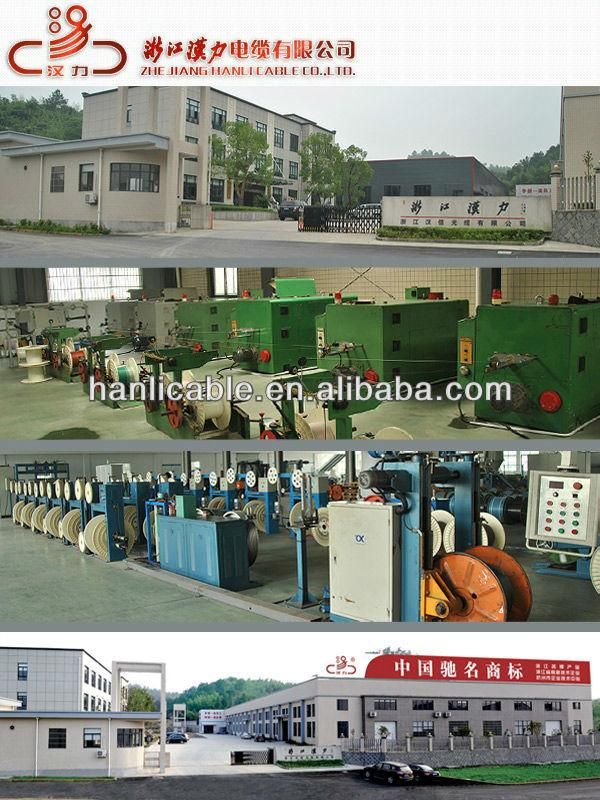

Company Information
