• Model NO.：AAAC
• Material Shape：Round Wire
• Range of Application：Power Transmission
• Certification：ISO9001, CCC
• Brand：Yifang
• Certificate：ISO CCC CE Kema
• Material：6201 All Aluminum Alloy Wire
• Standard：DIN 48201 ASTM B399 IEC 61089
• Nos of Wire：7
• Transport Package：Drums or According to Your Request
• Specification：50 100
• Trademark：Yifang
• Origin：China
• HS Code：7614900000
• Production Capacity：10000000km

Basic Info.

Model NO. AAAC Material Shape Round Wire Range of Application Power Transmission Certification ISO9001, CCC Brand Yifang Certificate ISO CCC CE Kema Material 6201 All Aluminum Alloy Wire Standard DIN 48201 ASTM B399 IEC 61089 Nos of Wire 7 Transport Package Drums or According to Your Request Specification 50 100 Trademark Yifang Origin China HS Code 7614900000 Production Capacity 10000000km

Product Description

Bare AAAC 50 100 Conductor


1. Application

All Aluminum Conductor (AAC)
Aluminum Conductor Steel Reinforced (ACSR)
All Aluminum Alloy Conductor (AAAC)
All Steel Stranded Conductor (ASSC)
All Aluminum Conductor Alloy Reinforced (AACAR)
All aluminum conductor is in accordance with BS215-1-70 (AAC)

 Conductor(AAC,AAAC and ACSR) electronic cable have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

AAC - All Aluminium Conductor is made up of one or more strands of hard drawn 1350 Aluminium Alloy. Because of its relatively poor strength-to-weightratio, AAC has had limited use in transmission lines and rural distribution because of the long spans utilized. However, AAC has seen extensive use in urban areas where spans are usually short but high conductivity is required. The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas.

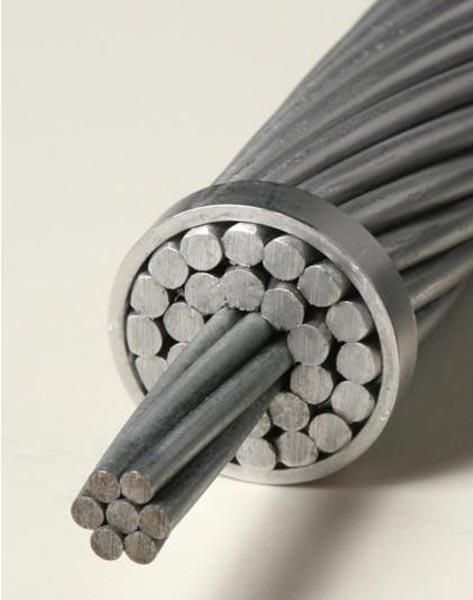

ACSR - Aluminium Conductor Steel Reinforced consists of a solid or stranded steel core surrounded by one or more layers of strands of 1350 aluminium. The high-strength ACSR 8/1, 12/7 and 16/19 strandings, are used mostly for overhead ground wires, extra long spans, river crossings, etc. The inner core wires of ACSR may be of zinc coated (galvanized) steel.



AAAC(1120) - A high strength Aluminium-Magnesium-Silicon Alloy cable was developed to replace the high strength 6/1 ACSR conductors. This alloy conductor offers excellent electrical characteristics, excellent sag-tension characteristics and superior corrosion resistance to that of ACSR.



Equivalent aluminum alloy conductors have approximately the same ampacity and strength as their ACSR counterparts with a much improved strength-to-weight ratio,and also exhibit substantially better electrical loss characteristics than their equivalent single layer ACSR constructions. The thermal coefficient of expansion is greater than that of ACSR.

As compared to ACSR, AAAC's ligher weight, comparable strength and current carrying capacity, lower electrical losses and superior corrosion resistance have given this conductor wide acceptance as a distribution conductor. It hasfound limited use, however, as at ransmission conductor.

Our company

Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.

Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.

Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.


Our certificate


FAQ

1.Q:Are you a factory or trading company?
 A: Manufacturing base in Henan ,China, with more than 500 workers.

2.Q:How can I visit there?
 A: Sure,If you need,we will arrange the driver to pick you up.

3.Q:How can I get some samples?
 A: Contact me on below,Determin sample and address for shipping.


4.Q:Have you ever supplied cables to our country?
 A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.

5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.

6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.

7.Q:How long is your delivery time?
 A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
