4 Port AV RCA Switch 4 in 1 out Composite Video L/R Selector Box for DVD Player
Elandphone Electronic Co., Ltd.- Application:Multimedia, DVD Player, Speaker, Computer, Monitor, Telephone, iPod, Microphone, Game Player
- Color:Black
- Type:Coaxial
- Species:AV
- Connector:RCA
- Material Shape:Round Wire
Base Info
- Model NO.:EL-A322
- Wire Core Material:Bare Copper Wire
- Certification:RoHS, CE
- Brand:Computer
- Transport Package:Color Box
- Specification:Rectangle
- Trademark:neutural
- Origin:China
- Production Capacity:5000PCS,Week
Description
Basic Info.
Model NO. EL-A322 Wire Core Material Bare Copper Wire Certification RoHS, CE Brand Computer Transport Package Color Box Specification Rectangle Trademark neutural Origin China Production Capacity 5000PCS/WeekProduct Description

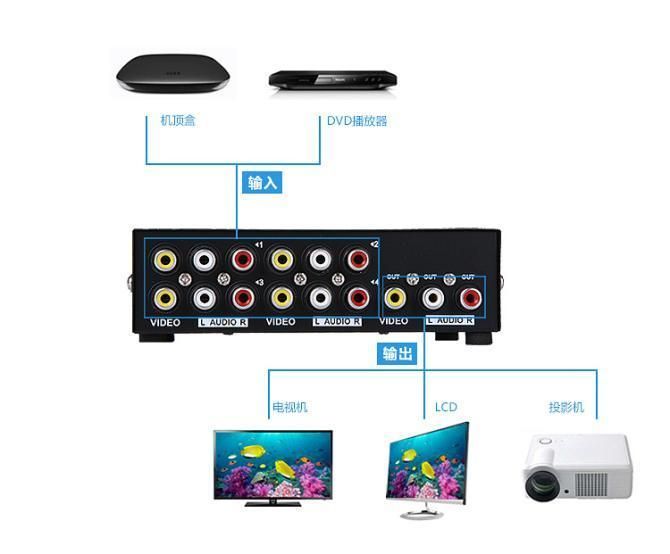

DescriptionThis E-SDS AV switch allows you to connect multiple video devices with AV out (such as Wii,,, PS2, Cable Box) to one set of standard yellow-white-red RCA connectors of your TV using AV cables. Then you will be able to easily switch the input signal without the need to disconnect and re-connect your AV devices.
Features
- Color: Black.
- Material: Metal shell.

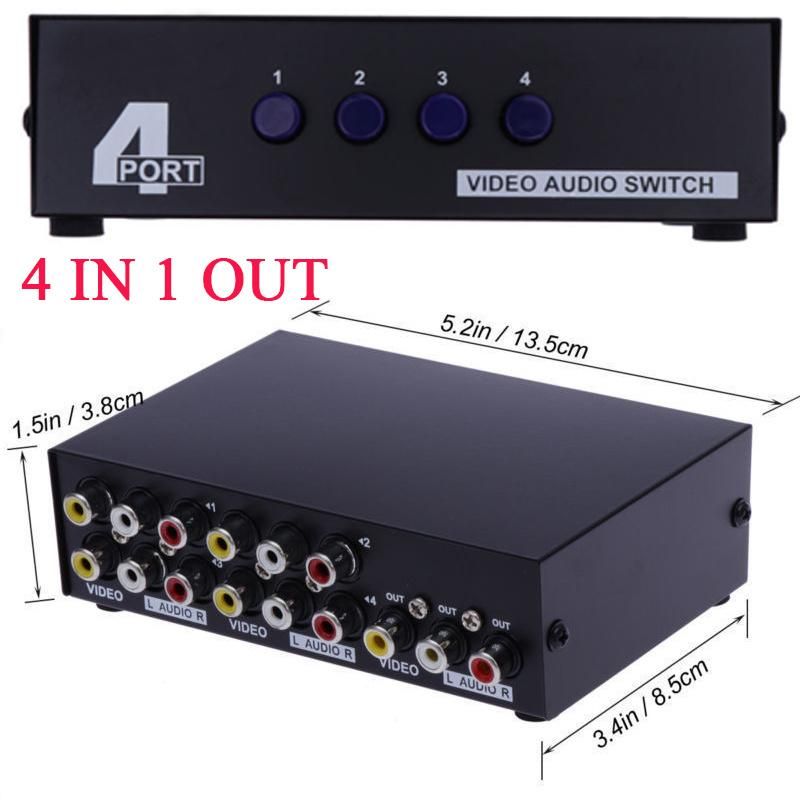

- Size: Approx. 13.5*8.3*3.8 cm/5*3*1.4 inch(L*W*H).
- 4-way AV RCA Audio Video Switcher Selector for PS2 PS3 Wii Cable Box to TV's yellow-white-red RCA connectors.
- Simple push-button switching.
- Metal enclosure, excellent stability and longevity.
- Easy installation and operation. extra power supply and software drive needed.
- Specifications:
1. Video
Input level Resistance: 0.8-1.0Vp-p/75Ω
Output level Resistance: 0.8-1.0Vp-p/75Ω
Bandwidth: 50Hz-5.5MHz
Input Connector: 4
Output Connector: 1
2. Audio
Input level Resistance: 2V(RMS)/47KΩ
Output level Resistance: 2V(RMS)/1KΩ
Frequency: 10Hz-20KHz,0db
Input Connector: 4 (R+L)
Output Connector: 1 (R+L)
1* MT-431AV 4-Way AV Switch RCA
