Affortable Fusion Splicer Device T-207X/H
Nanjing Tianxingtong Electronic Technology Co., Ltd.- Application：Communication, Sensor, Probe
- Type：Single-mode Fiber
- Connection Structure：FC-FC
- Certification：CE, ISO9001, SGS
- Applicable Fibers：Sm, Mm, Nz-Ds, Edf, Pigtail, Rubber-Insulated Wire
- Average Splice Loss：0.02dB(Sm), 0.01dB(Mm), 0.04dB(Nzds), 0.04dB(Edf)
Base Info
- Model NO.：T-207
- Return Loss：>60dB
- Protection Sleeve Length：20mm, 40mm, 60mm
- Language：Chinese, English
- Tension Test：2.0n 200gf Standard
- Dimension：155mm(W) *165mm( D) * 150mm(H)
- Weight：2.5kg
- Transport Package：Carton
- Specification：CE, SGS, CSI, ISO9000
- Trademark：skycom
- Origin：Nanjing, China
- Production Capacity：500PCS,Month
Description
Basic Info.
Model NO. T-207 Return Loss >60dB Protection Sleeve Length 20mm, 40mm, 60mm Language Chinese, English Tension Test 2.0n 200gf Standard Dimension 155mm(W) *165mm( D) * 150mm(H) Weight 2.5kg Transport Package Carton Specification CE, SGS, CSI, ISO9000 Trademark skycom Origin Nanjing, China Production Capacity 500PCS/MonthProduct Description

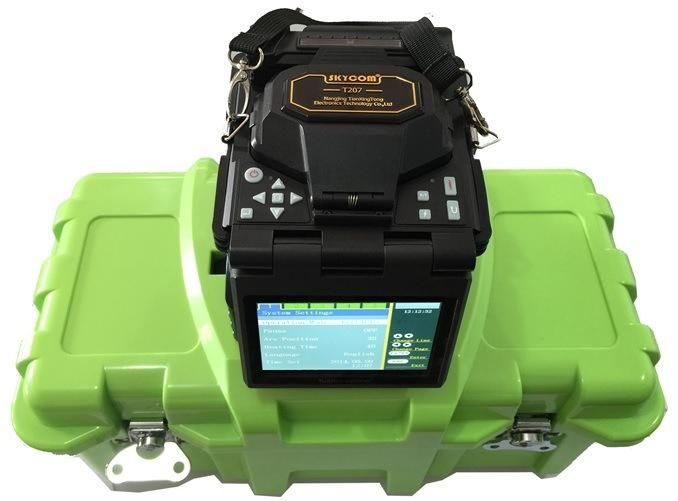

Affortable Fusion Splicer Device T-207X/H
Main Features:
l 5 inches high Resolution colorful LCD display, image can be turned according to position
l Average splice time: 10 second
l Average tube-heat time: 30 second
l Lithium battery: 6AH and up to 200 times of continuous splice and heat after fully charged
l Simultaneous X and Y views with 400 times magnification
l Cutting-edge technology for image processing
l New developed technology providing strong wind and dust resistance
l Working mode:Auto & Manual & Full-Automation
l USB Port
l Storing 6,000 groups of latest splice results.
l Multipurpose optical fiber fixture can be flexible replaced & Various kinds of joint be produced now
l Convenient clamps shift and joint fabrication on site
Applicable Fibers | SM, MM, NZ-DS, EDF AND OTHERS |
Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Return Loss | ≥ 60dB |
Tension Test | 2.0N(200gf) ( Standard ) |
Splicing Program | 50 groups |
Heat-shrinkable T Bush | 20mm, 40mm, 60mm |
Language | Chinese, English |
Environmental Conditions | -10 ~ +50 ° C (operation temperature), 0 ~ 95% RH(humidity), 0 ~ 5000m(altitude) |
Power Supply | AC adaptor: 100 ~ 240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Battery: 12V voltage 8AH |
Dimensions | 155 ( W ) *165 ( D ) *150 ( H ) |
Weight | 2.5kg |
Standard Package
No. | Item | Quantity |
1 | M achine (T-207) | 1 |
2 | Fiber Cleaver (601-1071) | 1 |
3 | Fiber Stripper | 1 |
4 | AC Adaptor (602-120500D) | 1 |
5 | Battery (603-1072) | 1 |
6 | Charger (602-126250W) | 1 |
7 | Spare Electrodes | 1 |
8 | Cooling Tray | 1 |
9 | Instruction CD | 1 |
10 | Quick Reference Guide | 1 |
11 | Transit Case with Carrying Strap | 1 |
