• Model NO.：Cu,PVC,PVC Contorl Cable, Cu,PVC,CTS,PVC Control
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC, ISO9001,ISO14001, CCC, Ce
• Brand：Gdyg
• Transport Package：Wooden Reel, Steel Reel
• Specification：10-1500 mm2
• Trademark：GDYG
• Origin：Guangdong, China
• HS Code：7614100000
• Production Capacity：4600 Tons Per Month

Basic Info.

Model NO. Cu/PVC/PVC Contorl Cable, Cu/PVC/CTS/PVC Control Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CCC, ISO9001,ISO14001, CCC, Ce Brand Gdyg Transport Package Wooden Reel, Steel Reel Specification 10-1500 mm2 Trademark GDYG Origin Guangdong, China HS Code 7614100000 Production Capacity 4600 Tons Per Month

Product Description

Basic Info:
Type: Control Cable
Conductor Type: Stranded or Solid
Application: Controlling, monitoring and protective system
Conductor Material: Copper
Sheath Material: PVC
Insulation Material: XLPE, PVC
Model No: Cu/PVC(XLPE)/PVC Control Cable
Material Shape: Round Wire
Certificate: ISO9001,ISO14001, CCC, CE
Brand Name: GDYG
HS Code: 7614100000
Feature: Simple Construction, Easy Installation, Excellent Electric and Mechanical and Conductive etc
Supply Record: African countries, Arabian countries, Asian countries etc.
Origin: Guangdong, China

Construction Drawing
1.Conductor 2.Conductor screen (no light type)3.Filler
4.Wrapping tape
5.Copper tape screen
6.Sheath
7.Extruded or lapped bedding
8.Double steel tape armour
Application:
Plastic insulated control cables are used for connecting electrical equipments. It applies to controlling, monitoring and protective system with A.C. rated voltage U₀ /U up to and including 450/750V.

Product Features:
The main features of the flame retardant PVC control cable is hard to get fire or that the continuous burning of cables is very limited when it is on fire. It applies to the places with special demands of flame retardant property.

Fire-resistance cable can operate normally for some time when it is burning except that it can transmit electrical power under normal condition. It is used in the places necessary to resist fire.

Main Technical Parameter
KVV,  ZC-KVV

Number of cores  x Nominal cross-section mm2	Kind of  conductor	Reference  outside diameter  of cable  mm	Reference weight of cable kg/km	Max.D.C.   resistance  at 20ºC Ω/km	Min.insulation   resistance     at 70ºC MΩ·km
2 x 0.75	1	7.2	61	24.5	0.012
2 x 0.75	2	7.5	65	24.5	0.014
2 x 2.5	1	9.6	124	7.41	0.01
2 x 2.5	2	10.2	135	7.41	0.01
2 x 10	2	15.7	377	1.83	0.0065
5 x 0.75	1	8.7	101	24.5	0.012
5 x 0.75	2	9.1	108	24.5	0.014
5 x 2.5	1	12.7	247	7.41	0.01
5 x 2.5	2	13.4	267	7.41	0.01
5 x 10	2	20.4	769	1.83	0.0065
10 x 0.75	1	11.6	176	24.5	0.012
10 x 0.75	2	12.2	189	24.5	0.014
10 x 2.5	1	17.2	447	7.41	0.01
10 x 2.5	2	18.2	483	7.41	0.01
10 x 10	2	28.4	1452	1.83	0.0065
30 x 0.75	1	17.6	450	24.5	0.012
30 x 0.75	2	18.6	483	24.5	0.014
30 x 2.5	1	26	1167	7.41	0.01
30 x 2.5	2	27.6	1262	7.41	0.01
61 x 0.75	1	23.8	857	24.5	0.012
61 x 0.75	2	25.1	906	24.5	0.014
61 x 2.5	1	36	2320	7.41	0.01
61 x 2.5	2	38.3	2509	7.41	0.01

Our company

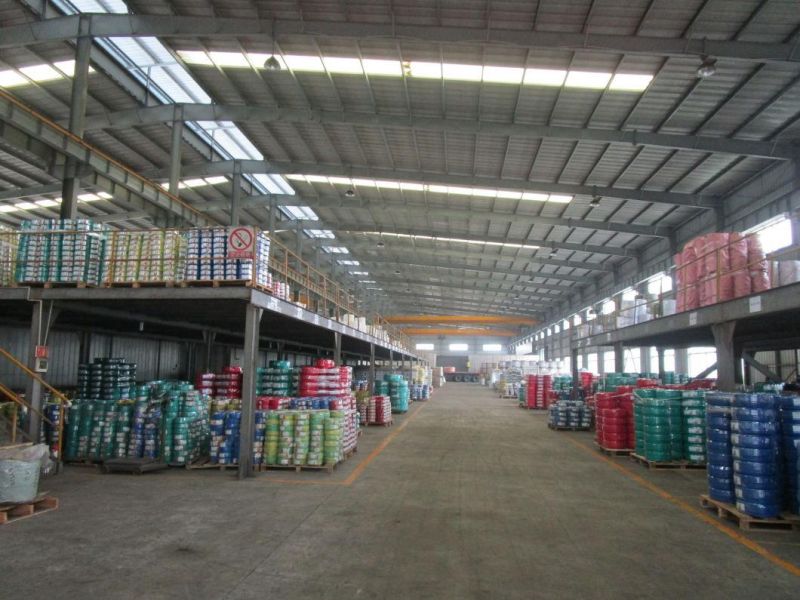

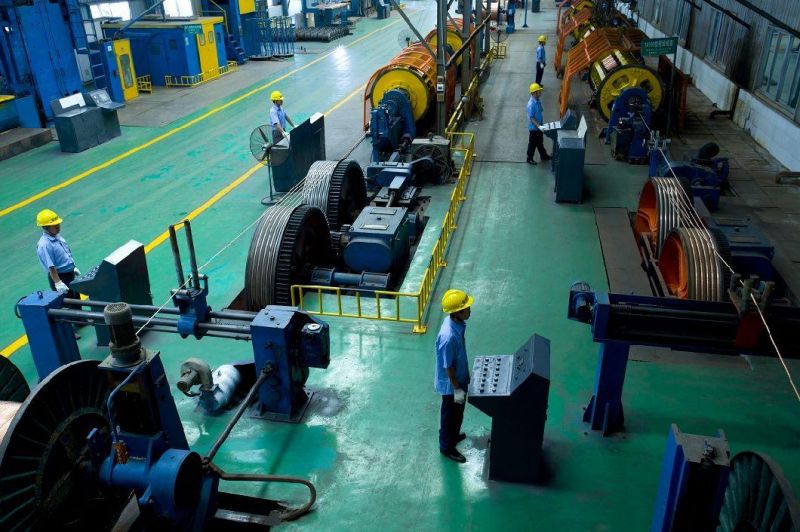

Factory & Warehouse
