Stripping Multifunctional Pliers, Used for Cable Cutting, Crimping Terminal 0.2-6.0mm, High-Precision Automatic Brand Hand Tool
Shine Peak Group (HK) Limited- Type：Wire Strippers
- Certification：CE, CCC
- Customized：Customized
- Condition：New
- Feature：Insulation
- Wire Stripping：10-24AWG 0.2-6.0mm2
Base Info
- Model NO.：sp-dg1
- Cutting Range：10-24AWG 0.2-6.0mm2
- Crimping：10-22AWG 0.5-6.0mm2
- Material：Carbon Steel
- Application：Wire Stripper,Cut Wire,Crimp Terminal
- Transport Package：Box
- Specification：small
- Trademark：shine peak
- Origin：China
- Production Capacity：100000000PCS,Month
Description
Basic Info.
Model NO. sp-dg1 Cutting Range 10-24AWG 0.2-6.0mm2 Crimping 10-22AWG 0.5-6.0mm2 Material Carbon Steel Application Wire Stripper/Cut Wire/Crimp Terminal Transport Package Box Specification small Trademark shine peak Origin China Production Capacity 100000000PCS/MonthProduct Description

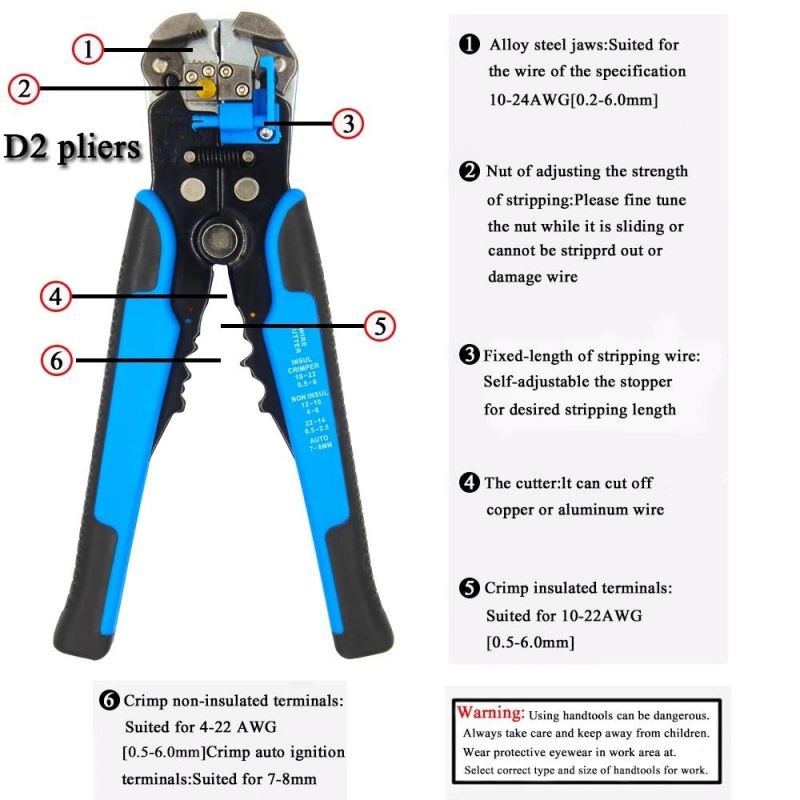

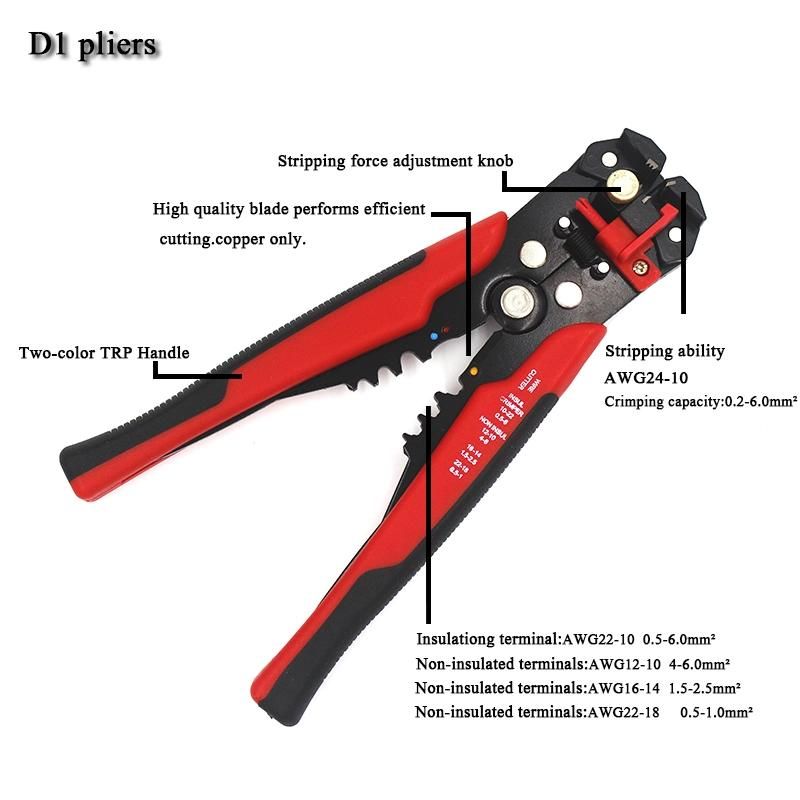

Features and specifications:

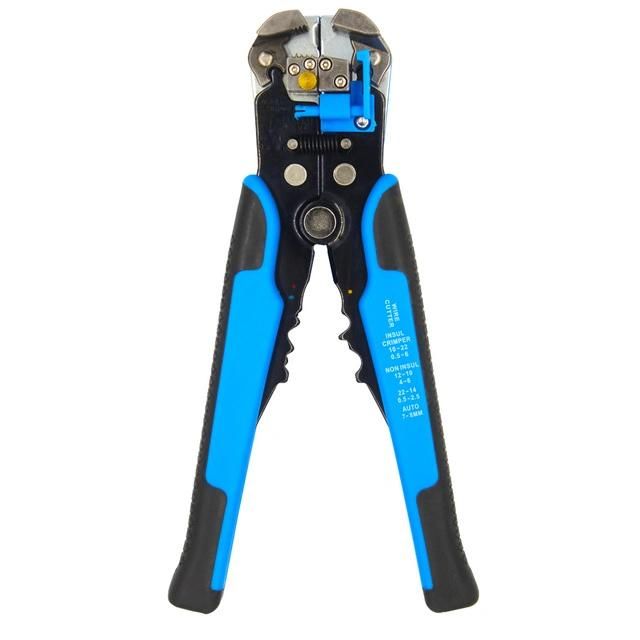

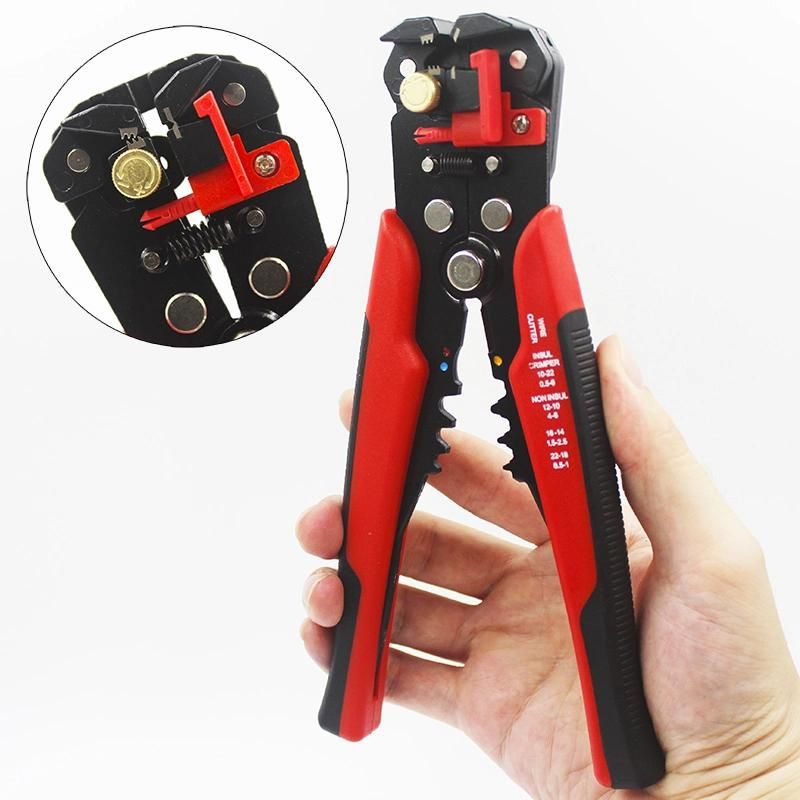

Product name: 8 inch multifunctional automatic wire stripper
Length: 205mm
Material: cutter head: zinc alloy cutter head: Cr12MoV, hardness HRC55-60, wire cutting process.
Pliers: A3 heat-treated handle: PP + TPR Features:
Stripping range: 24-10AWG / 0.2-6mm2;
Crimping of cutting function terminals: insulated terminals 22-10AWG/0.5-6mm2 non-insulated terminals 12-10AWG/4-6mm2 non-insulated terminals crimped: 16-14AWG/1.5-2.5mm2 non-insulated terminals crimped: 22-18AWG/0.5 -1mm2

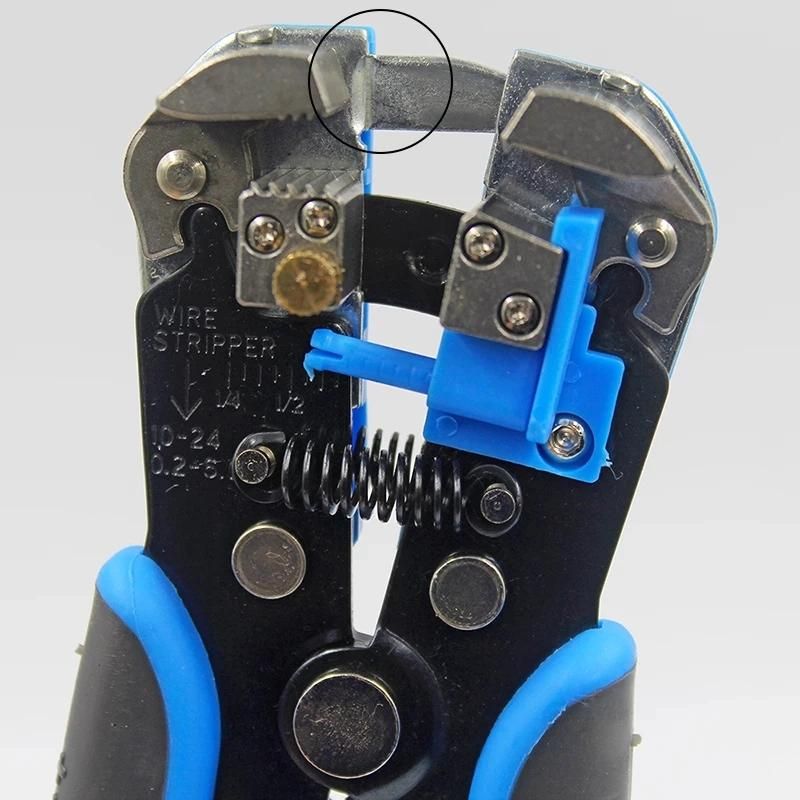

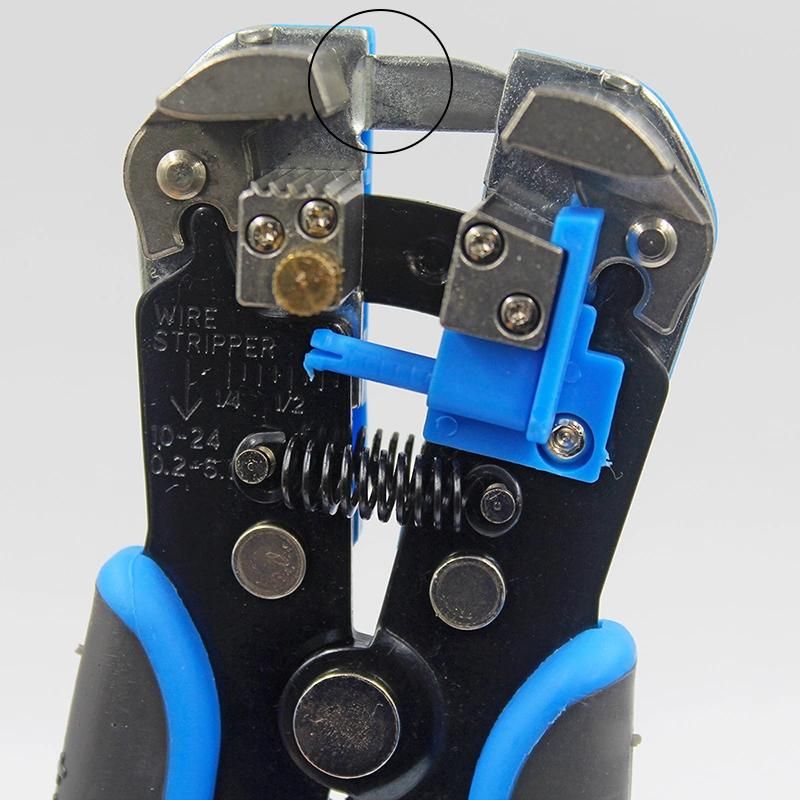

How to use the adjustment screw:
1. Rotate the adjustment screw to adjust the bite force of the blade, decrease counterclockwise, increase clockwise
2. When stripping the thin thread, adjust the screw counterclockwise.
3. If the wire is broken, please adjust the screw counterclockwise. 4. If it is difficult or impossible to peel off, please adjust the screw clockwise.
