AAC Aluminum Conductor 7 Strand 4/0AWG Oxlip

Henan Hongda Cable Co., Ltd.

Application：Overhead
Voltage：Low and Medium Voltage Cable
Current：DC & AC
Insulation Material：Bare
Sheath Material：Bare
Material Shape：Round Wire

Base Info

Model NO.：AAC Aluminum Conductor
Wire Core Material：Aluminum or Aluminum Alloy
Certification：ISO, CCC
Model：ACSR
Brand：OEM
Transport Package：Wooden Drum
Specification：2.5~400sqmm
Trademark：OEM
Origin：China(Mainland)
HS Code：76149000
Production Capacity：50 Kilometer,Month

Description

Technical Specifications:Size AWG:4/0Stranding:7Stranding Class:AAADiameter Individual Wire Aluminum (Inches):0.1739Diameter Complete Cable (O.D.) (Inches):0.522Cross Sectional Area (Sq. Inches):0.1662Weight Per 1000ft Total (Lbs.):198.6Rated Breaking Strength (Lbs.):3830Resistance DC 20°C Per 1000ft:0.0817Resistance DC 75°C Per 1000ft:0.0847Allowable Ampacity 90C (Amps):383 Amps

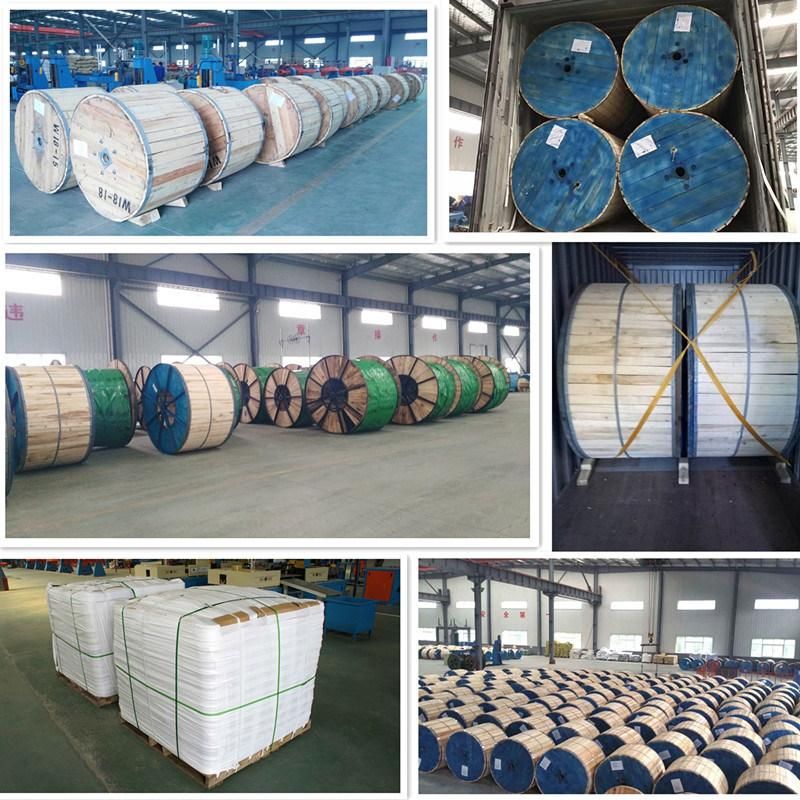

Packing & Shipping

AAC Aluminum Conductor 7 Strand 4/0AWG Oxlip

Any problem and inquiry pls contact with Tina
Phone number: +86-15737156317
