• Model NO.：YJLV: Al,XLPE,PVC
• Wire Core Material：Aluminum
• Certification：ISO, CCC
• Model：Yjlv: Al,XLPE,PVC
• Brand：Hongda
• Transport Package：Wooden Drum
• Specification：25~630sqmm, 3+1 core
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：1500km,Month

Basic Info.

Model NO. YJLV: Al/XLPE/PVC Wire Core Material Aluminum Certification ISO, CCC Model Yjlv: Al/XLPE/PVC Brand Hongda Transport Package Wooden Drum Specification 25~630sqmm, 3+1 core Trademark Hongda Origin China HS Code 8544492100 Production Capacity 1500km/Month

Product Description

1kv 3+1 Core XLPE Inuslated PVC Sheathed Cheap Aluminum Electrical Cable

Introduction
Low voltage 0.6/1kV XLPE (cross linked polyethylene) insulated cable constitutes the best cable for transmission and distribution lines because of its excellent electrical and physical properties. These cables have the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.

Standard
GB/12706-2008, IEC60502-1, IEC60228, IEC60332, BS 5467, IS 7098 etc.
Henan Hongda can also design and produce cables for special application requirement according to the standard you require.

Range of application
The cable is suitable for power transmission and distribution lines with rated power frequency voltage 0.6/1kV.

Instruction of application
4.1 Rated voltages: 0.6/1 kV
4.2 The ambient temperature for installation: ≥0ºC
4.3 Maximum conductor temperature in normal operation: 70ºC
4.4 Max operating temperature of con. When cable short-circuited(5s maximum duration): 160ºC
4.5 Permissible bending radius:
Single cable: [20(D+d)±5%]mm
Multi-core cable:[15(D+d)±5%]mm

Note: Henan Hongda can produce flame-resistance, fire-resistance,termite-proof, low smoke free halogen, low flame low halogen etc. power cable as customer required.

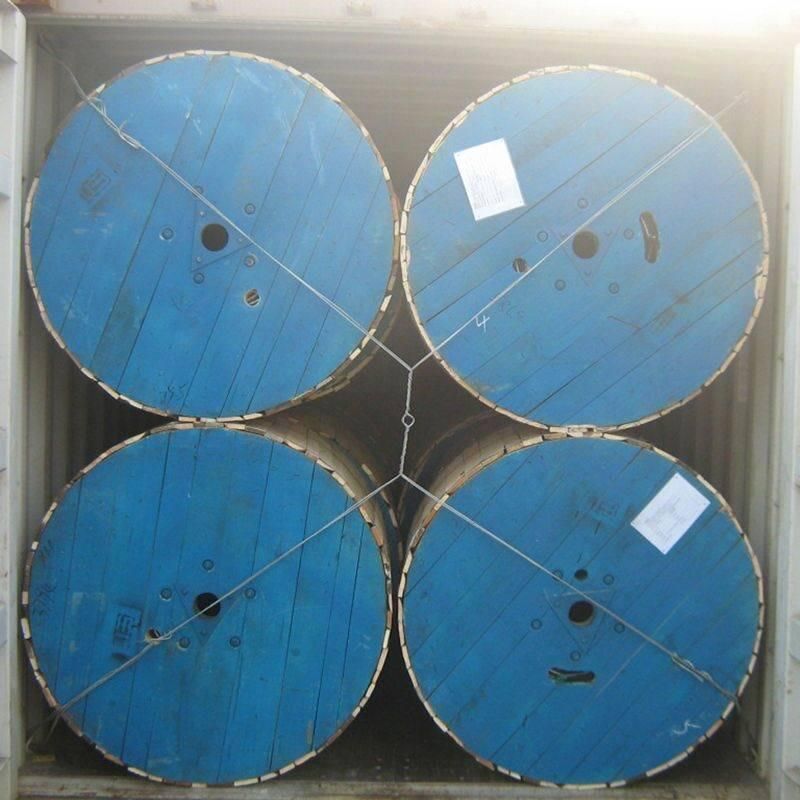

Packing & Shipping
We provide you with the best product packaging design services, thereby allowing you to save more shipping charges.



FAQ

1. Q: Are you the factory or the trading company?
    A: We are the factory.
2. Q: How long is your guarantee Period?
    A: We usually offer 1 year guarantee for our general products.
3. Q: How can I get the samples?
    A: We can make the sample order. And usually you will charge for it.
    But the samples fee will be return to you when you make the bulk order.
4. Q: Where is your factory? How can we visit your factory?
    A: Our factory located in Jiaozuo city, Henan Province and our office is in Zhengzhou city. You could reach here by train and by air. We can pick you up in the airport and the railway station.
5. Q: What is your MOQ?
    A: It`s base on the cable type or size. Please contact Ms. Melon. She will offer you the details.

Factory

Established in 2004, Henan Hongda Cable Co., Ltd, is dedicated into manufacturing various types of electric power wire and cable. Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.
Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.

Our Service

1. Design wire and cable according to your real application
2. Optimized reel size for freight cost saving
3. Customized package to feature your brand
4. Short lead time to meet your urgent demand
5. Diversified delivery terms for your options
6. Quick response (24 hours on line)
7. Professional knowledge for clear answer to your any question
8. Comprehensive technical documents to support your tender bidding
9. One-year limited warranty for our wire and cable
10. Cable sample available
11. Specify the cable only according to the location
12. OEM is available
13. Abundant cables and wires for your option
