90% Braiding RG6 Coaxial Cable CCTV Cable with Steel Messenger 18AWG CCS

Hangzhou Spring Electronics Co., Ltd.
  • Application:Coaxial Cable, LAN Cable, Fiber Optic Cable
  • Conductor Material:BC,CCS,CCA,TC,CU,CCAG
  • Cover Material:PVC
  • Type:RG6
  • Material Shape:Round Wire
  • Wire Core Material:Bare Copper Wire

Base Info

  • Model NO.:coaxial cable
  • Certification:CE, ISO
  • Transport Package:Packed by Carton,Wooden Drum,Wooden Pallet
  • Specification:Local Communication Cable, Coaxial Cable, LAN Cab
  • Trademark:OEM
  • Origin:Made in China
  • HS Code:8544200000
  • Production Capacity:24000km,Year

Description

90% Braiding RG6 Coaxial Cable CCTV Cable with Steel Messenger 18AWG CCS

RG6 Pure Copper Conductor CATV coaxial Cable

Construction Parameters:

Inner Conductor

0.040"/1.02mm/18AWG BC

Dielectric

0.180"/4.57mm Foamed PE

Shield 1

0.187"/4.75mm Bonded Aluminum Polyproylene

Shield 2

Aluminum braid wire 90% coverage

Jacket

0.268"±0.006"/6.81±0.15mm PE

Jacket Thickness

0.030"/0.76mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance



The Max. at 20ºC shall be <  21.5 Ω/km

6.56Ω/1000ft

Capacitance

52 ±3 pF/m          17.2 ±1 pF/ft



Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 20dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4



Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ºC to 60ºC

Cable diamensions

0.268"±0.006"/6.81±0.15mm PE

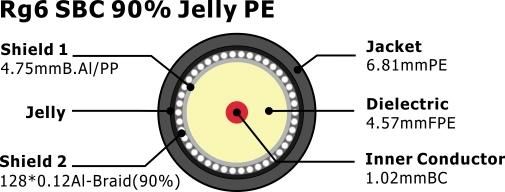

Cross Section

90% Braiding RG6 Coaxial Cable CCTV Cable with Steel Messenger 18AWG CCS


Attenuation(20ºC):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.58

1.90

55

1.60

5.25

83

1.95

6.40

187

2.85

9.35

211

3.05

10.00

250

3.30

10.82

300

3.55

11.64

350

3.85

12.63

400

4.15

13.61

450

4.40

14.43

500

4.66

15.29

550

4.90

16.08

600

5.10

16.73

750

5.65

18.54

865

6.10

20.01

1000

6.55

21.49



Order Informations:

Marking

RG6 Pure Copper Conductor CATV coaxial Cable ×××MT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.



90% Braiding RG6 Coaxial Cable CCTV Cable with Steel Messenger 18AWG CCS
