0.6/1kv Cvv-S Cable Cu/XLPE/Cts/PVC Control Cables with Copper Tape Shield

Henan Hongda Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Underground, Electrical Equipment, Station Control Circuits
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：XLPE

Base Info

  • Model NO.：CVV-S Cable
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CCC, SGS
  • Brand：Hongda
  • Standard：IEC 60332,1, BS5307
  • Rated Voltage：0.6,1 Kv DC
  • Transport Package：Drum or as Customer Require
  • Specification：0.5mm2 to 2.5mm2
  • Trademark：Hongda
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：900km,Month

Description

Basic Info.

Model NO. CVV-S Cable Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CCC, SGS Brand Hongda Standard IEC 60332,1, BS5307 Rated Voltage 0.6/1 Kv DC Transport Package Drum or as Customer Require Specification 0.5mm2 to 2.5mm2 Trademark Hongda Origin China HS Code 8544492100 Production Capacity 900km/Month

Product Description

0.6/1kV CVV-S Cable CU/XLPE/CTS/PVC CONTROL CABLES WITH COPPER TAPE SHIELD

APPLICATION
Supervisory electrical equipment, station control circuits. Out door, suitable installation in the wet or dry cable trenches.

CONSTRUCTION

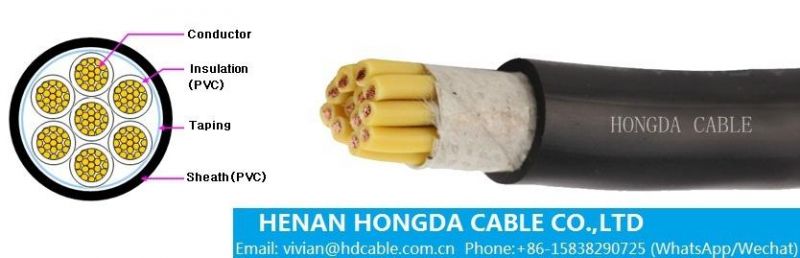

Conductor : Concentric lay strand annealed copper conductor
Insulation : Polyvinyl chloride (PVC) : Black colour with marking number.
Filler : PVC Rod and/or Polypropylene (Nonhygroscopic material) Wrapping Tape : Polyester (Mylar) tape.
Outer Sheath : Black polyvinyl chloride (PVC) .
*** Colours sequence for circuit identification & other colours for outer sheath to special order.
0.6/1kv Cvv-S Cable Cu/XLPE/Cts/PVC Control Cables with Copper Tape Shield

CLASSIFICATION
Maximum conductor temperature 75 C,
Circuit voltage does not exceed 600 volts

OPTIONAL
A Special FR-PVC flame retardant sheath can be supplied.

Cable Design Parameters

No. of CoresNominal Cross Sectional Area(Sq. mm)Nominal Insulation Thickness (mm)Max. D.C. Conductor Resistance at 20°C(Ω/km)Nominal Thickness of Sheath (mm)Maximum Overall Dimensions (mm)
10.50.6039.00.94.3
20.50.6039.00.96.9
30.50.6039.00.97.3
40.50.6039.00.98.0
50.50.6039.00.98.7
10.750.6026.00.94.5
20.750.6026.00.97.3
30.750.6026.00.97.7
40.750.6026.00.98.4
50.750.6026.00.99.2
110.6019.50.94.7
210.6019.50.97.6
310.6019.50.98.1
410.6019.50.98.8
510.6019.51.09.6
11.50.6013.30.95.4
21.50.6013.30.98.9
31.50.6013.30.99.4
41.50.6013.31.010.4
51.50.6013.31.011.4
12.50.707.981.06.2
22.50.707.981.010.3
32.50.707.981.010.9
42.50.707.981.012.0
52.50.707.981.013.2
140.804.951.06.8
240.804.951.011.6
340.804.951.012.4
440.804.951.013.6
540.804.951.115.3
160.803.301.17.5
260.803.301.113.0
360.803.301.213.8
460.803.301.215.5
1101.001.911.39.4
2101.001.911.316.5
3101.001.911.417.7
4101.001.911.419.5
1161.001.211.410.9
2161.001.211.419.4
3161.001.211.420.6
4161.001.211.423.0
1251.200.7801.413.6
2251.200.7801.423.8
3251.200.7801.525.6
4251.200.7801.628.5
1351.200.5541.615.5
2351.200.5541.627.2
3351.200.5541.629.3
4351.200.5541.732.7
1501.400.3862.018.1
2501.400.3862.032.0
3501.400.3862.034.6
4501.400.3862.038.6
1701.400.2722.220.8
2701.400.2722.236.8
3701.400.2722.239.6
4701.400.2722.244.3
1951.600.2062.423.6
2951.600.2062.441.8
3951.600.2062.447.0
4951.600.2062.450.2
11201.600.1612.526.0
21201.600.1612.546.2
31201.600.1612.551.0
41201.600.1612.555.7
31501.800.1292.654.8
41501.800.1292.662.1
31852.000.1062.861.2
41852.000.1062.868.5
32402.200.08013.069.7
42402.200.08013.077.9
33002.400.06413.275.7
43002.400.06413.284.4


CVVS Control Cable with Copper tape Screening - Applications

Usage:

The power cables with copper screening are used mainly in distribution points of high voltage and very high voltage, for connecting in systems where the resistance to interference (EMC) is required, in the circuits of pulsed supply with frequency converters and everywhere that higher requirement against penetration or radiation of interfering signals is demanded. It is possible to use them in dry or wet environment and for placement into the soil.

The cables can be placed in the environment with the explosion danger (zone 1, 2) providing compliances with the conditions of intrinsic safety according to 60079-11.

Power cable from PVC with copper screening meeting the requirements of EMC

Construction:

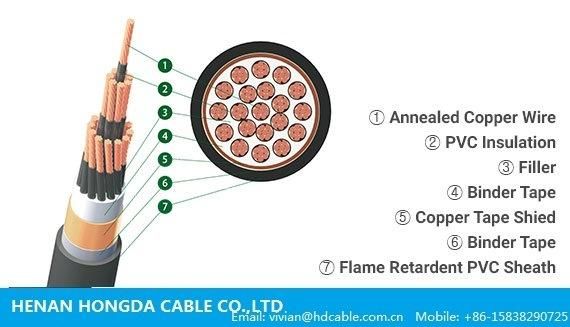

1. Conductor  Cu conductor of the category 1 or 2 according to IEC 60228

2. Insulation    PVC

3. Cable core   wrapping by PET foil

4. Bedding      PVC

5. Screening    Cu tape

6. Sheath         PVC
0.6/1kv Cvv-S Cable Cu/XLPE/Cts/PVC Control Cables with Copper Tape Shield


Technical parameters:

Rated voltage U0/U:                                                 0,6/1 kV AC

Highest voltage of the Um system:                           1,2 kV AC

Testing voltage between cores:                                 4 kV AC 5 min

Testing voltage between core and screening:            4 kV AC 5 min

Surrounding temperatures (fixed placement):           - 30°C up to + 70°C

Surrounding temperatures (during installation):       -5°C up to +50°C

Minimum bending radius (fixed placement):            10D


Basic characteristics:

Self-extinguishing PVC:                               EN 60332-1-2

Colour marking of cores:                               HD 308 S2

Sheath colour:                                                black

CVVS Control Cable Parameter

Cores x  Section AreaInsulation  ThicknessJacket  ThicknessMaximum  resistance at 20ºCCable  DiameterCopper  approx. weightCable Approx.  WeightPacking Length
mm2mmmmΩ/kmmmkg/kmkg/kmm
7 x 10.61.218.10 13.00 1152702750
12 x 10.61.218.10 15.50 1754002500
19 x 10.61.218.10 17.50 2485201750
2 x 1.50.71.212.10 11.00 701902000
3 x 1.50.71.212.10 11.50 862102000
4 x 1.50.71.212.10 12.50 1102502000
5 x 1.50.71.212.10 13.50 1252802000
7 x 1.50.71.212.10 4.50 1533402000
12 x 1.50.71.212.10 17.50 2395101750
14 x 1.50.71.412.10 18.50 2975601750
19 x 1.50.71.412.10 21.00 3477201250
24 x 1.50.71.412.10 24.00 43210001000
27 x 1.50.71.412.10 24.50 4771000750
37 x 1.50.71.412.10 27.50 6221250750
48 x 1.50.71.612.10 31.50 7501600500
2 x 2.50.71.27.41 12.00 932201500
3 x 2.50.71.27.41 12.50 1192601500
4 x 2.50.71.27.41 13.50 1463101500
5 x 2.50.71.27.41 14.50 1733501500
7 x 2.50.71.27.41 15.50 2234201500
12 x 2.50.71.47.41 20.00 3586801500
19 x 2.50.71.47.41 22.50 5299301000
24 x 2.50.71.47.41 26.50 6631310750
27 x 2.50.71.47.41 27.00 6801400750
2 x 40.71.24.61 13.50 1252901000
3 x 40.71.24.61 14.00 1653301000
4 x 40.71.24.61 15.00 2064001000
5 x 40.71.24.61 16.00 2474601000
7 x 40.71.24.61 17.50 3255601000
12 x 40.71.44.61 22.50 5309201000
2 x 60.71.23.08 14.50 1673501500
3 x 60.71.23.08 15.00 2104101500
4 x 60.71.23.08 16.00 2855001500
5 x 60.71.23.08 17.50 3455901500
7 x 60.71.43.08 18.20 4307191500
3 x 100.81.21.83 17.50 3455801000
3 x 100.81.41.83 18.50 4417101000
4 x 100.81.41.83 20.50 540870750
5 x 160.81.41.15 20.00 5208301500
4 x 160.81.41.15 21.50 6711020750
5 x 160.81.41.15 23.50 8251230750


Packing & Shipping:

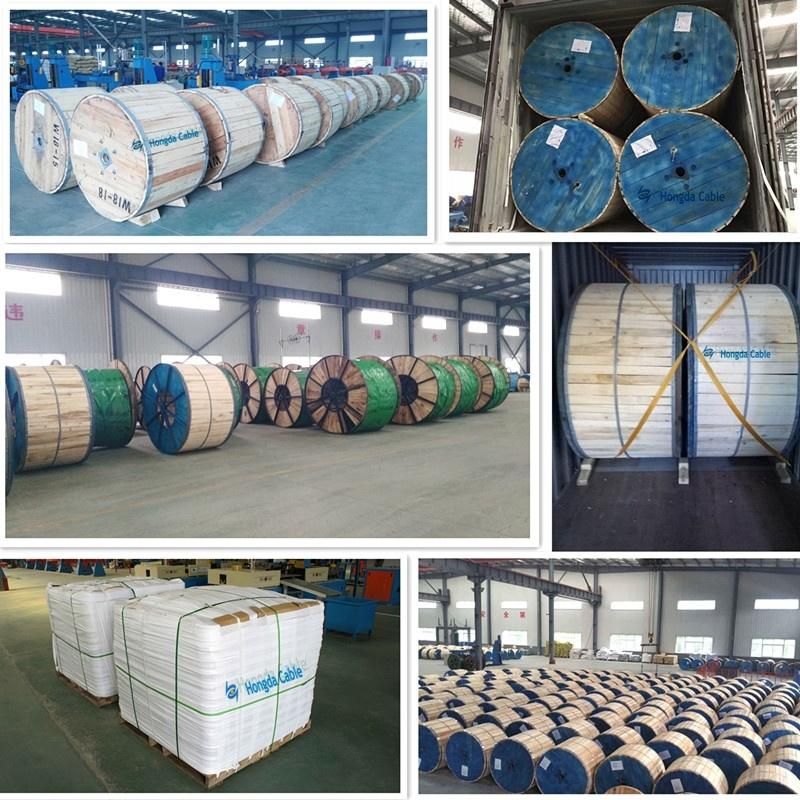

Packing:

Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.


Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!


Shipping:
Port: Tianjin, Qingdao, or other ports as per your requireents.


Sea freight:
FOB/C&F/CIF quotation are all available.
