Optical Fiber Composite Overhead Ground Wire Opgw Cable

Qingdao Powtech Electronics Co., Ltd.
  • Application：Communication
  • Type：Single-mode Fiber
  • Connection Structure：Optical Fiber Composite Overhead Ground Wire
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：>1000(N,100mm)
  • Allowed Tensile Strength：>10000N

Base Info

  • Model NO.：OPGW
  • Core：Multicore
  • Certification：RoHS, UL, CE, ISO9001, CCC, SGS
  • Brand：Optelec
  • Sheath Material：Aluminium Alloy Wire
  • Product Name：Opgw Cable
  • Transport Package：Wooden Drum
  • Specification：IEEE-1138, ITU-G652D, ISO9001
  • Trademark：OPTELEC
  • Origin：China
  • HS Code：85447000
  • Production Capacity：100km,Month

Description

ModelOPGW12B1-32Max Fiber Qty12Stainless Steel Tube (mm)2.6Outer Dia(mm)7.8Supporting Cross Section (mm2)31.1Weight (Kg/Km)240Rated Tensile Strength RTS (KN)39.3DC Resistance @20ºC2.701Short Circuit Current  Capacity,  kA2.S (20~300ºC)7.6Linear Expansion Coefficient, 10-61/ºC13.0E-Modulus(KN/mm2)162

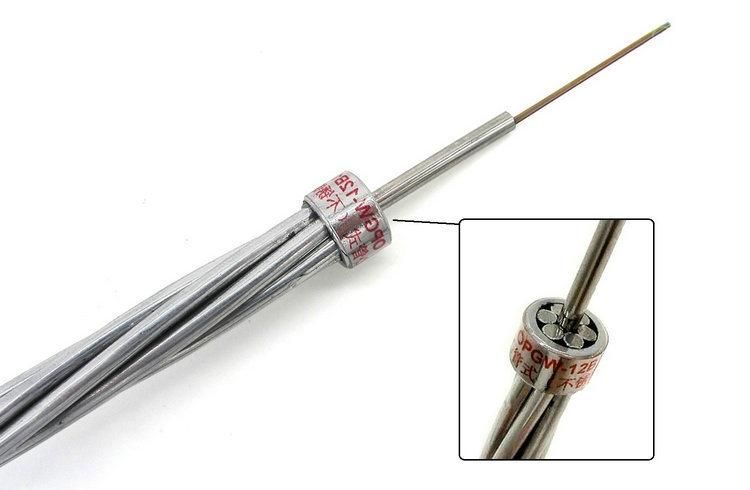

Optical Fiber Composite Overhead Ground Wire Opgw Cable
Optical Fiber Composite Overhead Ground Wire Opgw Cable
Optical Fiber Composite Overhead Ground Wire Opgw Cable
