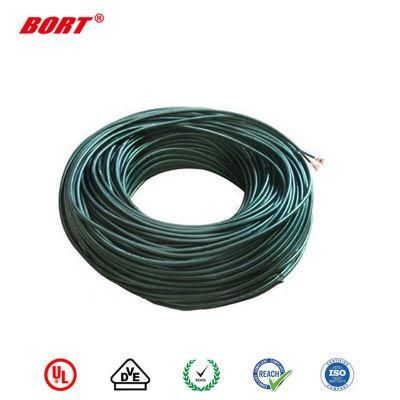

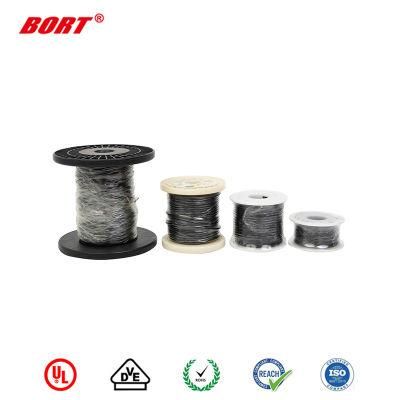

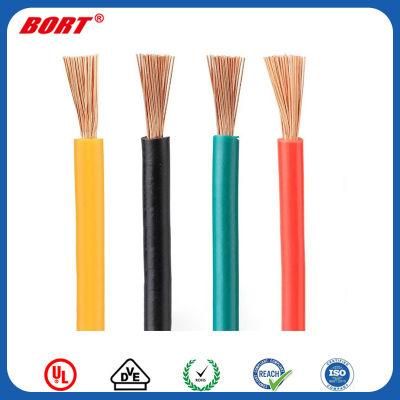

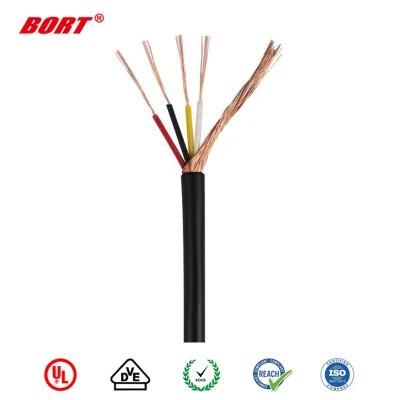

UL Standard UL3135 Stranded Tinned Copper Silicone Rubber Connection Wiring Cables
B&T (Zhangzhou) Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Internal Wiring
- Conductor Material：Copper
- Sheath Material：Teflon
- Insulation Material：Silicone Rubber
Base Info
- Model NO.：UL3135
- Material Shape：Round Wire
- Range of Application：Internal Wiring
- Certification：ISO9001, UL, RoHS, VDE
- Brand：Bort
- Sample：Conventional Sample Free
- Producing Experience：10 Years
- No. of Cores：One Core or Multi-Cores
- Colors：Could Be Customized Color
- Delivery Time：in 7-10days
- Packing：100m,Roll, 305m,Roll, Wrap Plastic Film Packaging
- Company Type：Manufacturer
- Factory Directly：Big Discount with Large Order
- Service：OEM, ODM
- Conductor：Stranded, Tinned or Bare Copper Conductor
- Transport Package：Carton,Pallet
- Specification：Customize
- Trademark：BORT
- Origin：China
- HS Code：8544492900
- Production Capacity：300000km,Year
Description
Overall Diameter
(mm)Nom. Min. Nom. Tol. 12 65/0.254 5.64 2.36 0.78 0.69 3.95 ±0.15 14 41/0.254 8.96 1.9 0.78 0.69 3.46 ±0.15 16 7/0.49 14.60 1.50 0.78 0.69 3.06 ±0.15 16 50/0.18 14.60 1.50 0.78 0.69 3.06 ±0.15 18 7/0.39 23.20 1.19 0.78 0.69 2.75 ±0.10 18 30/0.18 23.20 1.19 0.78 0.69 2.70 ±0.10 20 7/0.30 36.70 0.92 0.78 0.69 2.48 ±0.10 20 21/0.18 36.70 0.95 0.78 0.69 2.51 ±0.10 22 7/0.254 59.40 0.76 0.78 0.69 2.32 ±0.10 24 7/0.20 94.20 0.61 0.78 0.69 2.15 ±0.10 26 7/0.16 150.00 0.48 0.78 0.69 2.05 ±0.10
(mm)
