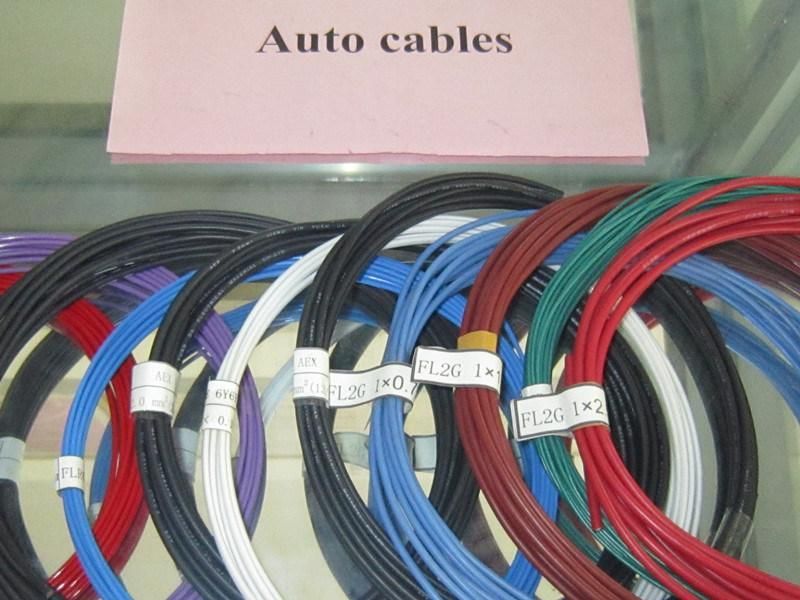

Twp Type Low-Voltage Basic Cable with PVC Insulation for Auto System
Jiangyin Yuanda Electrical Material Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Electrical System of Vehicles
- Conductor Material：Copper or Tinned Copper
- Insulation Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：TWP
- Range of Application：Electrical System of Vehicles
- Certification：ISO9001, RoHS, Saej1128-2000
- Brand：Yuanda
- Transport Package：Pallet,Carton,Tray,Reel
- Specification：24-8AWG
- Trademark：Yuanda
- Origin：Wuxi, China
- HS Code：8544491100
- Production Capacity：1000km,Day
Description
TWPSpec
AWG Section
mm2 Conductor construction No./D(mm) Diameter
(mm) Thickness
(mm) Nominal outer diameter
(mm) Max outer diameter (mm)
Cu core
Tinned-Cu core 24 0.22 7/0.20 0.6 0.41 1.3 1.5 87.6 94.2 22 0.35 7/0.26 0.78 0.41 1.5 1.7 55.4 89.4 20 0.5 7/0.31 0.93 0.41 1.7 1.9 34.6 36.7 18 0.8 19/0.23 1.15 0.41 1.9 2.1 21.8 23.2 16 1 19/0.28 1.4 0.41 2.1 2.3 13.7 14.6 14 2 19/0.36 1.8 0.41 2.5 2.7 8.62 8.96 12 3 19/0.45 2.25 0.46 3.1 3.3 5.43 5.64 10 5 19/0.57 2.85 0.51 3.8 4.0 3.409 3.546 8 8 19/0.71 3.55 0.56 4.6 4.8 2.144 2.230
