• Model NO.：H05z-K , H07z-K
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

Application

Halogen-free single core wires are used for installation in dry environments for wiring up lighting fixtures and units where valuable assets are to protected from further damage resulting from fire. These types are suitable for laying in tubes on and under plaster, as well as in closed installation ducts.
H07Z-K, suitable for protected, permanent laying in or on lighting installations or switching and control equipment up to 1000 V AC or 750 V DC to earth.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Technical Data
echnical datechnical data

• Single cores for low emission of smoke
  and corrosive gases in case of fire to
  DIN VDE 0285-525-3-41 /
  DIN EN 50525-3-41
• Conductor resistance
  acc. to DIN VDE 0295 cl.5
• Temperature range
  -40°C to +90°C
• Permissible conductor operating
  temperature +90°C
• Nominal voltage
  H05Z-K = U₀/U 300/500 V
  H07Z-K = U₀/U 450/750 V
• Test voltage
  2500 V
• Insulation resistance at 90°C
  to DIN VDE 0282-9
• Minimum bending radius
  fixed installation
  core Ø ≤ 8 mm  4x core Ø
  core Ø > 8-12 mm  5x core Ø
  core Ø > 12 mm  6x core Ø
• Radiation resistance
  up to 20x10⁶ cJ/kg (up to 20 Mrad)

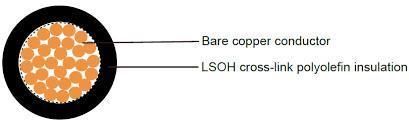

Cable constructure

• Bare copper conductor, to
  DIN VDE 0295 cl.5, fine wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Separating foil over conductor permitted
• Core insulation of cross-linked polyolefin
  compound type EI5 to
  DIN VDE 0207-363-5 / DIN EN 50363-5
• LSOH = Low Smoke Zero Halogen

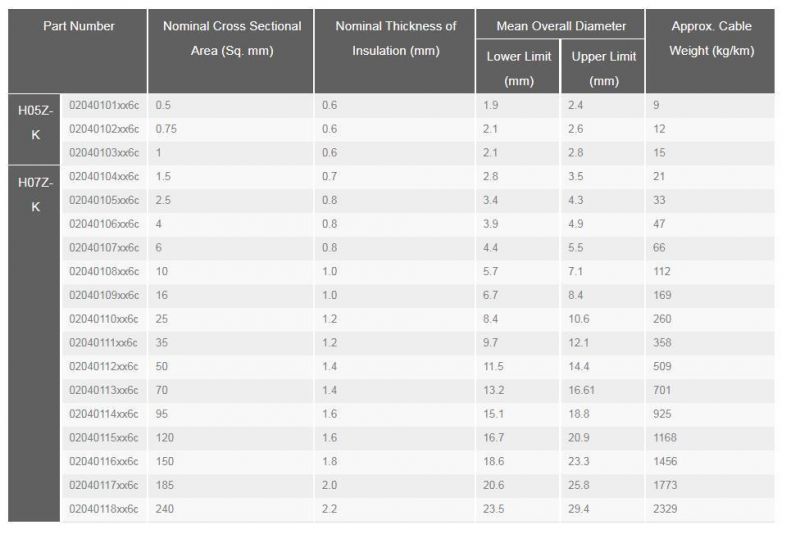

Type of the cables
