Cable Vob, H07V-U / H07V-R Electrical Wire Electric Cable

Henan Hongda Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Solid
  • Application：Overhead, Heating, Underground, Laying Tubes, Under and Surface Mounting
  • Conductor Material：Copper
  • Sheath Material：No Sheath
  • Insulation Material：PVC

Base Info

  • Model NO.：vob cable
  • Material Shape：Round Wire
  • Range of Application：in Dry Rooms, Instruments, Switches and Distributi
  • Certification：ISO9001, CE, CCC, SGS
  • Brand：Hongda
  • Central Conductor：Fine Solid Copper
  • Insulation：Polyvinyl Chloride (PVC)
  • Transport Package：a: Roll of 100 M B: Reel of 1500 M.
  • Specification：0.5mm2 to 10mm2
  • Trademark：Hongda or as customer require
  • Origin：China
  • HS Code：8544492900
  • Production Capacity：100km,Day

Description

Cable Vob, H07V-U / H07V-R Electrical Wire Electric CableCable Vob, H07V-U / H07V-R Electrical Wire Electric CableSolid bare copper single wire
Solid to DIN VDE 0295 cl-1 and IEC 60228 cl-1
Special PVC TI1 core insulation
H05V-U (20, 18 & 17 AWG)
H07V-U (16 AWG and Larger)


PVC H05V-U / H07V-U VOB Cable Technical Characteristics

AWGNo. of Cores x
Nominal Cross Sectional Area
# x mm²Nominal
Overall DiameterNominal
Copper Weight kg/KmNominal Weight
kg/Km16(30/30)1 x 1.53.114.42014(50/30)1 x 2.53.6243112(56/28)1 x 44.3384810(84/28)1 x 64.958698(80/26)1 x 106.4961216(128/26)1 x 168.11542114 (200/26)1 x 259.82403032 (280/26)1 x 3511.13364171 (400/26)1 x 5013.14805392/0 (356/24)1 x 7015.56727303/0 (485/24)1 x 9517.29129004/0 (614/24)1 x 12019.711521135300 MCM (765/24)1 x 15021.314401410350 MCM (944/24)1 x 18523.417761845500MCM(1225/24)1 x 24027.123042270

H07V-U PVC Electric Cable 450/750V Specification:

AWGNo. of Cores x
Nominal Cross Sectional Area
# x mm²Nominal
Overall DiameterNominal
Copper Weight
kg/KmNominal Weight
kg/Km201 x 0.52.14.89181 x 0.752.27.211171 x 12.49.614161 x 1.52.914.421141 x 2.53.52433121 x 43.93849101 x 64.5586981 x 105.796115

H07V-R PVC electric wire Cable 450/750V Specification:

AWGNo. of Cores x
Nominal Cross Sectional Area
# x mm²Nominal
Overall DiameterNominal
Copper Weight
kg/KmNominal Weight
kg/Km16(7/24)1 x 1.5314.42314(7/22)1 x 2.53.6243512(7/20)1 x 44.2395110(7/18)1 x 64.758718(7/16)1 x 106.1961206(7/14)1 x 167.21541704(7/12)1 x 258.42402602(7/10)1 x 359.53363501(19/13)1 x 5011.34804802/0(19/11)1 x 7012.66726803/0(19/10)1 x 9514.79129304/0(37/12)1 x 12016.211521160300MCM(37/11)1 x 15018.114401430350MCM(37/10)1 x 18520.217761780500MCM(61/11)1 x 24022.923042360 1 x 30024.528802940 1 x 40027.538403740

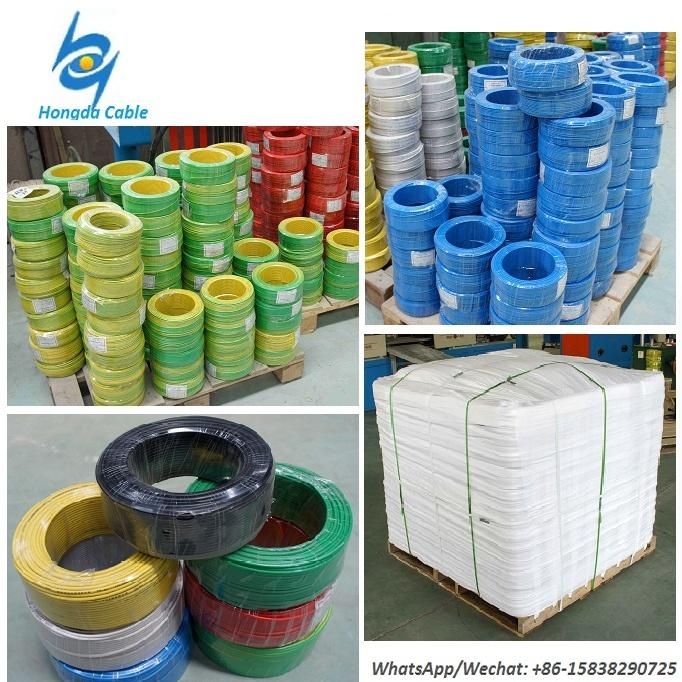

PVC H07V-R / H07V-U VOB Cable PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.
Cable Vob, H07V-U / H07V-R Electrical Wire Electric Cable

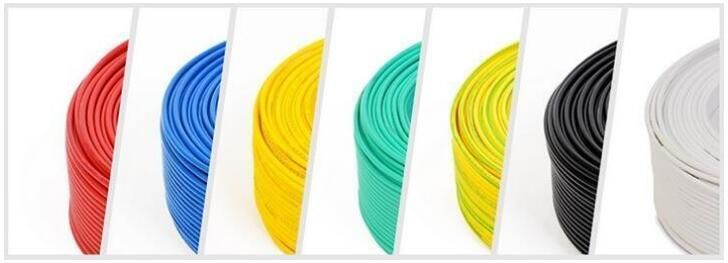

PVC H05V-U / H07V-U Nya Cable AVAILABLE COLORS:
Cables (Sizes 0.5mm2 to 6mm2): Black, White, Sky Blue, Blue, Red, Purple, Yellow and Green.
Cables (Sizes 10mm2 to 25mm2): Black, White, Blue and Red.
Cables (Sizes 25mm2 to 240mm2): Black. HIGHER SIZES (FROM 750 MCM TO 1.000 MCM), UNDER REQUIREMENT.
Cable Vob, H07V-U / H07V-R Electrical Wire Electric Cable

Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.

Any problem and inquiry pls contact with Vivian Yuan.
