Power/Control Cables Rte S740 (HN 33-S-34) 2.5~35mm2
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Power Station, Telecommunication
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：PVC
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：KVVP2
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE
- Model：Kvvp2
- Brand：Yifang
- Product Name：Power,Control Cables Rte S740 (Hn 33-S-34) 2.5~35m
- Transport Package：Drum, Reel or According to Your Request
- Specification：IEC, BS, DIN, ASTM, NFC, JIS etc
- Trademark：YIFANG
- Origin：Zhengzhou, Henan, China
- HS Code：8544492100
- Production Capacity：500km Per Month
Description
Basic Info.
Model NO. KVVP2 Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model Kvvp2 Brand Yifang Product Name Power/Control Cables Rte S740 (Hn 33-S-34) 2.5~35m Transport Package Drum, Reel or According to Your Request Specification IEC, BS, DIN, ASTM, NFC, JIS etc Trademark YIFANG Origin Zhengzhou, Henan, China HS Code 8544492100 Production Capacity 500km Per MonthProduct Description
Product DetailsPower/Control Cables RTE S740 (HN 33-S-34) 2x35
DESCRIPTION
APPLICATIONS
These cables are used for the wiring of signaling circuits, control, measurement and low-voltage supply in transformer stations. They are protected against electromagnetic disturbances.
CONSTRUCTION
Driver:
Pure bare copper (class 2)
For 3x95 + 35 (3x95: sectoral class 2, 35 round class 2)
Insulation:
Polyvinyl chloride (PVC)
Assembly:
Assembly sheath forming a stuffing of virtually zero thickness
or assembly tape (optional)
Internal sheath:
Polyvinyl chloride (PVC)
Screen:
Copper tape
Protective shealth :
Polyvinyl chloride (PVC)
Black color
Flame rasistant
Product Introduction
DRIVERS AREA
Black encrypted drivers
Brown, yellow, green and light blue drivers for constructions:
3 x 50 + 25
3 x 95 + 35
STANDARDS
Complies with the specifications of the National Network Engineering Center (CNER) and S740 nomenclature (formerly HN 33-S-34)
Product Parameters
| Size | Dia.(mm) | Min. Bending Radiu(mm) | Standard Length(m) |
| 1x35 | 13.0 | 260.0 | 2000 |
| 1x50 | 15.0 | 300.0 | 1000 |
| 1x120 | 20.0 | 600.0 | 500 |
| 2x2.5 | 10.3 | 120.0 | 5000 |
| 2x4 | 12.0 | 144.0 | 4000 |
| 2x6 | 13.0 | 156.0 | 3000 |
| 2x10 | 16.0 | 192.0 | 2000 |
| 2x16 | 20.0 | 240.0 | 2000 |
| 2x25 | 23.0 | 260.0 | 2000 |
| 2x35 | 25.0 | 300.0 | 2000 |

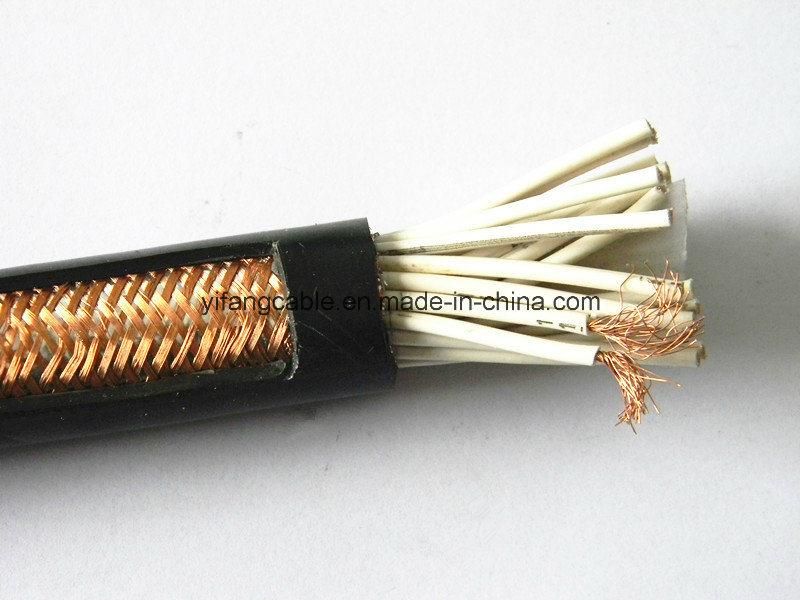

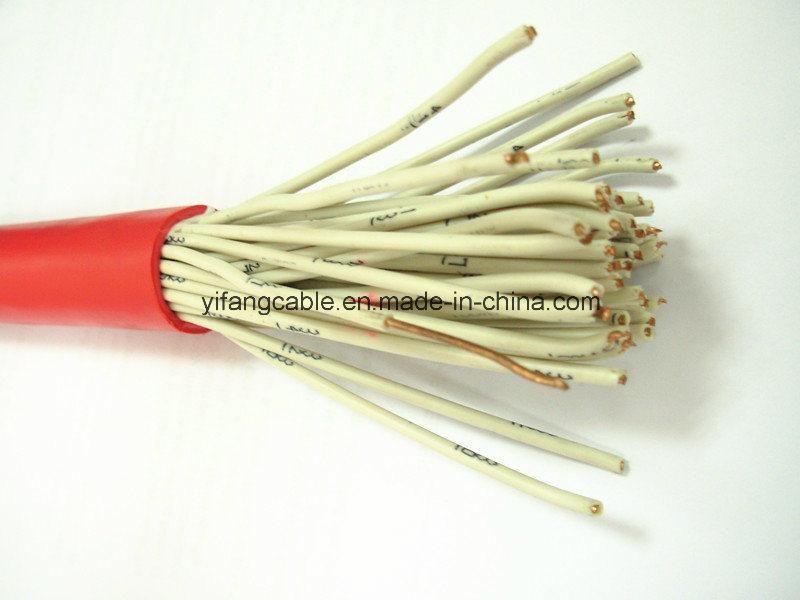

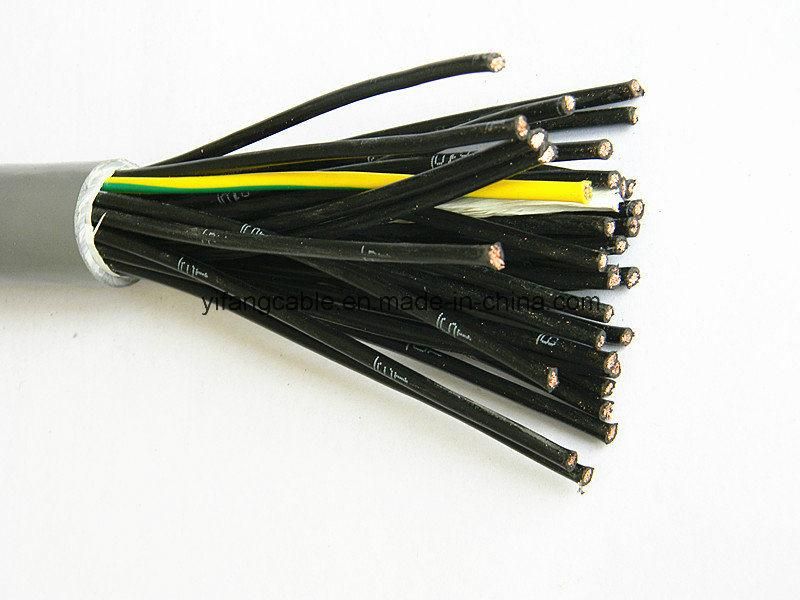

Product Details Show
