600/1000V XLPE Insulated PVC Sheathed 1 Core Aluminum Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：YJLV: Al,XLPE,PVC
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE, RoHS
- Model：Yjlv: Al,XLPE,PVC
- Brand：Hongda
- Conductor Range：25-800mm2
- Sheath Color：Black or Other
- Transport Package：Wooden Drum
- Specification：25~630sqmm, 1 core
- Trademark：Hongda
- Origin：China
- HS Code：8544492100
- Production Capacity：2000km,Month
Description
YJV CU/XLPE/PVC
YJLV
AL/XLPE/PVCmm2 mm mm mm mm kg/km kg/km A A A A 1×4 RE 2.24 0.7 1.4 6.5 73.7 49.0 45 35 60 50 1×6 RE 2.76 0.7 1.4 7.0 95.8 58.7 55 45 70 50 1×10 CC 3.8 0.7 1.4 8.0 140.1 78.2 75 60 95 75 1×16 CC 4.8 0.7 1.4 9.0 201.8 102.8 100 80 125 100 1×25 CC 6.0 0.9 1.4 10.6 298.9 144.2 140 115 160 130 1×35 CC 7.0 0.9 1.4 11.6 396.7 180.2 175 140 190 150 1×50 CC 8.4 1.0 1.4 13.1 543.9 234.6 210 170 225 180 1×70 CC 10.0 1.1 1.4 15.0 744.7 311.6 270 215 280 225 1×95 CC 11.5 1.1 1.5 16.6 985.6 397.8 340 275 335 270 1×120 CC 13.0 1.2 1.5 18.4 1233.0 490.6 400 320 380 305 1×150 CC 14.5 1.4 1.6 20.5 1533.8 605.8 460 370 425 340 1×185 CC 16.2 1.6 1.6 22.7 1884.9 740.3 530 415 480 375 1×240 CC 18.4 1.7 1.7 25.3 2418.0 933.1 625 490 555 435 1×300 CC 20.5 1.8 1.8 27.7 2996.5 1140.4 720 565 630 495 1×400 CC 23.5 2.0 1.9 31.4 3962.3 1487.5 815 640 705 555 1×500 CC 26.5 2.2 2.0 35.0 4933.0 1839.5 855 680 765 595 1×630 CC 30.0 2.4 2.2 39.1 6188.8 2291.0 980 790 860 680
Standard
GB/12706-2008, IEC60502-1, IEC60228, IEC60332, BS 5467, IS 7098 etc.
Henan Hongda can also design and produce cables for special application requirement according to the standard you require.
Range of application
The cable is suitable for power transmission and distribution lines with rated power frequency voltage 0.6/1kV.
Instruction of application
4.1 Rated voltages: 0.6/1 kV
4.2 The ambient temperature for installation: ≥0ºC
4.3 Maximum conductor temperature in normal operation: 70ºC
4.4 Max operating temperature of con. When cable short-circuited(5s maximum duration): 160ºC
4.5 Permissible bending radius:
Single cable: [20(D+d)±5%]mm
Multi-core cable:[15(D+d)±5%]mm
Note: Henan Hongda can produce flame-resistance, fire-resistance,termite-proof, low smoke free halogen, low flame low halogen etc. power cable as customer required.
Packing & Shipping
We provide you with the best product packaging design services, thereby allowing you to save more shipping charges.
FAQ
1. Q: Are you the factory or the trading company?
A: We are the factory.
2. Q: How long is your guarantee Period?
A: We usually offer 1 year guarantee for our general products.
3. Q: How can I get the samples?
A: We can make the sample order. And usually you will charge for it.
But the samples fee will be return to you when you make the bulk order.
4. Q: Where is your factory? How can we visit your factory?
A: Our factory located in Jiaozuo city, Henan Province and our office is in Zhengzhou city. You could reach here by train and by air. We can pick you up in the airport and the railway station.
5. Q: What is your MOQ?
A: It`s base on the cable type or size. Please contact Ms. Melon. She will offer you the details.

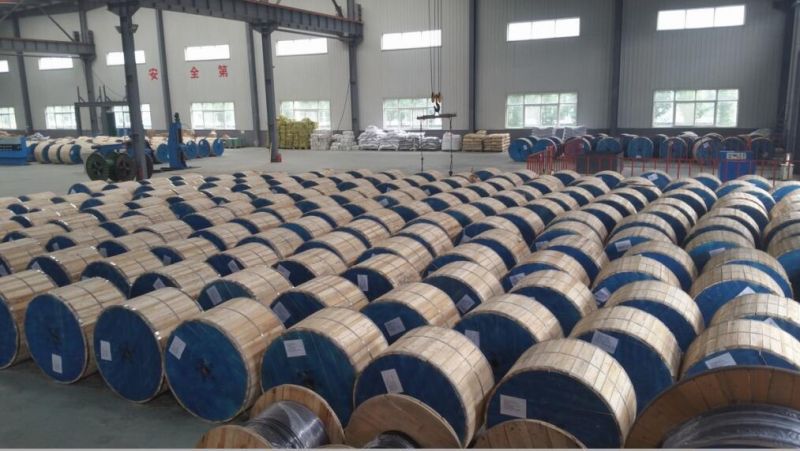

Factory
Established in 2004, Henan Hongda Cable Co., Ltd, is dedicated into manufacturing various types of electric power wire and cable. Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.
Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.
Our Service
1. Design wire and cable according to your real application
2. Optimized reel size for freight cost saving
3. Customized package to feature your brand
4. Short lead time to meet your urgent demand
5. Diversified delivery terms for your options
6. Quick response (24 hours on line)
7. Professional knowledge for clear answer to your any question
8. Comprehensive technical documents to support your tender bidding
9. One-year limited warranty for our wire and cable
10. Cable sample available
11. Specify the cable only according to the location
12. OEM is available
13. Abundant cables and wires for your option
Contact Us
Ms. anna
************************************************************************************************
Tel: +86 371 55668386 / 55568559 Fax: +86371 6097 5616
Mob./ +86 15039132763
Henan Hongda Cable Co., Ltd http://zzhongdacable.en.made-in-china.com
Changping Road 3,Zhandian NewDistrict,Wuzhi County,Jiaozuo,Henan Province, China
Office Add: Room2108,Yaxing Times Square,Zhengzhou,Henan,China. P.C. 450000
************************************************************************************************
