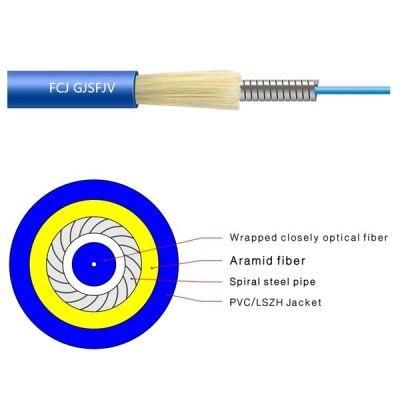

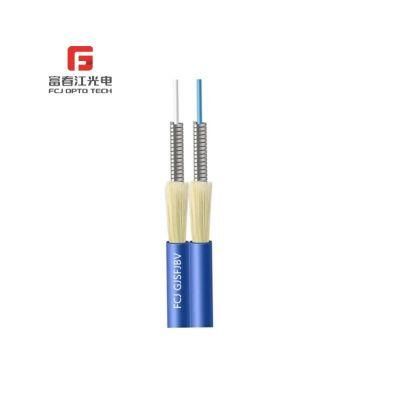

Fcj Opto Tech Indoor Distribution Double Armoured Spiral Wire Aerial Optical/Optic Fiber Communication Cable (GJSFJV)

Zhejiang Fuchunjiang Photoelectric Science Technology Co., Ltd.
  • Application：Communication
  • Type：Single-mode Fiber
  • Connection Structure：Can Be Customized
  • Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
  • Allowed Tensile Strength：1000N<10000N
  • Core：Multicore

Base Info

  • Model NO.：GJSFJV
  • Certification：RoHS, UL, CE, ISO9001, VDE, CCC
  • Brand：Fcj Opto Tech
  • Sheath Material：PVC
  • Jacked Color：Blue, Orange, Green, White etc.
  • Temperature Range：-20~70 Degree
  • Transport Package：Carton Box
  • Specification：2KM, 3KM
  • Trademark：Fcj Opto Tech.
  • Origin：China
  • HS Code：854470000
  • Production Capacity：8000km,Month

Description

Bandwidth
(Class A)@850  ≥500MHZ·km≥200MHZ·km@1300  ≥1000MHZ·km≥600MHZ·kmNumerical Aperture   0.200±0.015NA0.275±0.015NACable Cut-off Wavelength  ≤1260nm≤1480nm
Technical Parameters
Cable TypeFiber Count Tight
Diameter
mm		Cable Diameter
   mm		Cable Weight
   Kg/km		 Tensile Strength
Long/Short Term N		Crush Resistance
Long/Short Term
N/100m		Bending Radius
Static/Dynamic
mm
GJSFJV10.62.011300/750200/100020D/10D
GJSFJV10.62.212300/750200/100020D/10D
GJSFJV10.62.413300/750200/100020D/10D
GJSFJV10.93.015300/750200/100020D/10D
Storage/Operating Temperature : -20ºC to + 60ºC
