• Model NO.：n07vk
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC
• Brand：OEM
• Transport Package：Wooden Drum
• Specification：1.5mm2 to 500mm2
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：5000 Kilometer,Month

Italian standard:CEI 20-22 IICEI-UNEL 35752CEI 20-37 IInternational standard:IEC 332-3

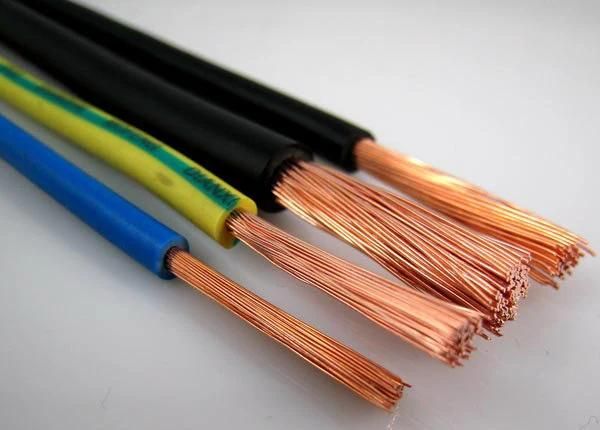

Construction:

• 1- Flexible copper class 5 CEI EN 60228
• 2- PVC R2

Characteristics:

• Rated voltage: 450/750 V
• Operating Temperature: +5°C - +70° C on the conductor
• Max. temperature of short circuit: 160° C on the conductor (max. duration 5 seconds)
• Max. tensile Strength: 50 N/mm2
• Min. bending radius: Fixed installation: 4 x outer diameter

Colouring:

• Black, blue, red, white, green, yellow
• Colours combinations aren't allow, except the yellow and green one.

SectionMax diameter
of wiresInsulation thicknessOuter diameterMax cond. resist.
at 20°CCable weightmm2mmmmmmohms/kmkg/km10.210.72.6519.511.50.260.72.913.3202.50.260.83.607.983040.310.84.14.954560.310.84.703.3065100.4116.11.91110160.4117.11.21160250.411.28.70.780250350.411.29.90.554340500.411.411.60.386480700.511.413.30.272670950.511.615.20.2068901200.511.617.00.16111401500.511.818.90.12914101850.51221.00.10617102400.512.223.90.08012270

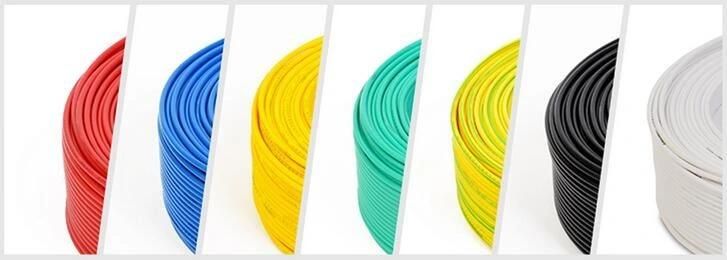

Available Color

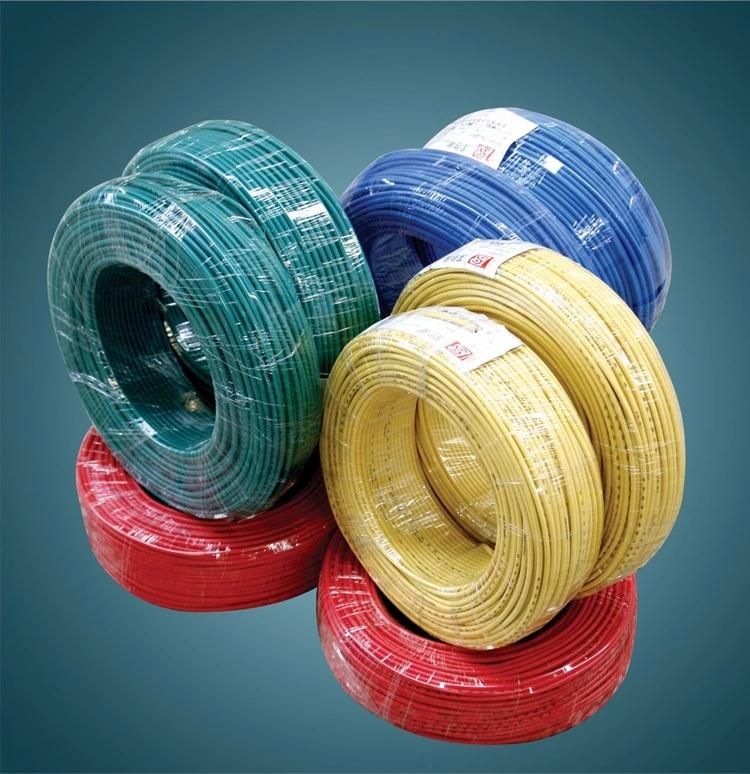

Packing shipping



   Certificate of our company

Any problem and inquiry pls contact with Tina
Phone number: +86-15737156317
