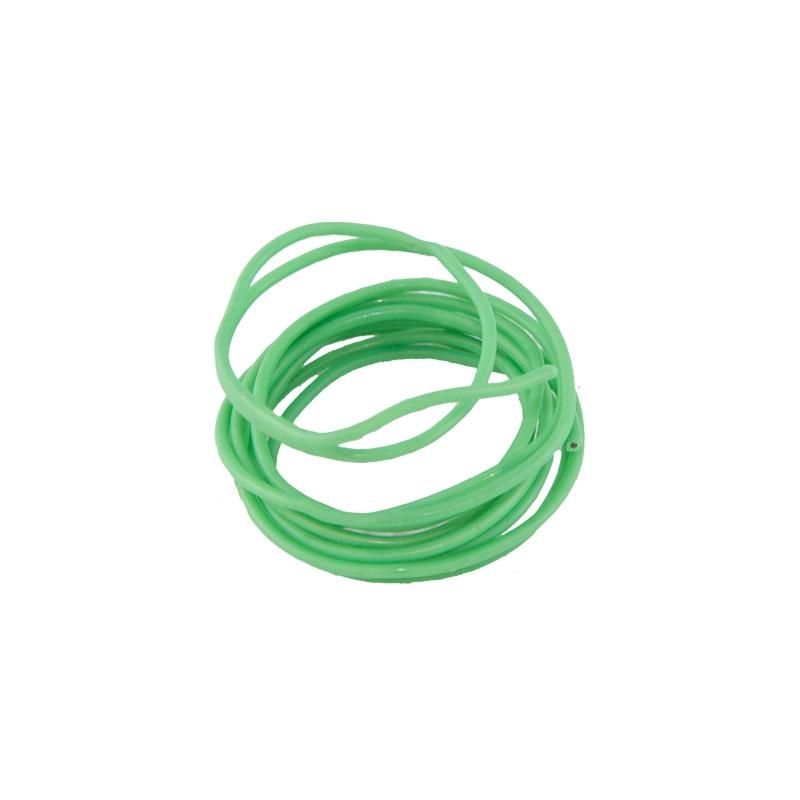

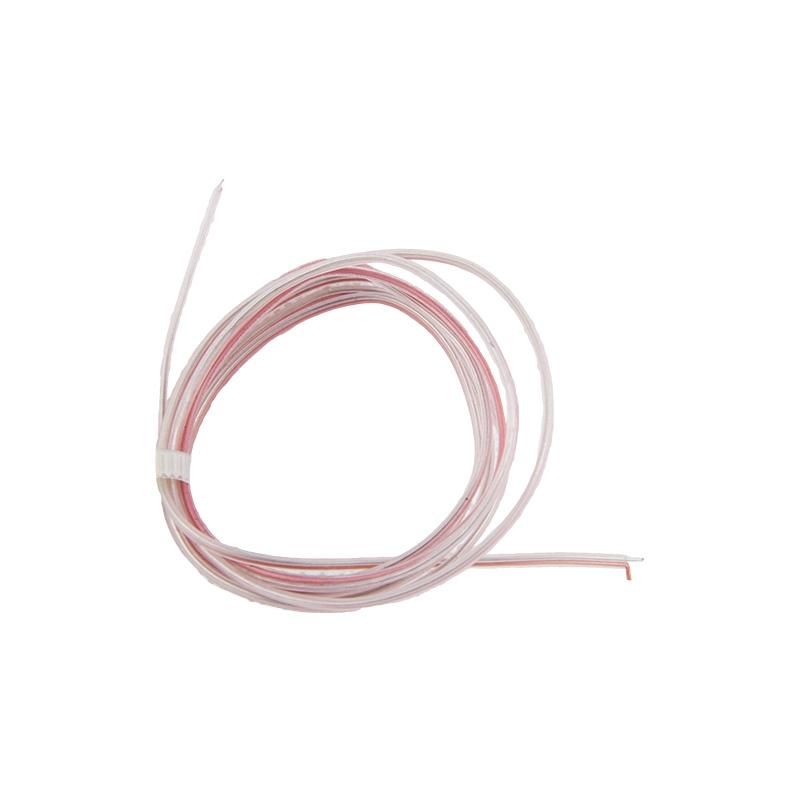

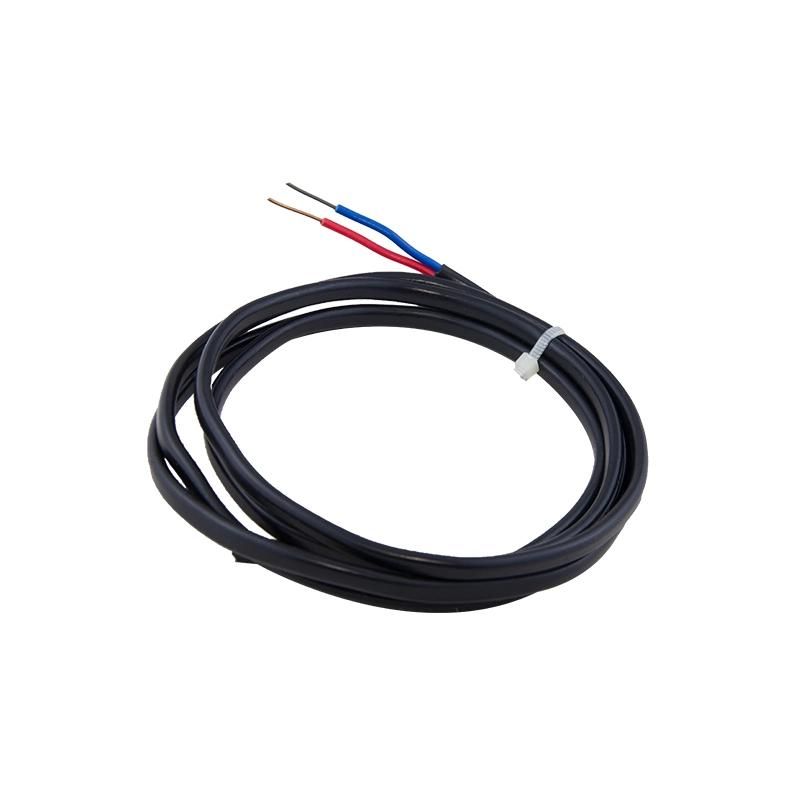

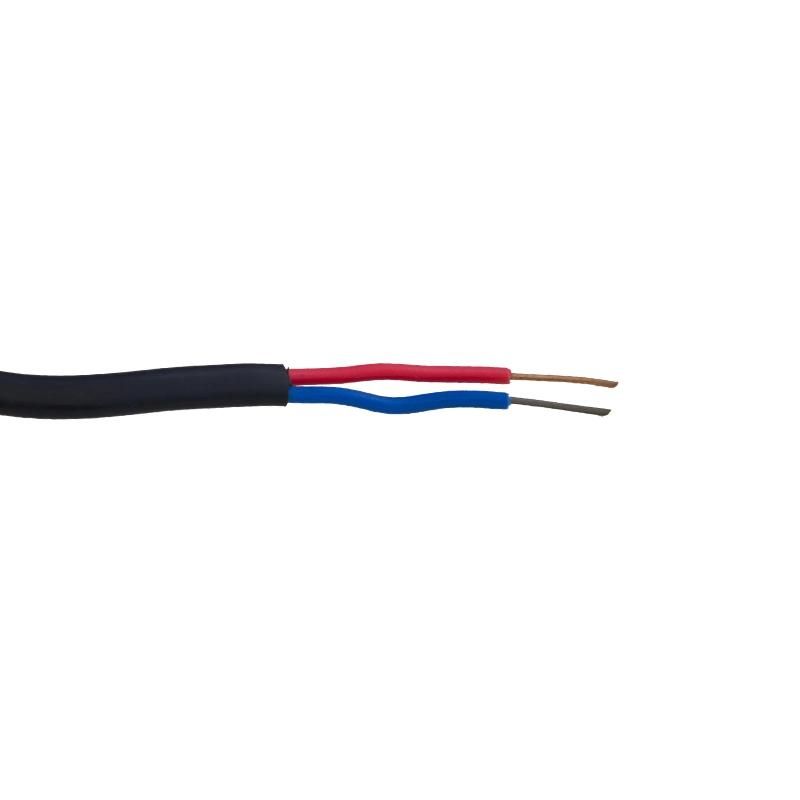

Copper, Tinned Copper Cable, Silver Plated Copper Wire Cable with Silicone Rubber
Huona (Shanghai) New Material Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Overhead, Heating, Underground
- Conductor Material：Tinned Copper Wire
- Sheath Material：Silicone Rubber
- Insulation Material：Teflon
Base Info
- Model NO.：Tinned copper wire
- Material Shape：Round Wire
- Range of Application：--
- Certification：ISO9001, CCC, RoHS
- Brand：Huona

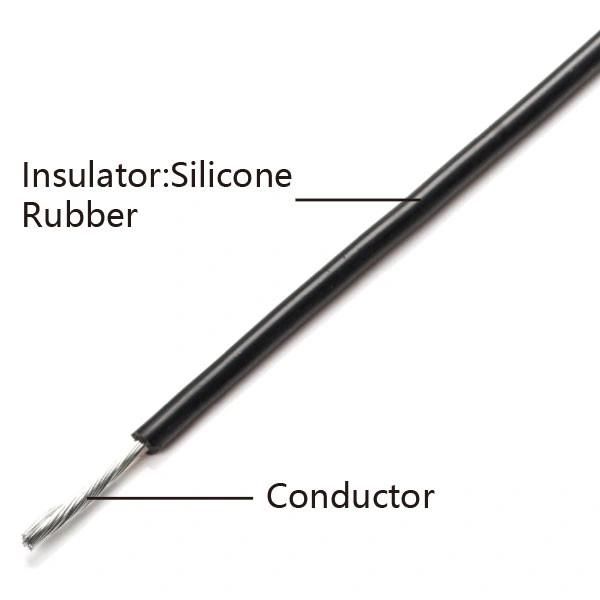

- Insulation：Silicone Rubber
- Conductor：Tinned Copper Wire, Silver Plated Copper Wire
- Temperature Range：-60-+200c
- Rated Voltage：600V
- Od Tolerance：+,-0.1mm
- Colour：White, Blue, Red, Black, Brown, Yellow, Green,
- Used：Oil Equipment, Electric Machinery, etc
- Transport Package：Wooded Case, Carton
- Specification：0.9-23mm
- Trademark：HUONA
- Origin：Shanghai, China
- HS Code：7505220000
- Production Capacity：2000 Tons,Year
Description
InsulationElectrical Properties Packing AWG Conductor
Construction
NO.XΦmm Diameter
mm Insulation
Thickness
mm Outer
Diameter
mm Max.Conductor
Resistance DC 20'C
Ω/km M/coil 12 49x0.30 2.7 0.78 4.26 5.64 305 14 40x0.26 1.90 0.78 3.46 8.96 305 16 7x0.50 1.50 0.78 3.06 14.6 305 17 32x0.20 1.34 0.78 2.90 18.3 305 18 7x0.40 1.20 0.78 2.76 23.2 305 20 7x0.32 0.96 0.78 2.52 36.7 305 22 7x0.26 0.78 0.78 2.34 59.4 610 24 7x0.20 0.60 0.78 2.16 94.2 610 26 7x0.16 0.48 0.78 2.04 150 610
Construction
NO.XΦmm
mm
Thickness
mm
Diameter
mm
Resistance DC 20'C
Ω/km
