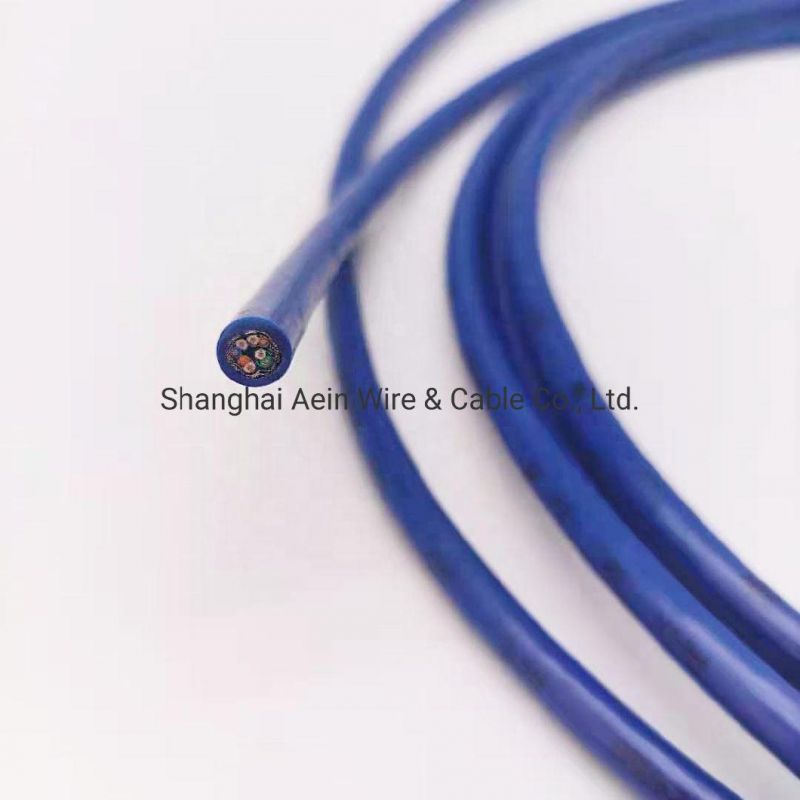

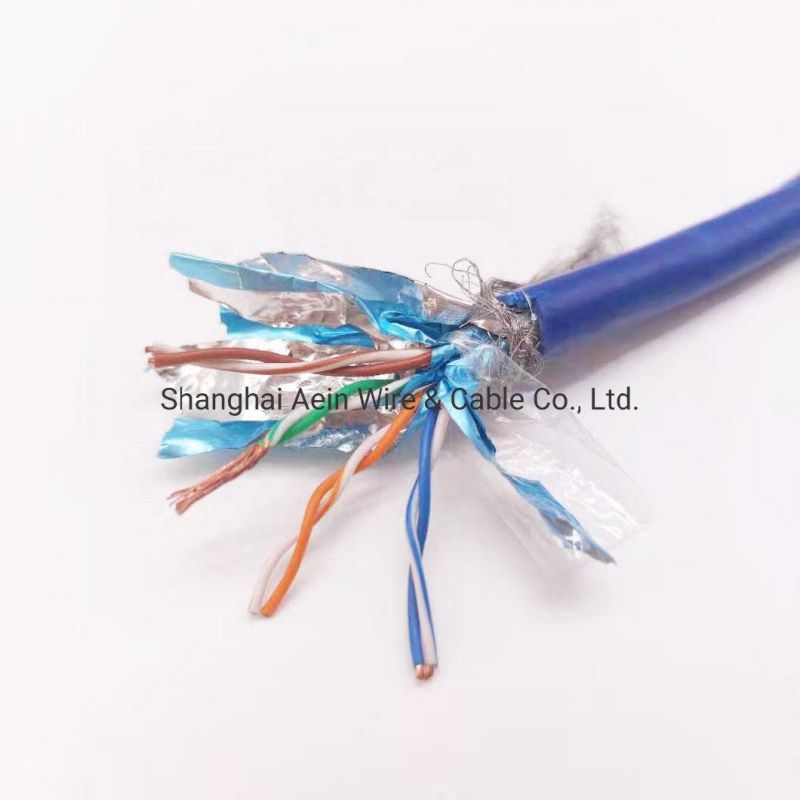

Afirefenix Micarz1-K 0.6/1 Kv Cable Lsoh TUV Certified

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Underground, Industrial Applications
  • Conductor Material：Copper
  • Sheath Material：Lsoh
  • Insulation Material：XLPE

Base Info

  • Model NO.：AFIREFENIX MICARZ1-K Cable
  • Material Shape：Round Wire
  • Range of Application：Industrial Applications
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multiple core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemAFIREFENIX MICARZ1-K CableConductorClass 5 flexible copperInsulationXLPEOuter SheathLSOHNominal VoltageU0/U: 0.6/1kVTest voltage4000 VTemperature Range-25°C ÷ +90°C on the conductor
Max temp. of short circuit: 250°C on the conductorColorOptionalCertificationTUV, CEApplicationAdequate for non-autonomous security circuits and service circuits with a centralised autonomous source (alarm circuits, signalling and emergency lighting systems, acoustic signalling, smoke extractors, water pumps for fire extinction). These cables are recommended for all those installations in which it is necessary to keep the integrity of the circuits and equipment although they are affected directly by the fire.
