300/500V Nhmh-O / Nhmh-J E30 3X2.5 XLPE Insulation Halogen-Free Cable
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Overhead, Heating, Underground
- Conductor Material：Copper
- Sheath Material：Flame Resistance
- Insulation Material：XLPE
Base Info
- Model NO.：NHMH-O , NHMH-J
- Material Shape：Round Wire
- Range of Application：LSOH
- Certification：ISO9001, CCC
- Brand：OEM
- Voltage：300,500V
- Transport Package：500,1000m Per Drum
- Specification：1.5mm2 to 300mm2
- Trademark：Hongda Cable
- Origin：China, Henan
- HS Code：8544492100
- Production Capacity：2000km,Per Months
Description
Basic Info.
Model NO. NHMH-O / NHMH-J Material Shape Round Wire Range of Application LSOH Certification ISO9001, CCC Brand OEM Voltage 300/500V Transport Package 500/1000m Per Drum Specification 1.5mm2 to 300mm2 Trademark Hongda Cable Origin China, Henan HS Code 8544492100 Production Capacity 2000km/Per MonthsProduct Description

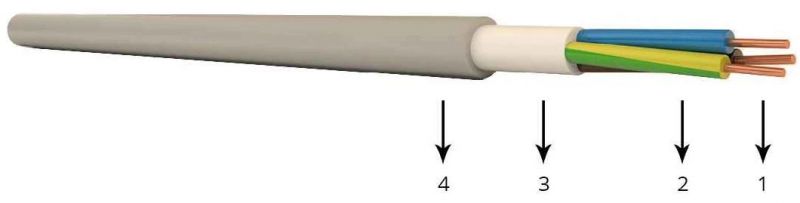

300/500V NHMH-O / NHMH-J E30 3x2.5 XLPE Insulation Halogen-free CableCable structure
1. Conductor
Class 1 solid, copper conductor
2. Insulation
XLPE (Cross-Linked Polyethylene) Type 2XI1 according to HD 604
3. Filler
Halogen-free compound
4. Sheath
Halogen-free thermoplastic polymer compound Type HM2 according to VDE 0207
Application
These cables are intended for fixed installation in dry and moist rooms as well as in masonry and concrete, in and under plaster; not for underground installation. For installations where fire, smoke emission and toxic fumes create a potential risk to life and equipment.
Characteristics
Voltage Rating (Uo/U)
300/500V
Temperature Rating
-5°C to +70°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Core Identification
2 core: Blue Brown
3 core: Blue Brown Green/Yellow
4 core: Brown Black Grey Green/Yellow
5 core: Brown Black Grey Blue Green/Yellow
7 core and above: number coded
Sheath Colour
Grey
Size, Weight & Electrical Specification
| No. of cores | Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
| mm2 | mm | kg/km | |
| 1 | 1.5 | 5.2 | 92 |
| 1 | 2.5 | 5.6 | 110 |
| 1 | 4 | 7.1 | 135 |
| 1 | 6 | 7.4 | 160 |
| 1 | 10 | 7.8 | 215 |
| 1 | 16 | 8.8 | 295 |
| 2 | 1.5 | 8.2 | 110 |
| 2 | 2.5 | 9 | 130 |
| 2 | 4 | 9.8 | 175 |
| 3 | 1.5 | 8.6 | 130 |
| 3 | 2.5 | 9.5 | 163 |
| 3 | 4 | 10.7 | 235 |
| 3 | 6 | 12.3 | 320 |
| 3 | 10 | 14.8 | 480 |
| 3 | 16 | 19.7 | 850 |
| 4 | 1.5 | 9.2 | 151 |
| 4 | 2.5 | 10.2 | 200 |
| 4 | 4 | 12.2 | 300 |
| 4 | 6 | 13.2 | 395 |
| 4 | 10 | 15.8 | 595 |
| 4 | 16 | 20 | 935 |
| 5 | 1.5 | 9.8 | 175 |
| 5 | 2.5 | 10.7 | 238 |
| 5 | 4 | 13.2 | 350 |
| 5 | 6 | 14.8 | 480 |
| 5 | 10 | 17.4 | 710 |
| 5 | 16 | 22 | 1140 |
| 7 | 1.5 | 10.2 | 210 |
| 7 | 2.5 | 12.2 | 300 |
